| OWNER’S MANUALASSEMBLY GUIDEMODEL: 

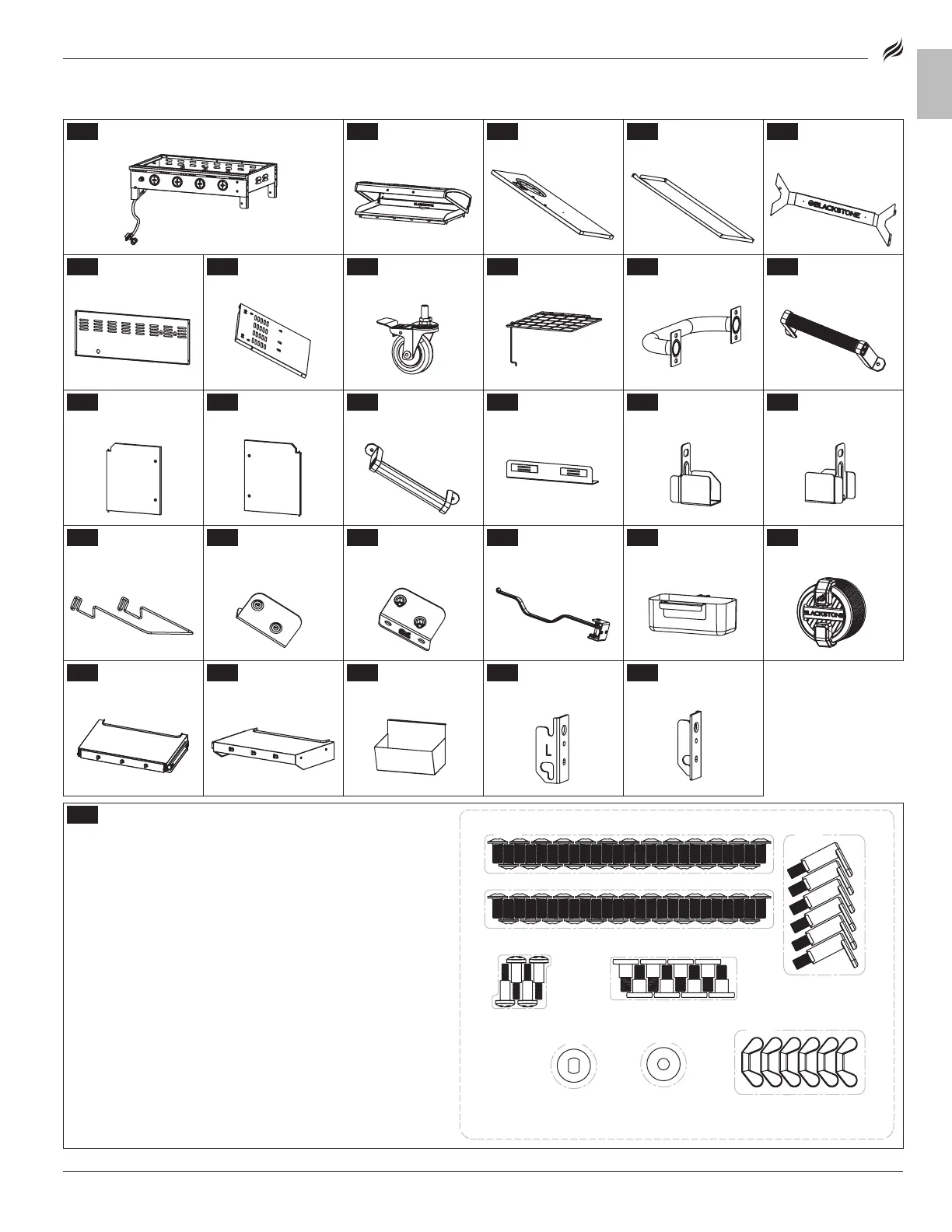

1
Body (1 piece)
2
Griddle top &
Hood (1 piece)
3
Cart base
(1 piece)
4
Upper cart panel
(1 piece)
5
Front logo panel
(1 piece)
6
Rear cart panel
(1 piece)
7
Cart side panels
(2 pieces)
8
Caster wheels
(4 pieces)
9
Inner shelf
(1 piece)
10
Side handle
(1 piece)
11
Hood handle
(1 piece)
12
Left door
(1 piece)
13
Right door
(1 piece)
14
Door handles
(2 pieces)
15
Door magnets
(2 pieces)
16
Left door bracket
(1 piece)
17
Right door
bracket (1 piece)
18
Garbage bag
holder (1 piece)
19
Garbage bag
holder bracket
(L) (1 piece)
20
Garbage bag
holder bracket
(R) (1 piece)
21
Paper towel
holder (1 piece)
22
Grease cup
(1 piece)
23
Control knobs
(4 pieces)
24
Left side shelf
(1 piece)
25
Right side shelf
(1 piece)
26
Shelf basket
(1 piece)
27
Side shelf
bracket (L) (2 pieces)
28
Side shelf
bracket (R) (2 pieces)
29
Hardware pack (1 piece)
a. M6x12 bolts (50 pieces)
b. M4x22 shoulder bolts (4 pieces)
c. M6 step bolts (8 pieces)
d. Side shelf hooks (6 pieces)
e. Slotted washers (6 pieces)
f. Steel washers (6 pieces)
g. Wing nuts (6 pieces)
[a.]
[b.]
[e.]
[f.]
[c.]
[g.]
[d.]

