| OWNER’S MANUALASSEMBLY GUIDEMODEL: 
1

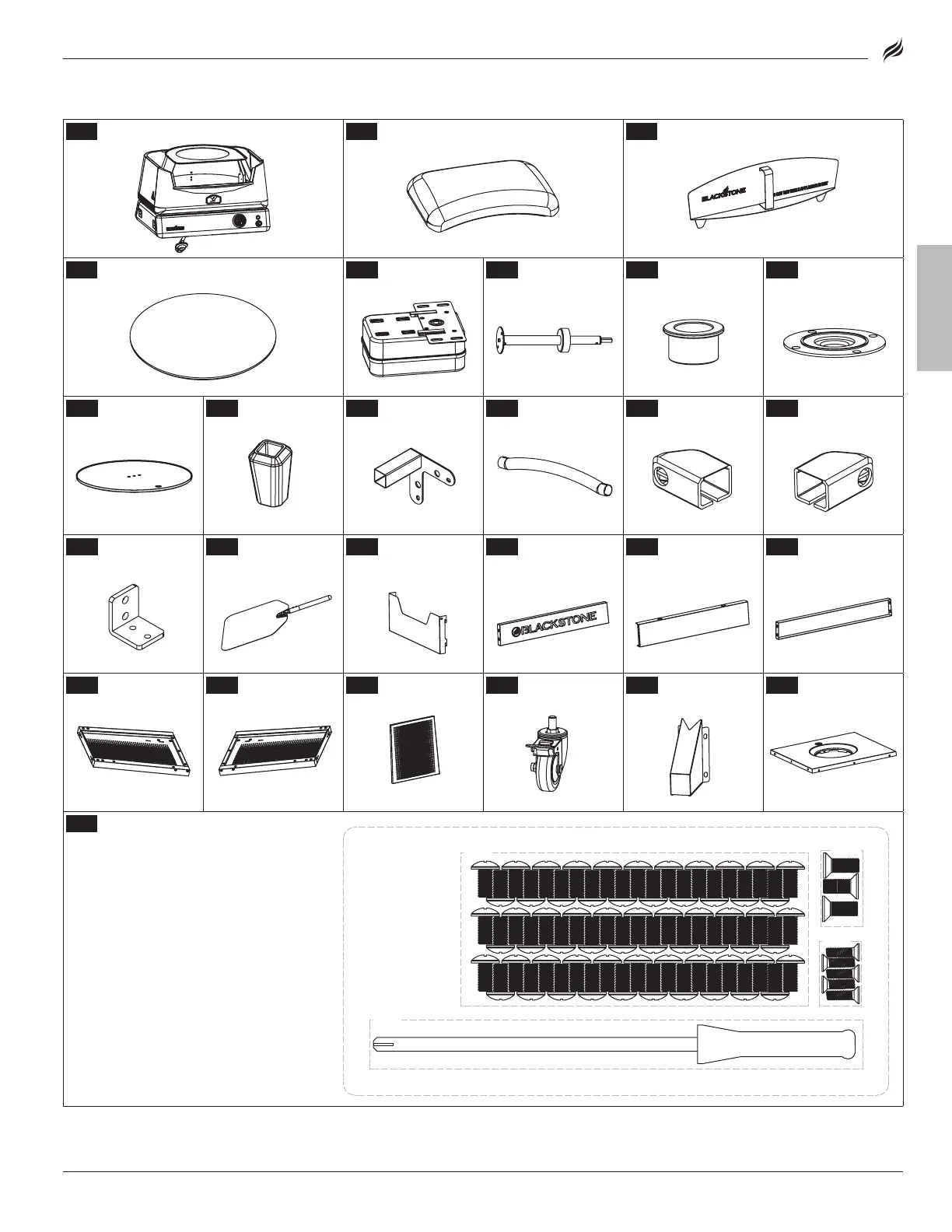

Oven body (1 piece)
2
Oven lid (1 piece)
3
Oven door (1 piece)
4
Pizza stones (2 pieces)
5
Motor (1 piece)
6
Rotating shaft
(1 piece)
7
Bronze sleeve
(1 piece)
8
Bearing bracket
(1 piece)
9
Turntable
(1 piece)
10
Feet (4 pieces)
11
Legs (4 pieces)
12
Side handles
(2 pieces)
13
Handle stando
(L) (2 pieces)
14
Handle stando
(R) (2 pieces)
15
Fixing plates
(4 pieces)
16
Pizza peel
(1 piece)
17
Pizza peel
holder (1 piece)
18
Front logo panel
(1 piece)
19
Orange back-
ground panel (1 piece)
20
Rear cart panel
(1 piece)
21
Left cart panel
(1 piece)
22
Right cart panel
(1 piece)
23
Front cart panel
(1 piece)
24
Caster wheels
(4 pieces)
25
Wheel brackets
(4 pieces)
26
Cart base
(1 piece)
27
Hardware pack (1 piece)
a. M6x12 screws (73 pieces)
b. M6x12 countersunk screws (3 pieces)
c. M4x12 screws (5 pieces)
d. Phillips head screwdriver (1 piece)
[a.]
[b.]
[c.]
[d.]

