| OWNER’S MANUALASSEMBLY GUIDEMODEL:

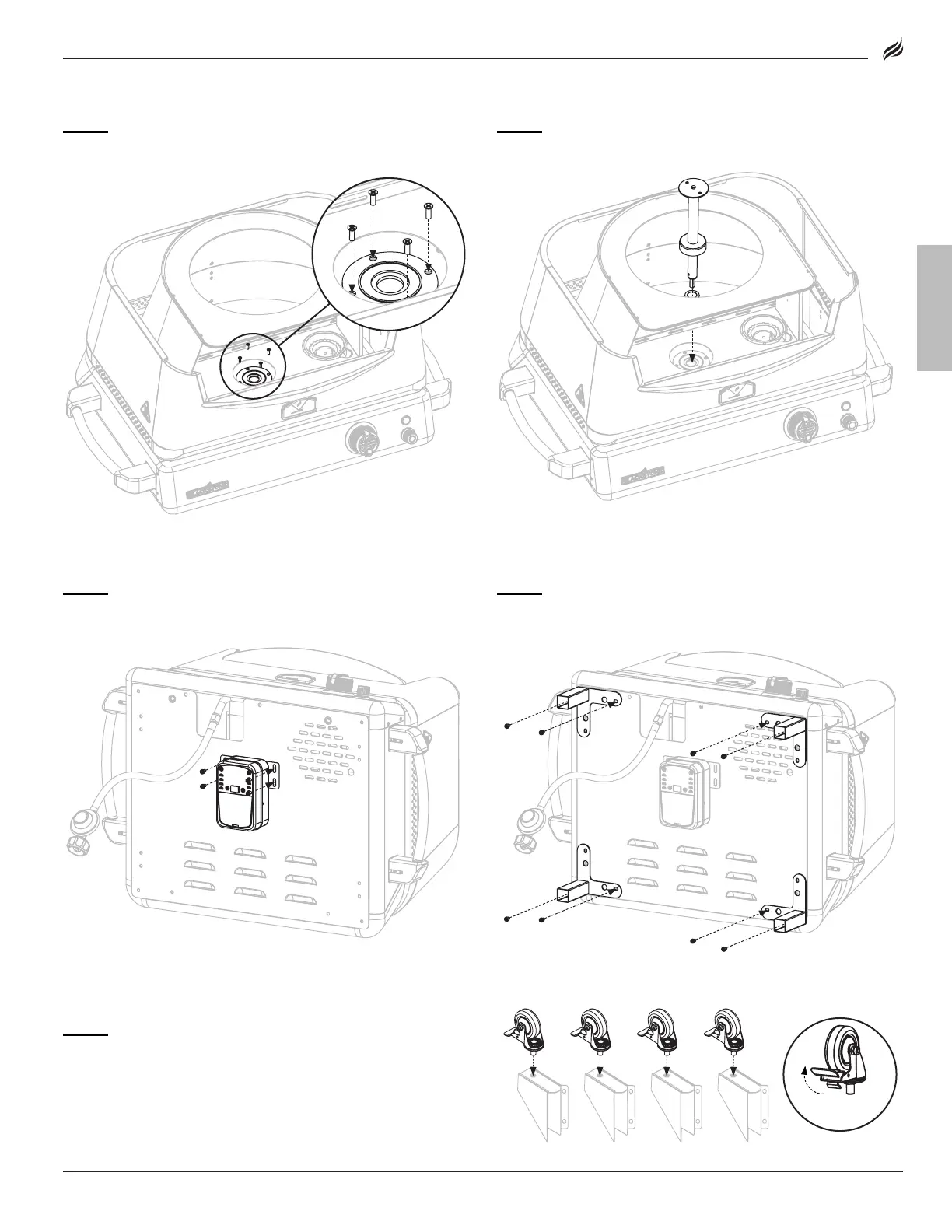

STEP 05
With the help of another person, insert the rotating shaft
into the motor. Use four (4) M6x12 screws [a.] to attach the motor to
the underside of the burner box.
STEP 06
Remove the feet from the legs. Use eight (8) M6x12 screws
[a.]to attach the four (4) legs to the underside of the burner box.
STEP 07
Screw the four (4) caster wheels into the bottom of the four
(4) wheel brackets. (Ensure that the wheels are locked.)
STEP 03
Use four (4) countersunk M4x12 screws [c.] to attach the
bearing bracket to the oven floor.
STEP 04
Insert the rotating shaft through the bronze sleeve and into
the bearing bracket.
[a.] × 4
[c.] × 4
[a.] × 8
To Next Page
