ASSEMBLY INSTRUCTIONS
Find a large, clean area to assemble your appliance.
Remove all packing material before assembling.
CAUTION
Sharp edges. Wear gloves while assembling.
NOT INCLUDED (OPTIONAL):
Two (2) D batteries
ELECTRIC REQUIREMENTS:
120V 60Hz
TOOLS NEEDED:
#3 Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
#3 Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to LPG cylinder must include collar to
protect LPG cylinder valve. protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
NOT INCLUDED:
One (1) AA battery (for ignition)
Optional four (4) AA batteries
(for the motor)
ASSEMBLY INSTRUCTIONS
Find a large, clean area to assemble your appliance.
Remove all packing material before assembling.
CAUTION
Sharp edges. Wear gloves while assembling.
NOT INCLUDED (OPTIONAL):
Two (2) D batteries
ELECTRIC REQUIREMENTS:
120V 60Hz
MODEL:

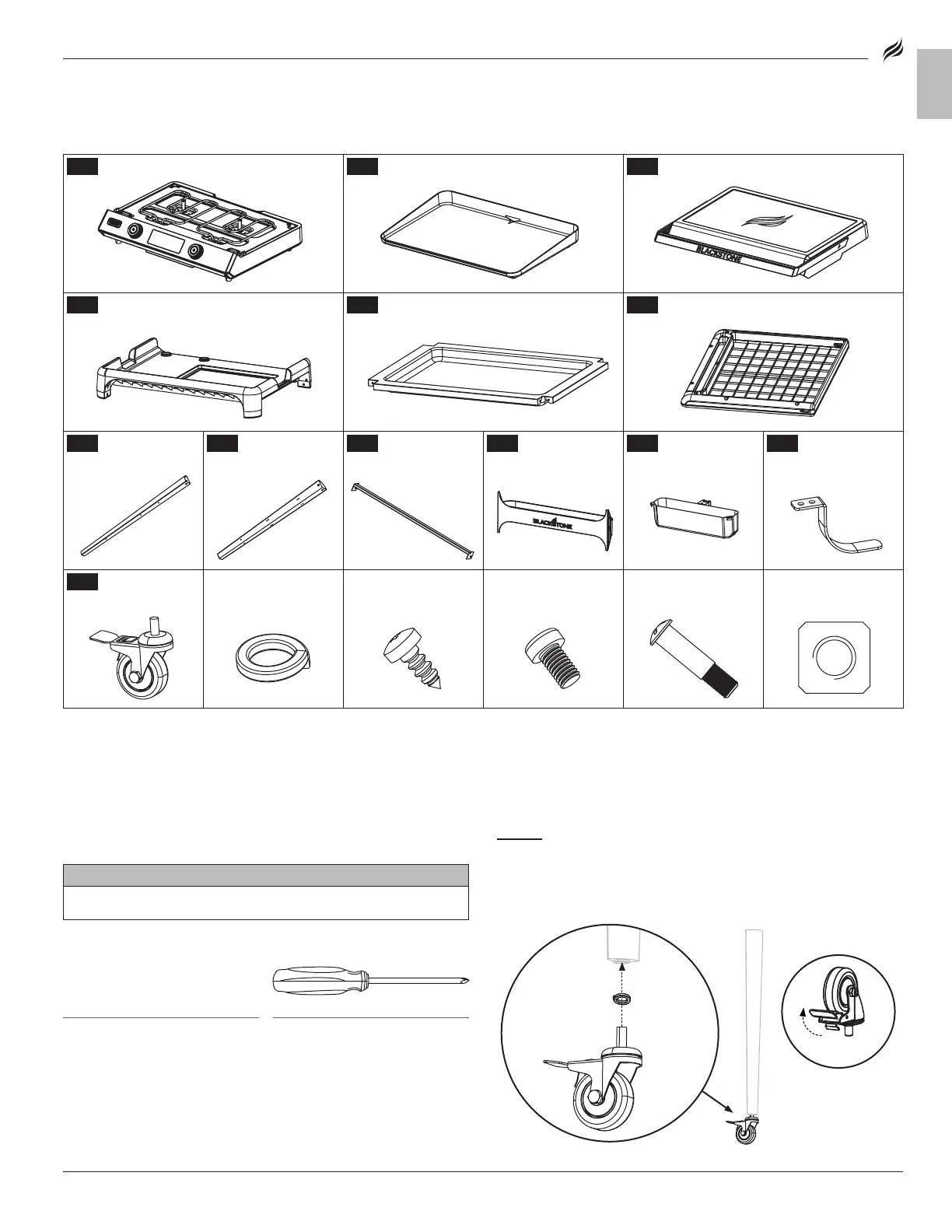

PARTS LIST
1
Griddle body (1 piece)
2
Griddle top (1 piece)
3
Hood assembly (1 piece)
4
Table top (1 piece)
5
Inner shelf (1 piece)
6
Side shelf (1 piece)
7
Front legs
(2 pieces)
8
Rear legs
(2 pieces)
9
Rear brace
(1 piece)
10
Accessory shelf
(1 piece)
11
Grease cup
(1 piece)
12
Power cord
brackets (2 pieces)
13
Caster wheels
(1 piece)
[a.] Spring washers
(4 pieces)
[b.] Self tapping
screws (4 pieces)
[c.] M6x12 screws
(20 pieces)
[d.] Step bolts
(2 pieces)
[e.] M6 nuts
(10 pieces)
STEP 01
Slide one (1) spring washer onto one (1) caster wheel. Screw
the caster wheel onto one (1) leg.
Repeat with the other three (3) caster wheels, (3) spring washers,
and three (3) legs. (Be sure the wheels are locked.)
To Next Page
