| OWNER’S MANUALASSEMBLY GUIDEMODEL: 

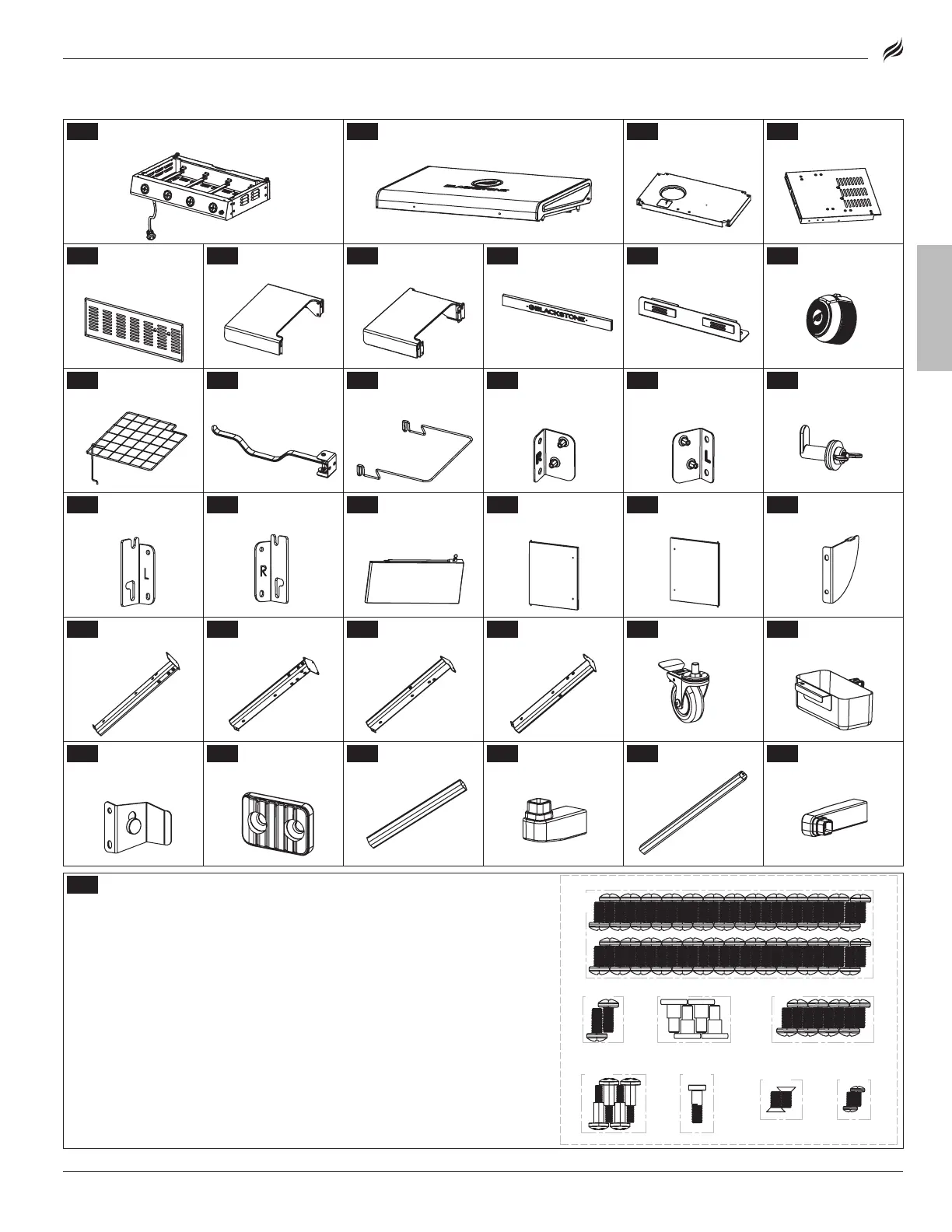

1
Griddle body (1 piece)
2
Griddle top & hood (1 piece)
3
Cart base
(1 piece)
4
Side panels
(2 pieces)
5
Rear panel
(1 piece)
6
Left side shelf
(1 piece)
7
Right side shelf
(1 piece)
8
Logo panel
(1 piece)
9
Door magnet
brackets (2 piece)
10
Control knobs
(4 pieces)
11
Inner shelf
(1 piece)
12
Paper towel
holder (1 piece)
13
Garbage bag
holder (1 piece)
14
Garbage bag
holder bracket
(R) (1 piece)
15
Garbage bag
holder bracket
(L) (1 piece)
16
Side shelf pegs
(6 pieces)
17
Side shelf
bracket (L) (1 piece)
18
Side shelf
bracket (R) (1 piece)
19
Side table
(1 piece)
20
Left cabinet door
(1 piece)
21
Right cabinet
door (1 piece)
22
Table stopping
bracket (1 piece)
23
Front right leg
(1 piece)
24
Front left leg
(1 piece)
25
Rear right leg
(1 piece)
26
Rear left leg
(1 piece)
27
Caster wheels
(4 piece)
28
Grease cup
(1 piece)
29
Z shaped
bracket (1 piece)
30
Plastic bumper
(1 piece)
31
Door handles
(2 pieces)
32
Door handle
standos (4 pieces)
33
Hood handle
(1 piece)
34
Hood handle
standos (2 pieces)
35
Hardware pack (1 piece)
a. M6x12 screw (52 pieces) (8 pieces)
b. M6x16 screw (2 pieces)
c. M6x16.5 shoulder bolt (4 pieces)
d. M4x22 shoulder bolt (4 pieces)
e. M6x19 shoulder bolt (1 piece)
f. M6x12 flat head screw (2 pieces)
g. M4x10 screw (2 pieces)
[a.]
[b.]
[d.]
[e.]
[f.]
[g.]
[c.] [a.]

