Page 4 For technical questions, please call 1-800-444-3353. Item 61632
SAFETY OPERATION MAINTENANCEASSEMBLY
SAFETY OPERATION MAINTENANCESETUP

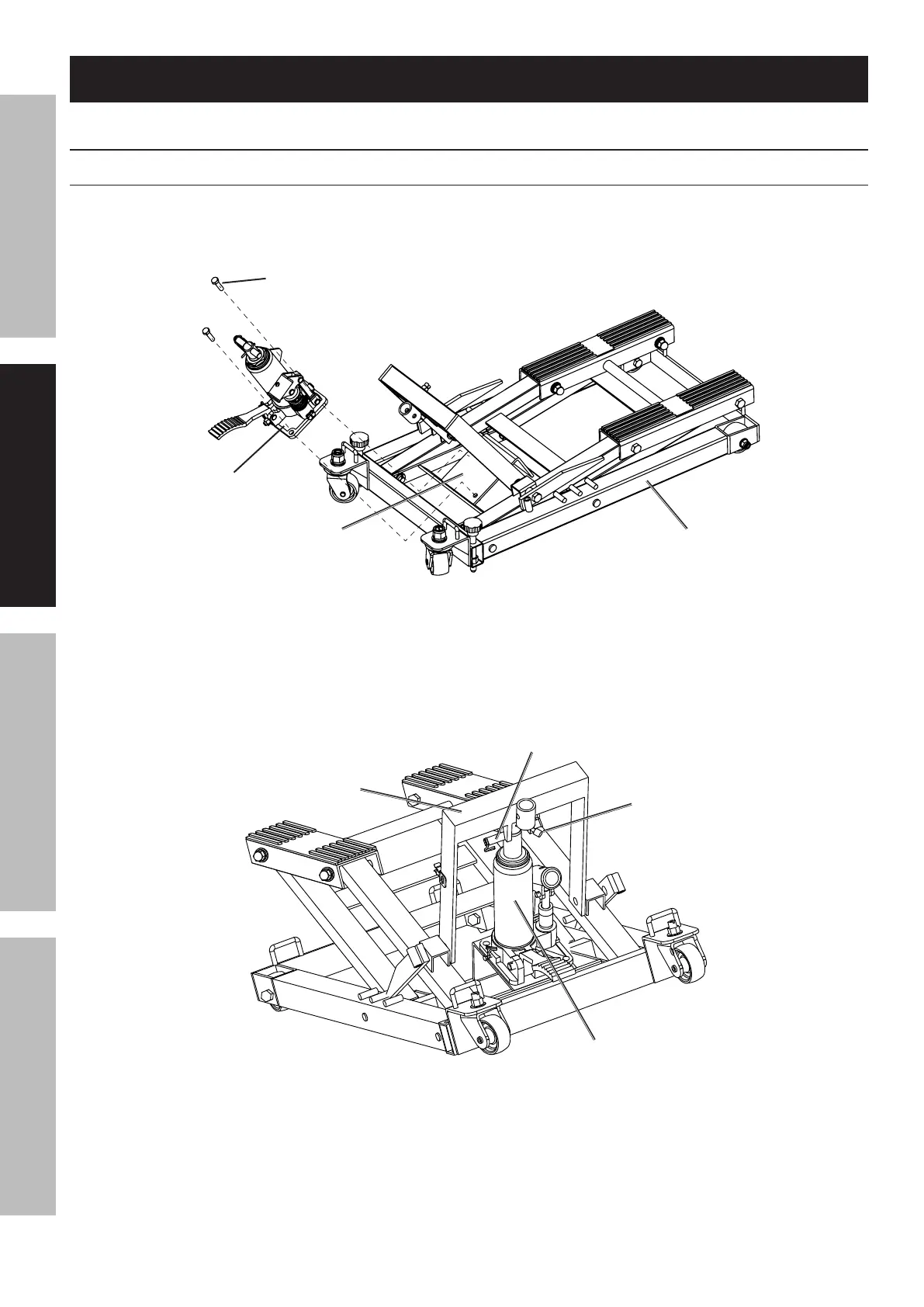

Setup – Before Use (continued)
Lift Set Up
Mounting the Bottle Jack
1. Secure the Jack Assembly (30) to the Jack
Mounting Plate portion of the Bottom Base (13)
with two Bolts (23). See Figure B.
Figure B
Bolt (23)
Bottom Base (13)
Bottle Jack (30)
Jack Mounting Plate
2. Lift the Lifting Frame (36) onto the Jack’s ram
and place the Pin (25), on the upper end of the
Jack’s arm, into the bracket on the Lifting Frame,
securing it with the Bolt (35). See Figure C.
Lifting Frame (36)
Pin (25)
Bolt (35)
Bottle Jack (30)
Figure C
