Page 3Rev. 061318
DiscountRamps.com • 1-888-651-3431

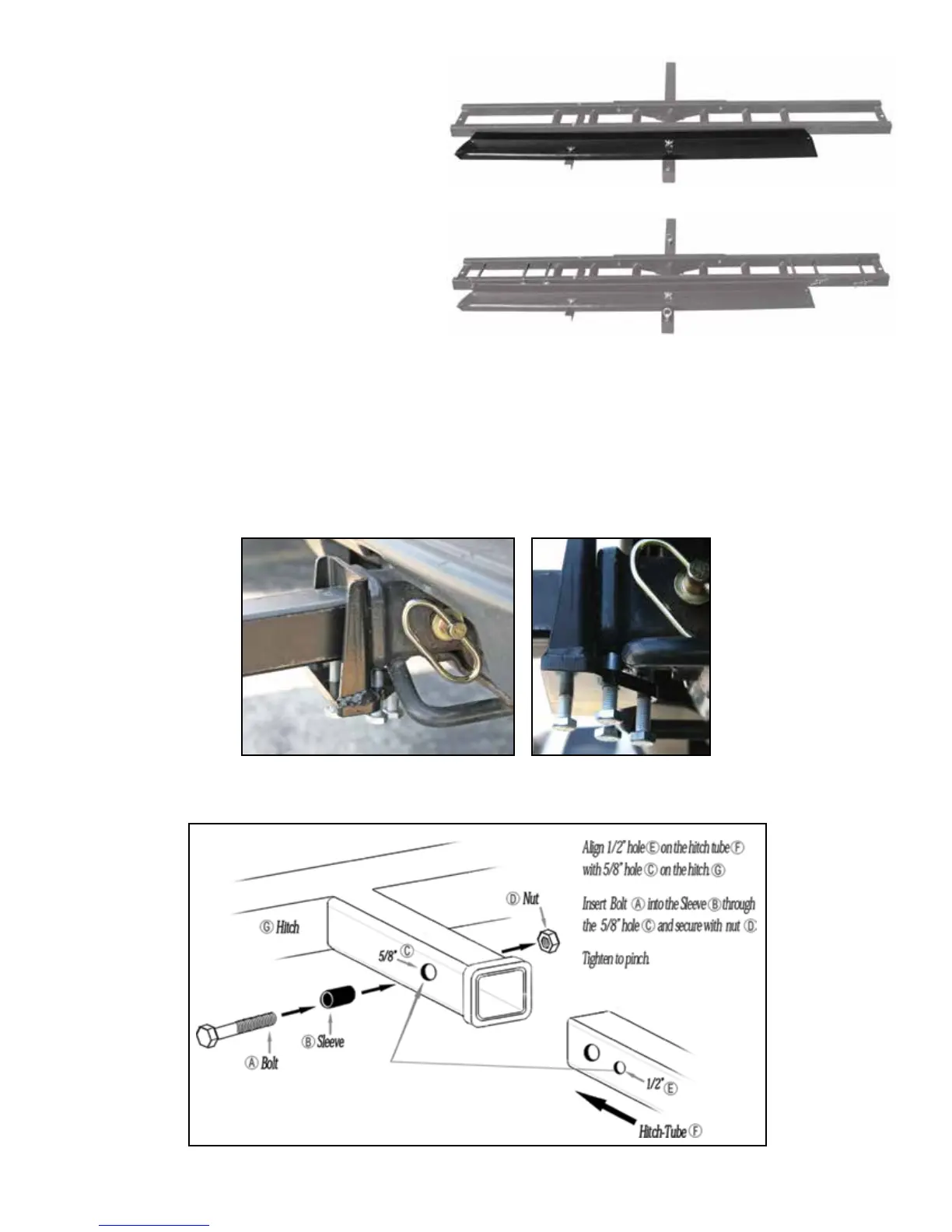

Step 4. Place the ramp (D) onto the main
hitch tube and ramp holder bracket and se-
cure it using three wing nuts (K). Tighten the
two bolts on the ramp holder bracket.
Step 5. Slide the long pins (P) into the sides
of the carrier track and secure them with
spring clips. Install the two eye bolts (J) into
the main hitch tube.
Step 6. From here there are two methods for stabilizing the carrier. Both methods may be used, but
at least one is recommended.
Option 1 - Hitch Pin and Anti-Tilt Bracket
Slide the anti-tilt bracket onto the main tube with the single bolt pointing toward the carrier track. Slide
the carrier main tube into the hitch receiver, lining up the larger 5/8” hole in the main tube with the
hitch pin hole. Insert the hitch pin and install the hitch pin clip. Slide the anti-tilt bracket forward toward
the vehicle hitch until it is ush against the hitch. Tighten the four bolts on the anti-tilt bracket.
Option 2 - Pinch Bolt and Anti-Tilt Bracket
Install the anti-tilt bracket as described in Option 1. See diagram below for pinch bolt installation.
