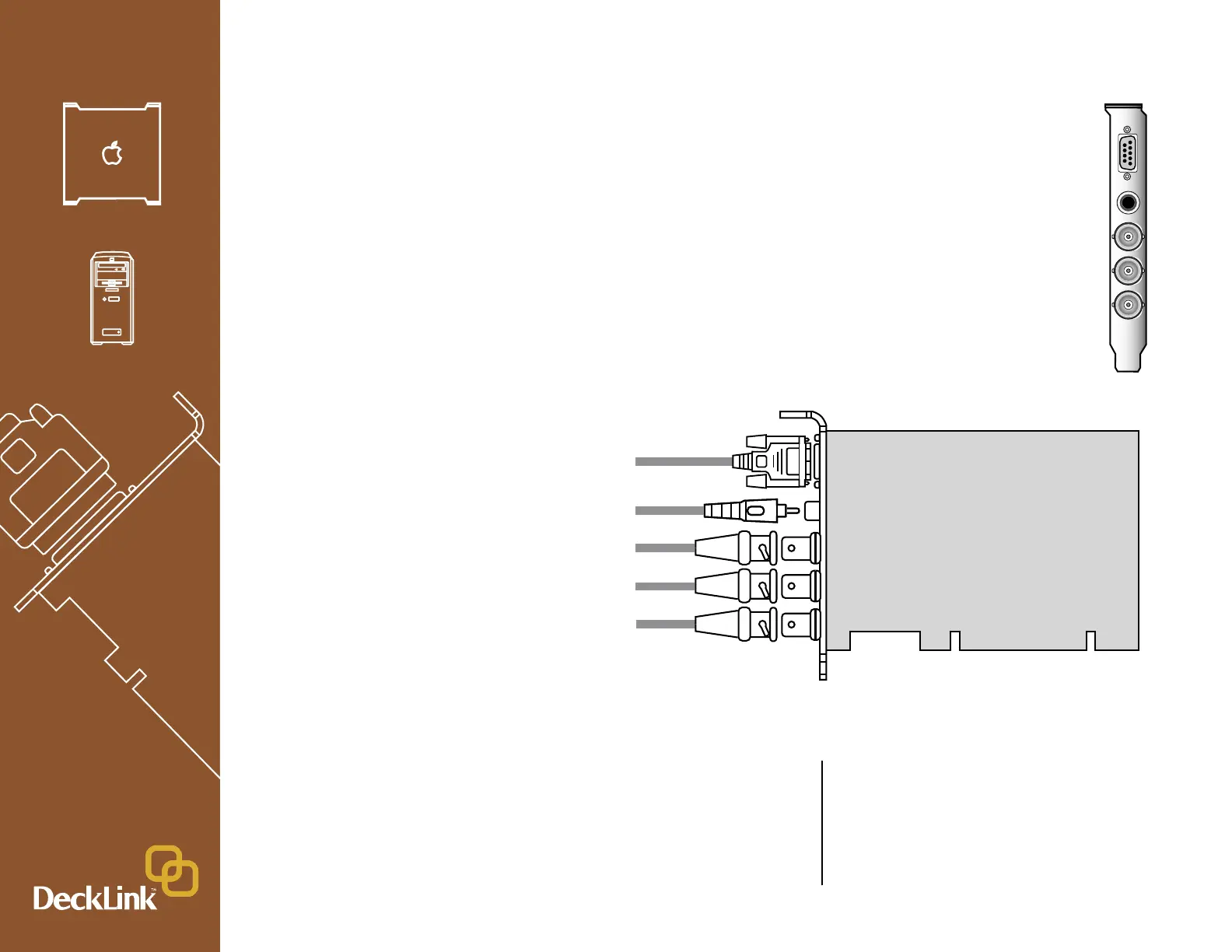

Connection Diagrams
DeckLink
™
SD-SDI 4:2:2 video and audio, capture and playback card
AES-S/PDIF
Output
Deck Control
RS-422
SD-SDI 4:2:2
Monitoring Output
SD-SDI 4:2:2
Output (to deck)
SD-SDI 4:2:2
Input (from deck)
This DeckLink model does not have genlock, so
you need to connect your deck to the Deck SDI
Output, which has stable output to sync the deck.
Set the deck to input or auto reference. Be sure to
set the “Black Video Output to Deck in Capture”
option to “On Digital SDI Outputs” in the DeckLink
control panel, when using this feature.

Blackmagicdesign DeckLink Series Specifications

General

Interface	PCIe
Bit Depth	8-bit, 10-bit, 12-bit (Varies by model)
Chroma Sampling	4:2:2, 4:4:4 (Varies by model)
Category	Video Capture & Playback Card
Video Inputs	SDI, HDMI (varies by model)
Video Outputs	SDI, HDMI (varies by model)
Audio Inputs	Embedded in SDI/HDMI, Analog (varies by model)
Audio Outputs	Embedded in SDI/HDMI, Analog (varies by model)
Supported Resolutions	4K (varies by model)
Operating System Support	macOS, Windows, Linux
