Blackmagicdesign DeckLink Series Connection Diagrams

Blackmagic Design - Leading the creative video revolution
™
Windows XP
™
Mac OS X
™
Connection Diagrams

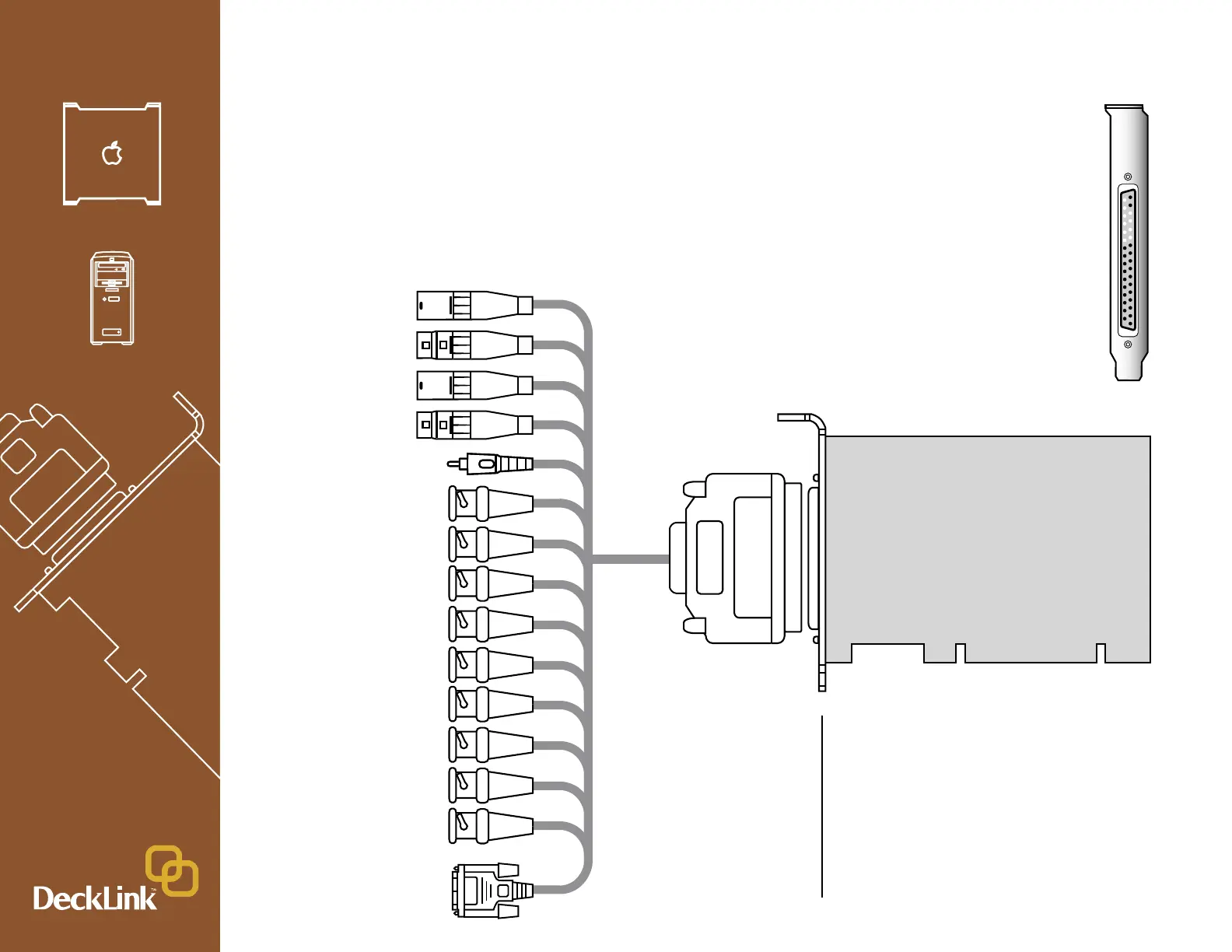

DeckLink Extreme
™
SD-SDI 4:2:2 and analog video, audio capture and playback card
Y Input
R-Y Output
B-Y Output
Y Output
(composite monitoring)
SD-SDI Input
SD-SDI Output
Genlock Input
Deck Control RS-422
DeckLink Extreme
7ft Breakout Cable
B-Y Input
R-Y Input
AES-S/PDIF Output
(monitoring)
(L) Audio Input
(balanced analog)
(L) Audio Output
(balanced analog)
(R) Audio Input
(balanced analog)
(R) Audio Output
(balanced analog)
When you don’t have genlock, you can output
stable black so DeckLink Extreme locks the deck.
This output is always stable and allows the deck to
be set to input reference or auto reference. If you
are using a digital deck, be sure to set the “Black
Video Output to Deck in Capture” option to “On
Digital SDI Outputs” in the DeckLink control panel,
when using this feature. If you are using an analog
deck, be sure to set the “Black Video Output to
Deck in Capture” option to “On Analog Outputs”.

Blackmagicdesign DeckLink Series Specifications

General

Interface	PCIe
Bit Depth	8-bit, 10-bit, 12-bit (Varies by model)
Chroma Sampling	4:2:2, 4:4:4 (Varies by model)
Category	Video Capture & Playback Card
Video Inputs	SDI, HDMI (varies by model)
Video Outputs	SDI, HDMI (varies by model)
Audio Inputs	Embedded in SDI/HDMI, Analog (varies by model)
Audio Outputs	Embedded in SDI/HDMI, Analog (varies by model)
Supported Resolutions	4K (varies by model)
Operating System Support	macOS, Windows, Linux
