Connection Diagrams
DeckLink HD Pro
™
HD/SD-SDI 4:4:4/4:2:2 video, audio capture and playback card with analog monitoring
(Dual Link Mode 4:4:4)
When you don’t have genlock, you can output
stable black, so DeckLink HD Pro locks the deck.
This output is always stable and allows the deck to
be set to input reference or auto reference. Be sure
to set the “Black Video Output to Deck in Capture”
option to “On Digital SDI Outputs” in the DeckLink
control panel, when using this feature.
Wordclock
Output
AES-S/PDIF
Output
AES-S/PDIF
Input
R-Y/R
Output
B-Y/B
Output
Y/G
Output
Genlock/
Tri-Sync
REF Input
Deck
Control
RS-422
HD/SD-SDI 4:2:2
Monitoring Output
HD/SD-SDI 4:2:2
Output (to deck)
HD-SDI Input
4:4:4 Ch 2
HD/SD-SDI 4:2:2
Input (from deck)

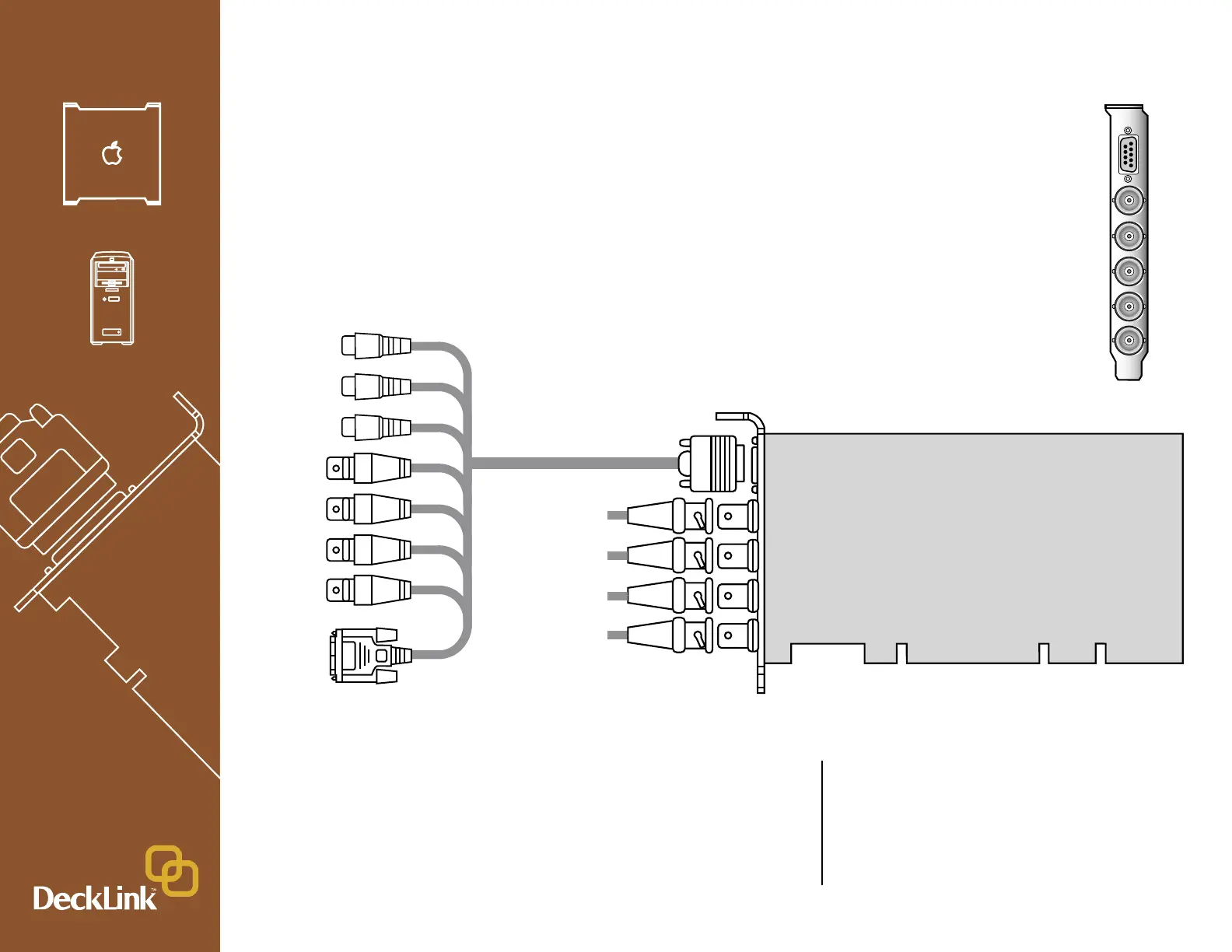

DeckLink HD Pro
Break-out Cable
Dual Link HD-SDI 4:4:4
