Blade ST-10+ - Control Layout; Front Control Layout

EN
2
Specifi cations

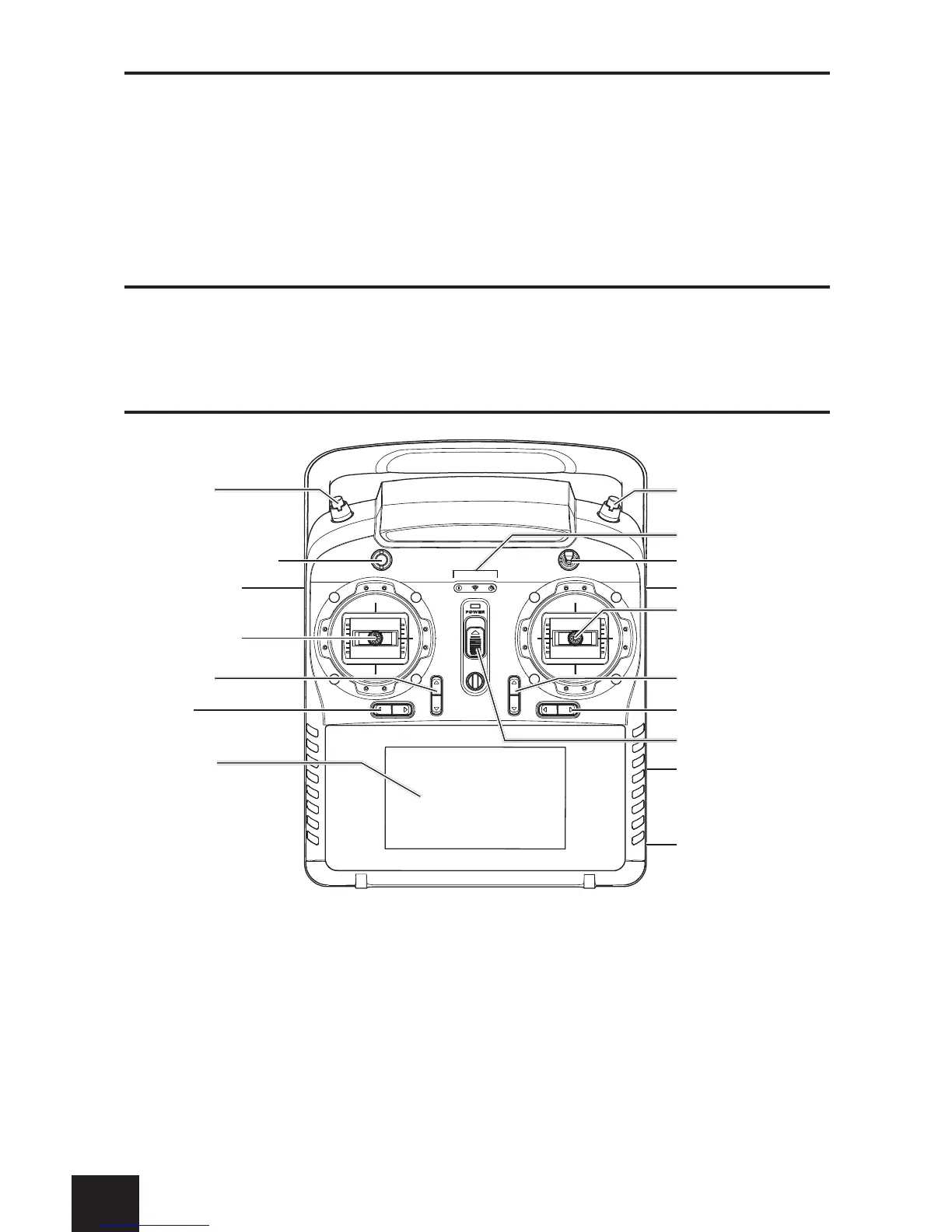

Control Layout
Motor Start/Stop Button
Video Start/Stop ButtonPhoto Button
Flight Mode Switch
LED Indicators
Pitch/Roll Control
Roll TrimYaw Trim
Video Display
Pitch TrimThrottle Trim
Power Switch
Throttle (Altitude)/
Yaw Control
Camera Tilt Slider
USB Port
Audio Port
Airspeed Slider
Front
Number of Channels: 10
RC Band: 2.4GHz
RC Modulation: QPSK
Video Downlink Band: 5.1GHz and 5.8GHz
Telemetry/OSD: Yes
Micro SD Card Compatible: Yes
LCD Screen Size: 4.5”
Touchscreen: Yes
Battery: 5200mAh 1S 3.6V 1C Li-Ion Battery
