Blagdon POWERSAFE 2 - Getting to Know Your Powersafe Switchbox; Parts Description; Technical Specification

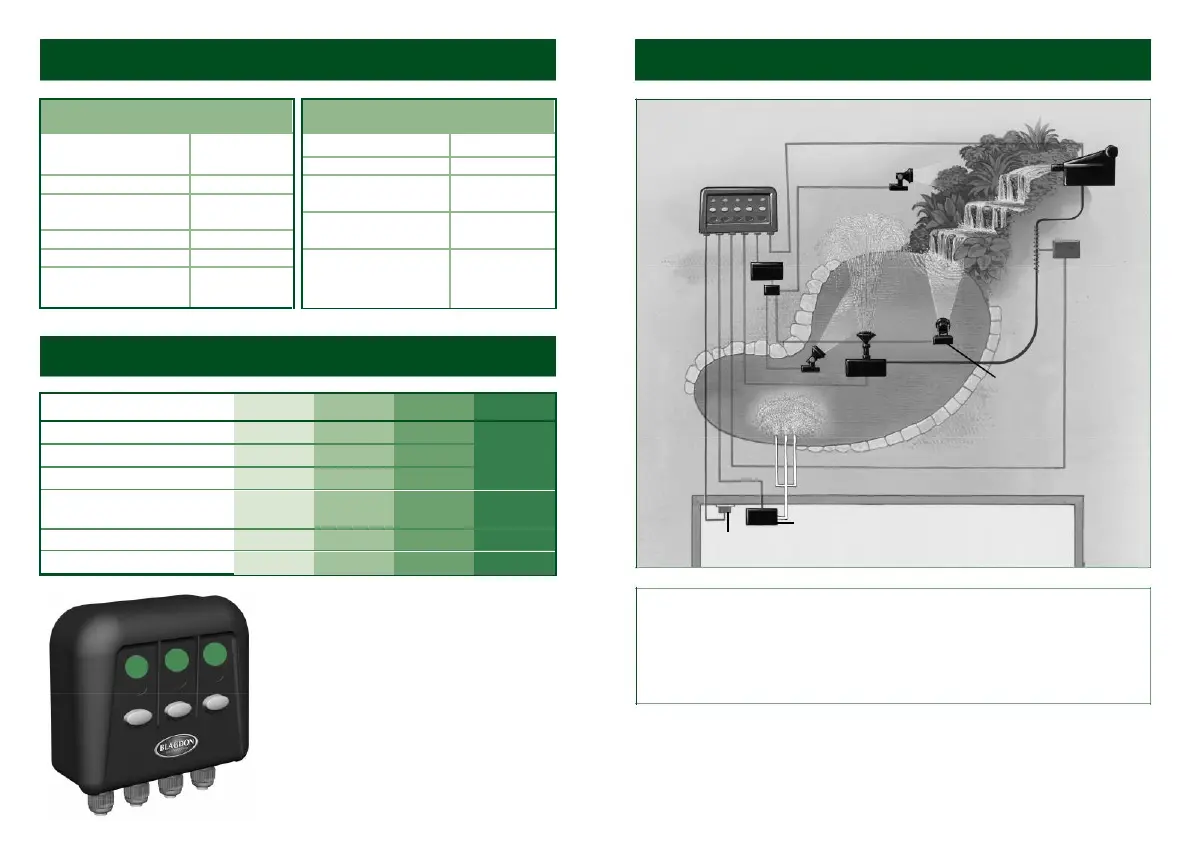

GETTING TO KNOW YOUR POWERSAFE SWITCHBOX
INSTALLATION
Part Description
Spare Code
Cover locating screws
(set of four)
1040372
Fixing bracket
1040389
Fixing bracket screws
and plugs set
1040396
2/3 switch cover seal
1040402
4/5 switch cover seal
1040419
Cable gland rubber
seal and plug
1040426
Part Description
Spare Code
5 AMP fuse
1040433
1.5 AMP fuse
1040440
Cable clamp
and screws
1040457
Central PCB locating
screw
1040464
Rubber switch
cover button
1040471
5 WAY
POWERSAFE GARDEN
SWITCHBOX LIGHTING
UVC FILTER
HOSE
ELECTRONIC
BLANKET WEED
CONTROLLER
TECHNICAL SPECIFICATION CHART
SWITCHBOX
2 WAY
3 WAY
4 WAY
5 WAY
Voltage
220/240V
220/240V
220/240V
220/240V
Hertz
50/60
50/60
50/60
50/60
Safety rating
_
_
_
_
IP56 CC
IP56 CC
IP56CC
IP56 CC
Maximum cable size
External diameter (3 core 1.5 flex)
9mm
9mm
9mm
9mm
Maximum power output 1
1000W
1000W
1000W
1000W
Maximum power outputs 2-5
1x300W
2x300W
3x300W
4x300W
POND PUMP
FOR WATERFALLS,
FILTERS AND
FOUNTAINS
MAINS
POWER
SUPPLY
AIR PUMP
RCD SOCKET OR PLUG
(HOUSE, SHED or GARAGE)
INPOOL
LIGHTING
Example shown is 5 way
Powersafe Switchbox
Power status indicator lights
NO LIGHT
Switch on or off. Fuse has blown, no power.
RED LIGHT
Switch off, power supply on standby.
GREEN LIGHT
Switch on, power supply active.
IMPORTANT: This outlet box is intended to be used with either a weatherproof cable
connector or permanently connected to the fixed wiring of the mains system other than by
means of a plug and socket. A Residual Current Device (RCD), also known as Residual
Current Circuit Breaker (RCCB), having a tripping current not exceeding 30mA must be
installed in the supply circuit.
This unit should be connected to a mains supply that is fused with a 13 amp fuse or 15 amp
circuit breaker.
IMPORTANT: Do not drill or modify the product in any way! Do not use the product if it is
damaged.
