Switch Box Mounting
The Switch box should be situated in a
site that is protected from:
• Flooding
• Extreme heat
• Physical damage
• Tampering by adults children or pets
Installation step by step
Remove the Switch box from the mounting bracket.
Unscrew the four screws at the back of the box to remove the Switch box cover.
Place in a safe location.
INSTALLATION
4
IMPORTANT: Please note all electrical work on garden lighting and power installations must
comply with part P of the building regulations. Failure to comply is a criminal offence. If the
installation of this product is not carried out by a competent electrician who is registered under the
Part P self-certification scheme then you must notify the local building control department before
work begins. For further information and guidance on this matter and other electrical installations
in your home that might be covered by the relevant legislation, contact your local authorities
building control department.

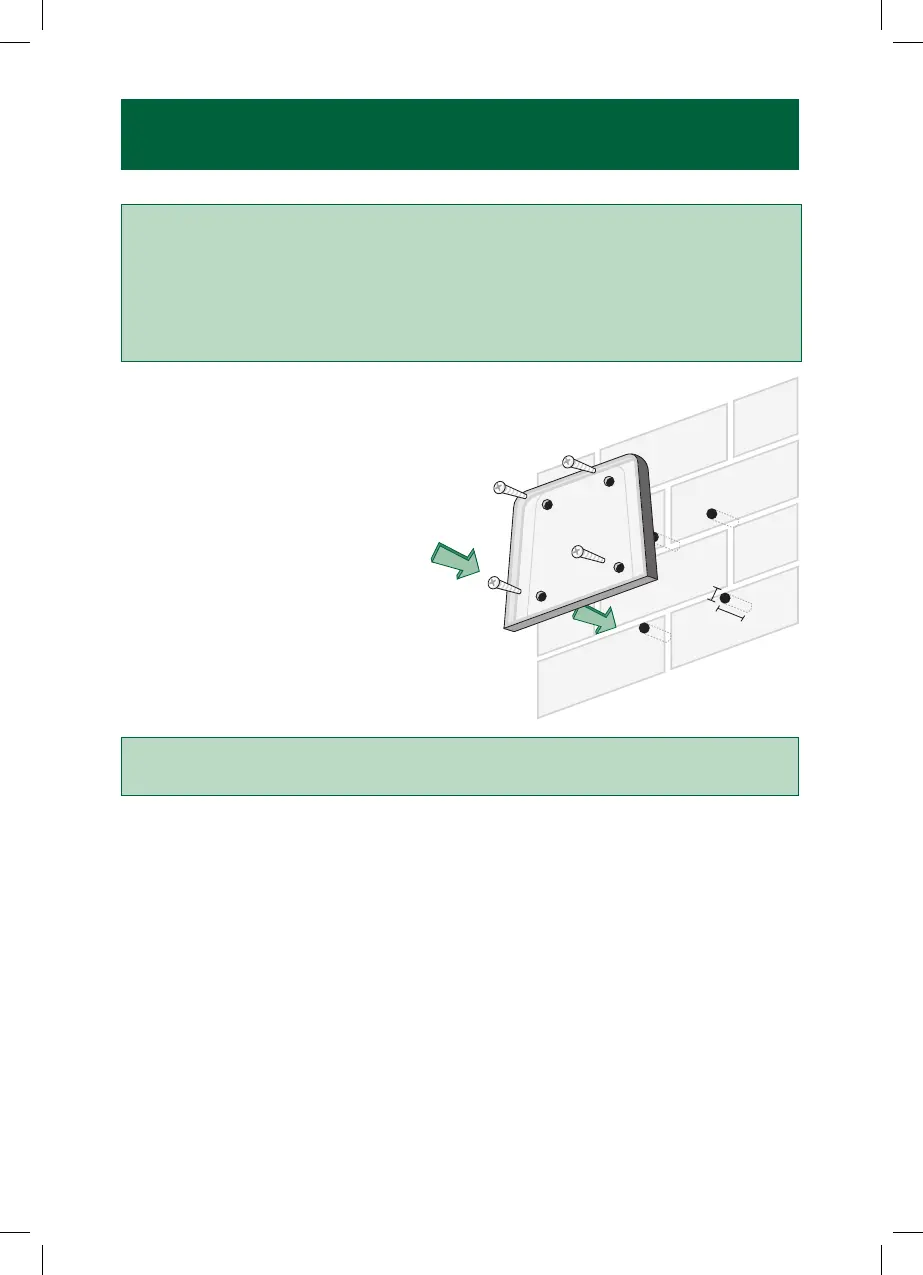

FIXING PLATE
POST OR WALL
HOLE FOR WALL PLUG WALL
6mm
28mm
IMPORTANT: Before removing the cover for wiring or adding additional appliances to the Switch
box always ensure that the mains power supply is off and isolated.
To Next Page
