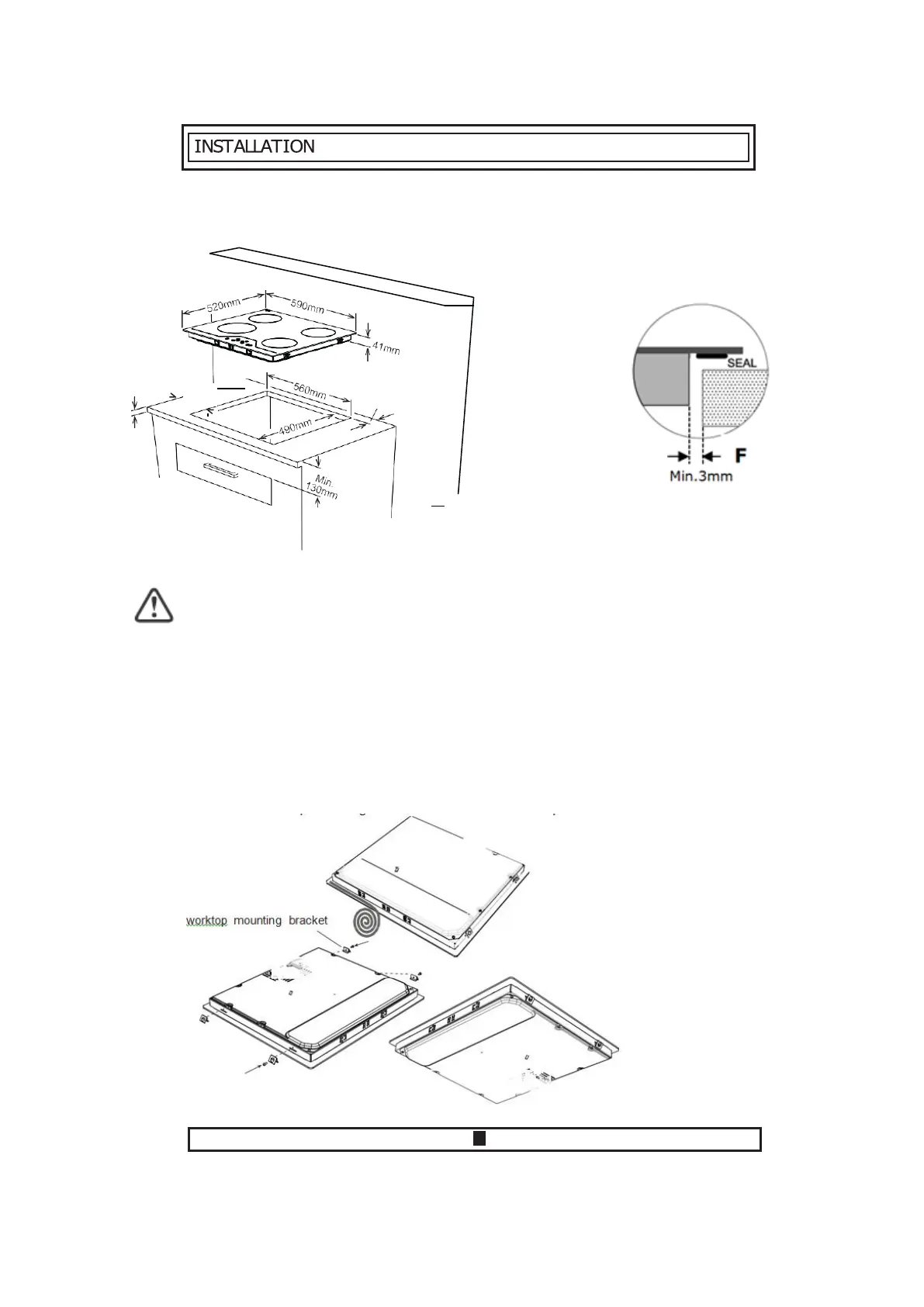

Create an opening with the dimensions shown in the picture below.
Note: The safety distance between the sides of the hob and the inner surfaces of
the worktop should be at least 3mm. The minimum distance between the hob and
the cupboard above the hob should be at least 650 mm.
Apply the one-sided self-adhesive sealing tape supplied all the way round the
lower edge of the cooking surface along the outer edge of the glass ceramic
panel. Do not stretch it.
Screw the 4 worktop mounting brackets on the side walls of product.
