INSTRUCTIONS FOR THE INSTALLER

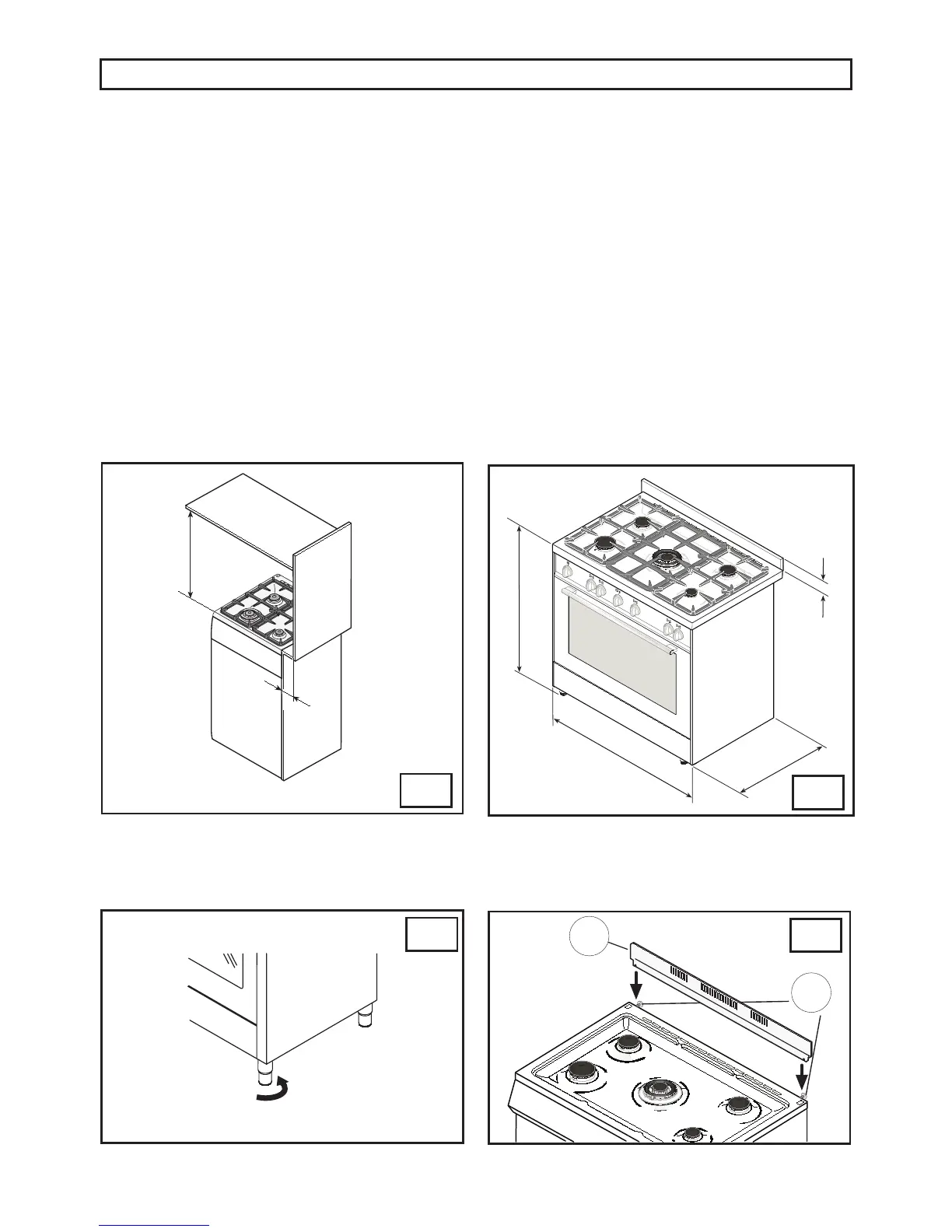

POSITION (g. A)
The appliance should be positioned in good
light and free from draughts. Any adjoining wall
surface situated within 200 mm from the edge
of any cooktop burner must be a suitable non-
combustible material for a height of 150 mm for
the entire length of the cooktop. Any combustible
construction above the cooktop must be at least
750 mm above the top of the burner and no
construction shall be within 450 mm above the top
of the burner.
Where a combustible surface adjacent to the
cooker is less than 200 mm from the nearest
burner it may be protected by a non-combustible
protective layer in accordance with AS5601. The
protection must ensure the surface temperature of
the combustible surface does not exceed 65º C
above ambient.
LEVELLING THE COOKER
• Adjustable feet, This model has very slight
adjustable feet which can go from a heght of
900 - 920mm It has full plinths on both sides.
• Backguard. The cookers which are equipped
with this accessory, leave the factory with this
part inserted inside the packaging. In order
to install the backguard, it is necessary to
loosen the screws positioned on the back of
the cooktop and then to x the backgaurd as
indicated in gure 16.
OVERALL DIMENSIONS (g. 14)
900 - 920H x 900W x 600D mm
It is essential to check dimensions of physical
product when measuring for installation and
before doing any cut outs.
