INSTRUCTIONS FOR THE INSTALLER
MAINTENANCE
Prior to any maintenance work or changing
parts, disconnect the appliance from
the gas and electricity power sources.
Servicing must only be carried out by
authorised personnel.
REPLACING THE TAPS
Proceed in the following way when replacing a
tap
• Remove pan supports, burner heads.

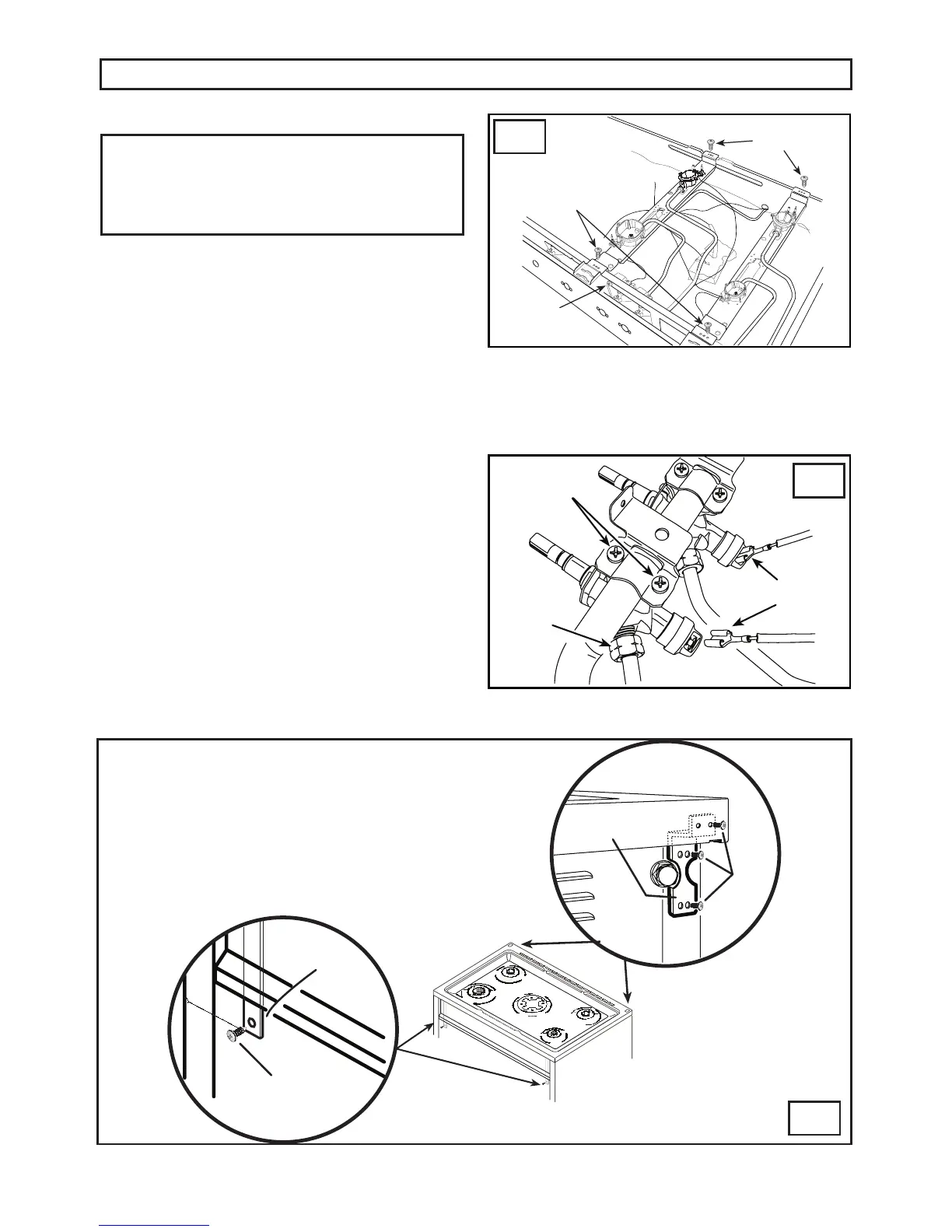

• Unscrew the burner xing screws (g. 22).
(four for ultrarapid burner and two for the other
burners)
• Pull out the knobs.
• Remove the cooktop, unscrewing frontal and
rear xing screws (Vs) (g. 22) which lock the
cooktop at the supports (S).
• Unscrew the nuts (D) of the gas aluminium
pipes and pull out the thermocouple quick
connectors (F) (g. 24).
• Unscrew the screws (Vt) (g. 23) which lock the
crosspieces.l
• Unscrew the screws (Vb) (g. 23) which unite
the bridles of the taps to the front frame.
• Make to slip the ramp toward the back part and
unscrew the screws (Vb) (g. 24) in order to free
the taps.
• Change seal each time a tap or a thermostat
is replaced. This will ensure perfect retention
between the tap or a thermostat and part.
• Reassemble all the parts following the same
procedure but in the reverse order.
