ELECTRICAL CONNECTION
The appliances are provided with a three-pole feeding cable and work with alterna-
te voltage indicated on the “rating plate of the product“ reported at the end of the
instruction manual and on the product. The grounding conductor of the cable is
marked with the colours yellow/green.
CONNECTION OF THE FEEDING CABLE TO THE MAINS
Connect the feeding cable to a plug suitable for the load indicated on the rating plate
of the product. In case of a direct connection to the mains (cable without plug), it is
necessary to insert a suitable omnipolar switch before the appliance, with minimum
opening between contacts of 3 mm (the grounding wire should not be interrupted by
the switch).
Before connecting to the mains, make sure that:
• the electrical counter, the safety valve, the feeding line and the socket are ade-
quate to withstand the maximum load required (see rating plate).
• the supply system is regularly grounded, according to the
regulations in force.
• the socket or the omnipolar switch can easily be reached
after the installation of the oven
• after carrying out the connection to the mains, check that the
supplying cable does not come into contact with parts
subject to heating.
• never use reductions, shunts, adaptors which can cause
overheating or burning.
The manufacturer is not liable for any direct or indirect damage caused by
faulty installation or connection. It is therefore necessary that all installation
and connection operations are carried out by qualified personnel complying
with all applicable laws and regulations.

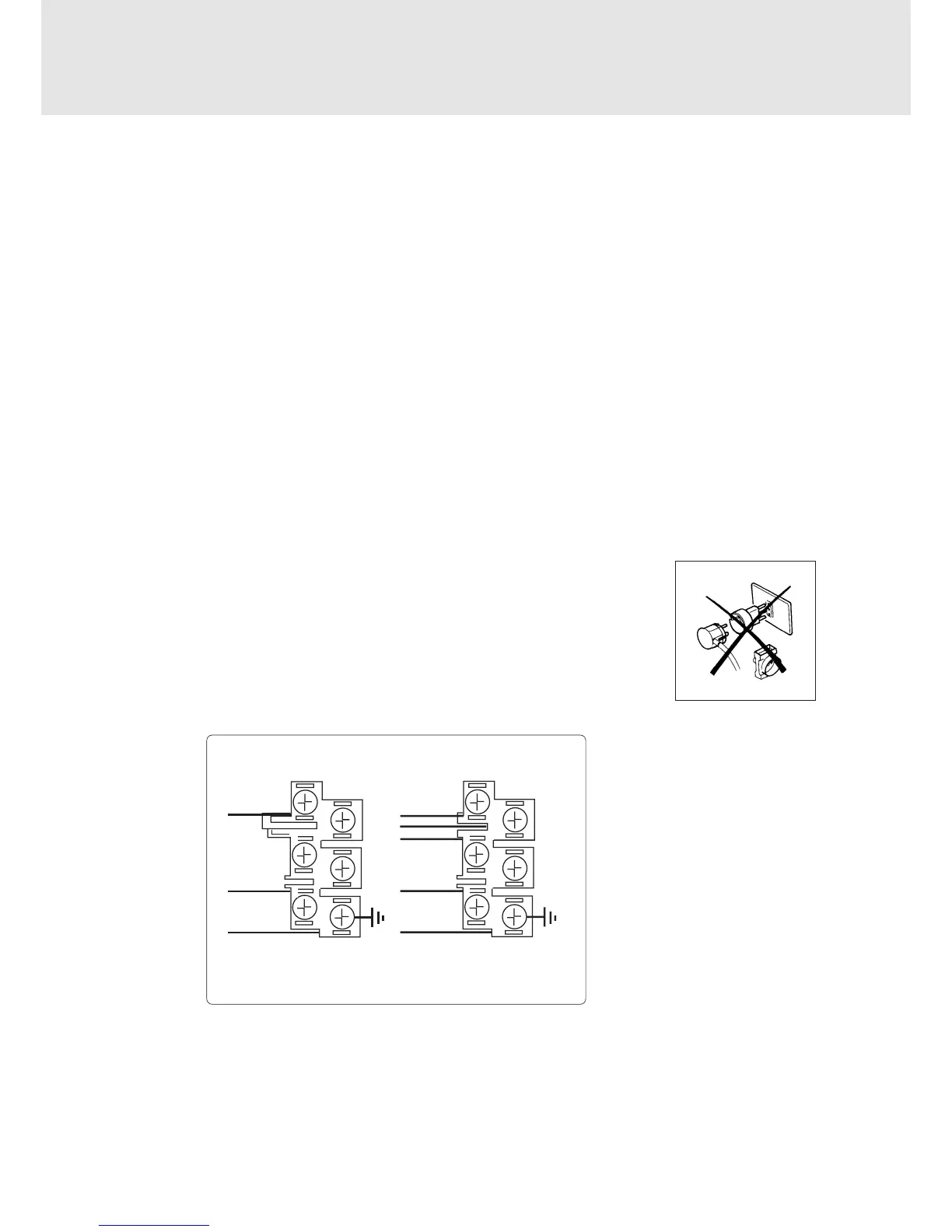

Instructions for Installation
3x4 mm
2
N
L
2
4
5
3
1
N
L
2
4
5
3
1
5x2,5 mm
2
230V or 220-240V 400V 3N or 380-415V 3N
H05RR-F
H05V2V2-F
