EQM 100 / EQM 101 / EQM 102 Edge-QAM
Seite 8 (14) www.blankom-digital.de Rev. B

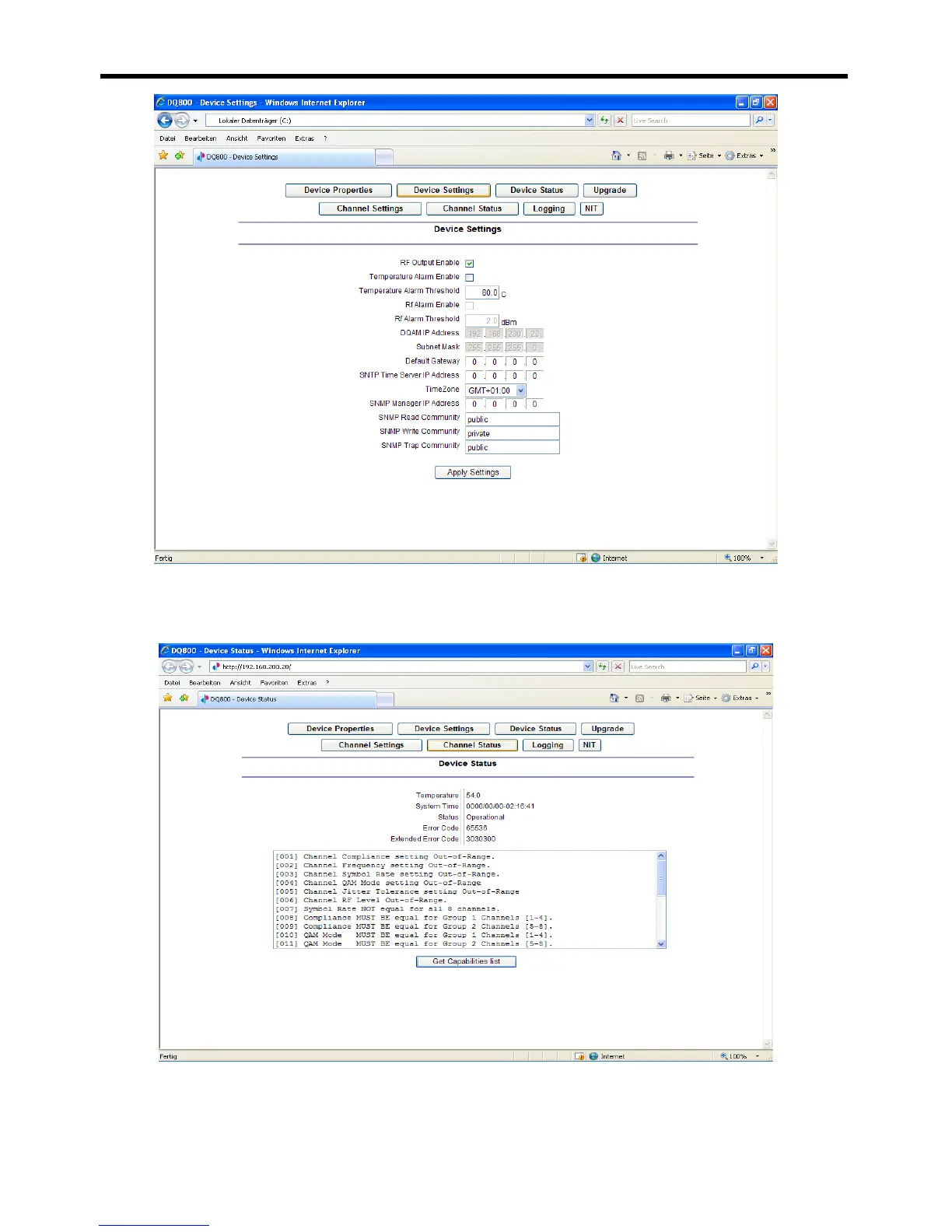

Fig. 5: Device Settings
The Device Settings menu shows parameters that are common for all QAM channels.
Fig. 6: Device Status
The Device Status menu gives information about status parameters of the device.
