22 23
NOTE
• Do not lose the lock washers!

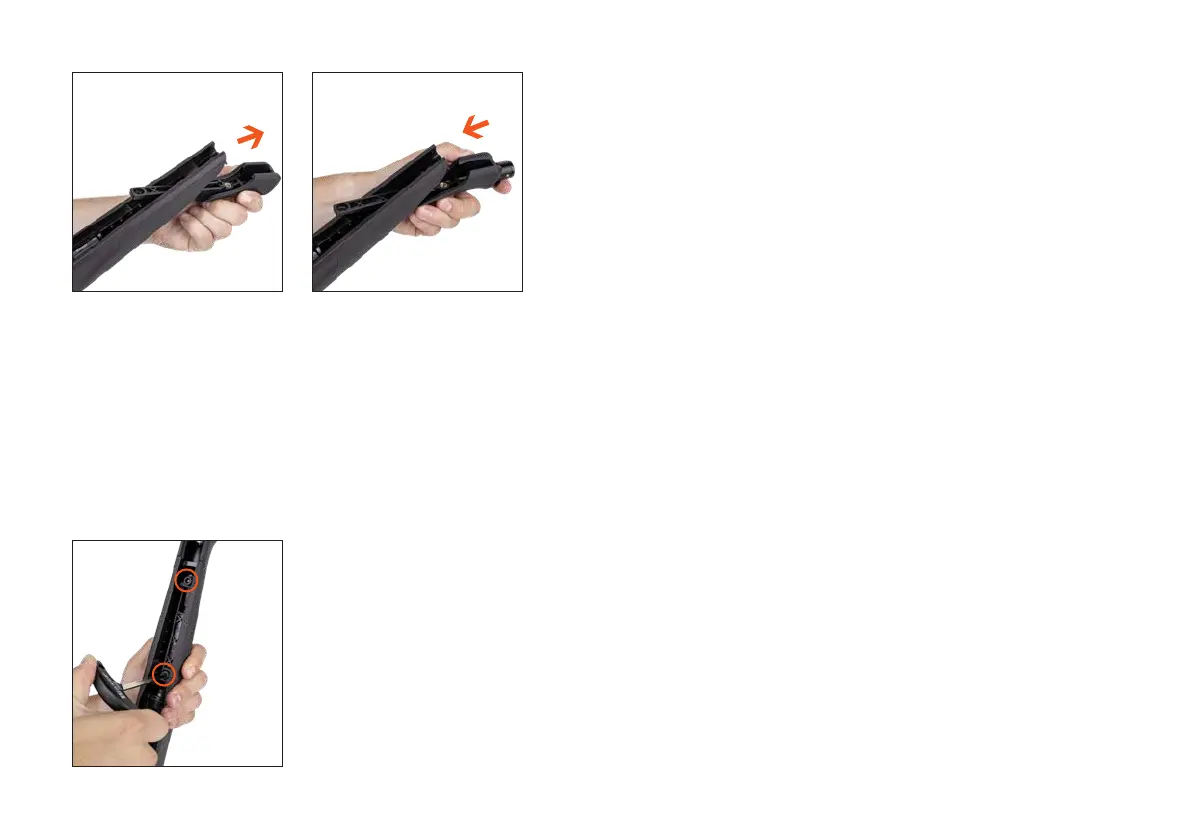

• Fold down the forearm tip and pull it out to the front
• Insert the Blaser Ultimate BiPod forearm tip from the front
and fold it upwards
• Insert both forearm tip
mounting screws with lock
washers and tighten them
hand-tight
• Insert the barrel (see R8
instruction manual)
NOTE
To ensure that the Blaser Ultimate BiPod functions correctly,
please note the following points:
• The Blaser Ultimate BiPod forearm tip must be correctly
connected and screwed together with the stock
• The barrel channel must be clean
• The support surface in the area of the Blaser Ultimate BiPod
forearm tip must be clean
• Excess oil or gun grease between the barrel and the receiver
will negatively affect the precision of the rifle
