Blaupunkt 23/157I-GB-3B-HBCDUP - TV Connections; Port Identification; Composite AV;Video Connection

13
13

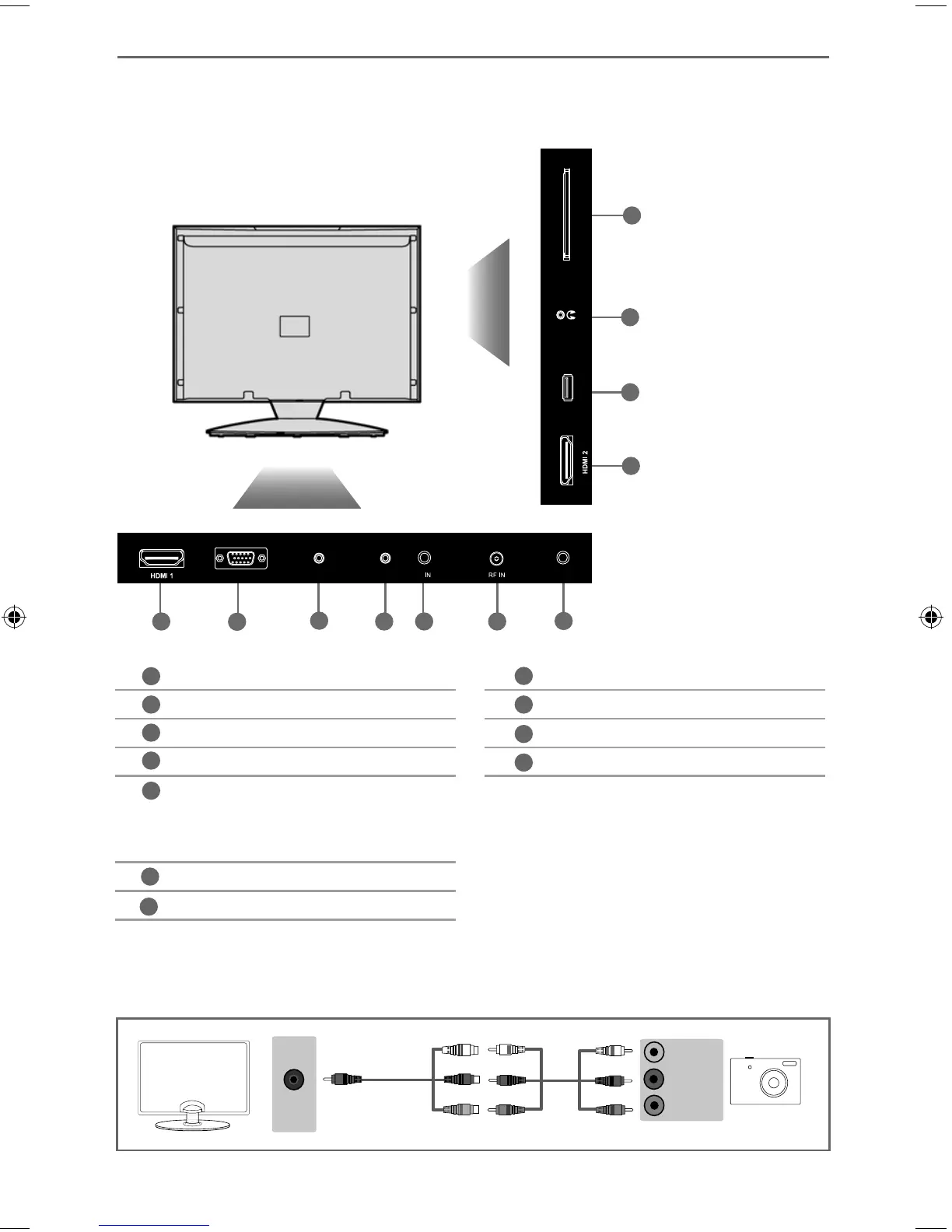

CONNECTIONS
Connections
A
B
C
D
E
F
H
G
I
J
K
Connecting to a device with Composite AV/Video output
TV Source should be set to Video
AV
IN
L (white)
R (red)
AV (Yellow)
HDMI 1 HDMI input
VGA PC VGA-PC input
VGA PC Audio In 3.5mm PC audio input
YPbPr HD input (Ypbpr)
AV IN Input for Composite/Video and
Audio for Composite / Video
and Component / Y Pb Pr
RF IN RF / TV Aerial Input
COAX Audio Out Digital Coax output
HDMI 2 HDMI input
USB USB port
Earphones Earphone Input
CI CARD IN Common Interface module
A
B
C
D
E
F
G
J
H
K
I
I
USB
CI CARD IN
EARPHONE
Y
Pb
Pr
V
V
GA A/P C (A u d i o i n )
VGA/PC IN
COAX
