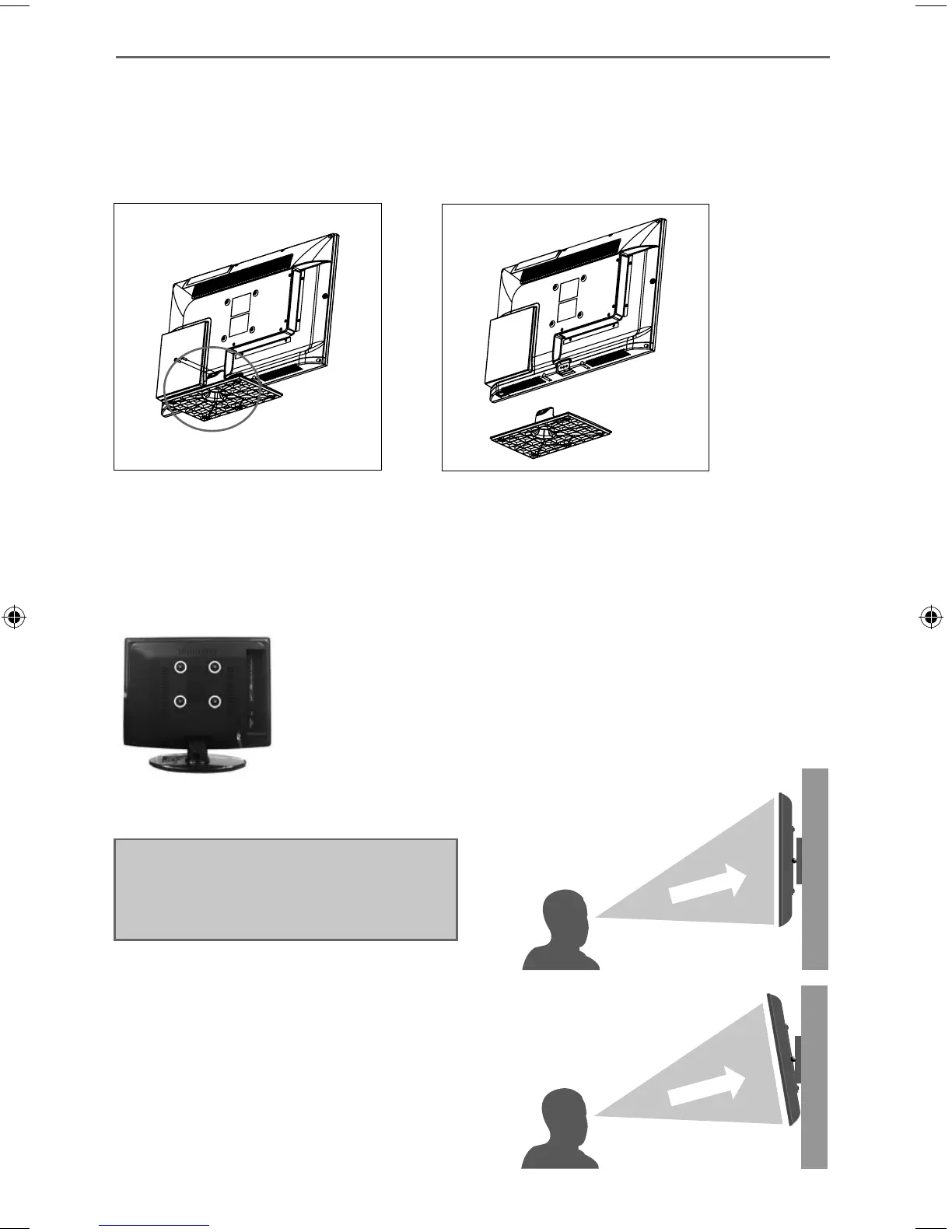

Wall mounting the TV
IMPORTANT - Before drilling any holes in the wall ensure you are not drilling
where there could be any electric wires, water or gas pipes.
1) Remove the four screws highlighted that are supplied in the wall
mounting holes.
2) The wall mount can now be easily attached to the mounting holes on the
rear of the TV.
fi g 1
fi g 2
For optimum viewing, if wall mounting the TV
higher than eye level, the TV should be tilted
downwards so that the TV’s screen is ‘face on’.
See fi g 1 and 2
Important – If wall mounting this TV, only
use the screws already provided in the wall
mounting holes. Using other screws which
are longer could cause irreparable damage to
internal parts.
TV
Viewing angle
Viewing angle
INCORRECT
CORRECT
Attaching/Detaching the stand and wall mounting
Detaching the stand
Remove the 2 screws highlighted then remove the stand base and neck from the rear of the TV set.
ATTACHING/DETACHING THE STAND
