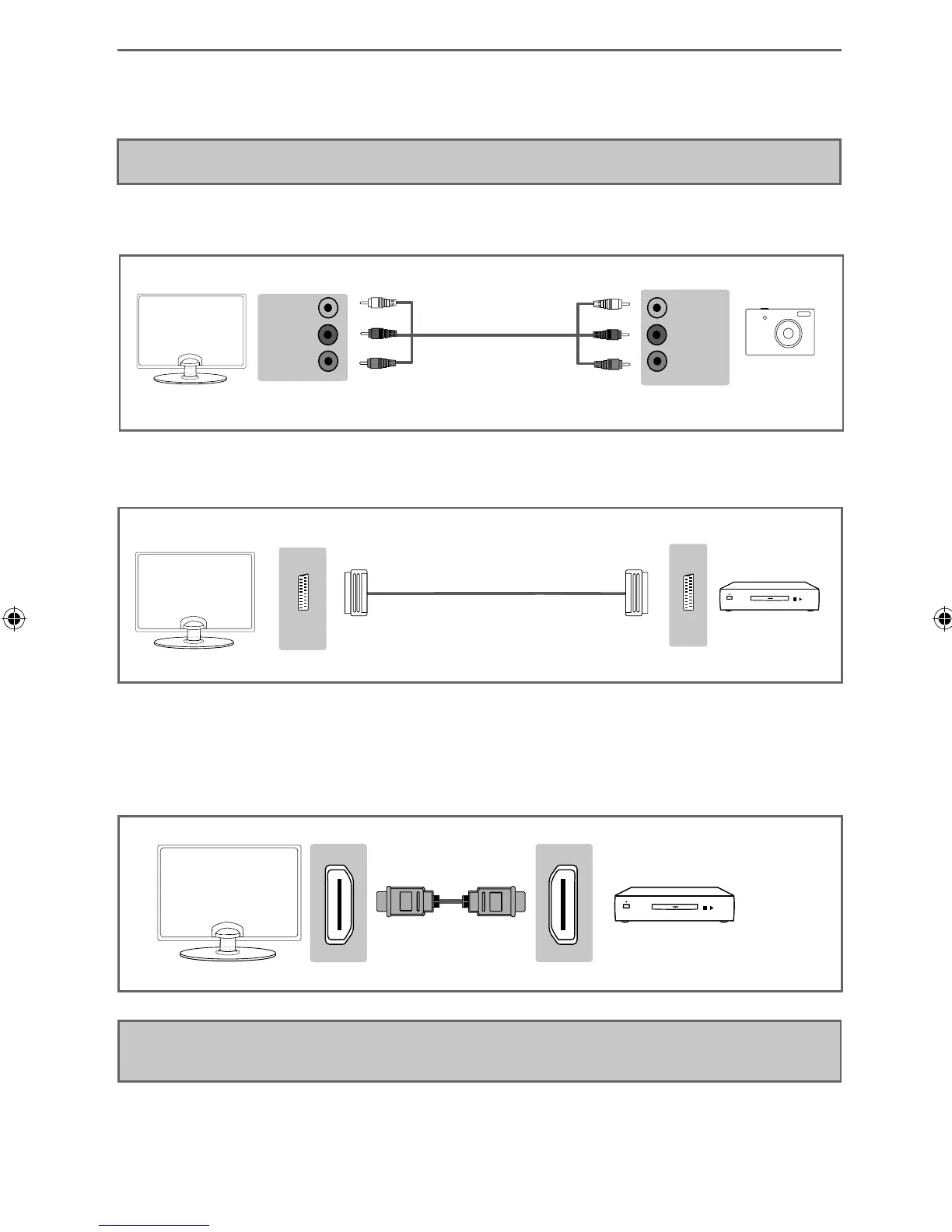

Connecting to a device with Composite AV/Video output
TV Source should be set to Composite / AV
L (white)
R (red)
Video
(Yellow)
L (white)
R (red)
Video
(Yellow)
Connections
Connecting to a device with HDMI output
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.
TV Source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)
Note: To use this model TV as a PC/laptop monitor it will need to be connected via the VGA input, it
can not be used as a PC/laptop monitor via the HDMI input. The HDMI Input is provided to view digital
content with compatible external devices
CONNECTIONS
Connecting to a device with SCART output
TV Source should be set to SCART
SCARTSCART
Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.
