Blaupunkt 600 Series User Manual

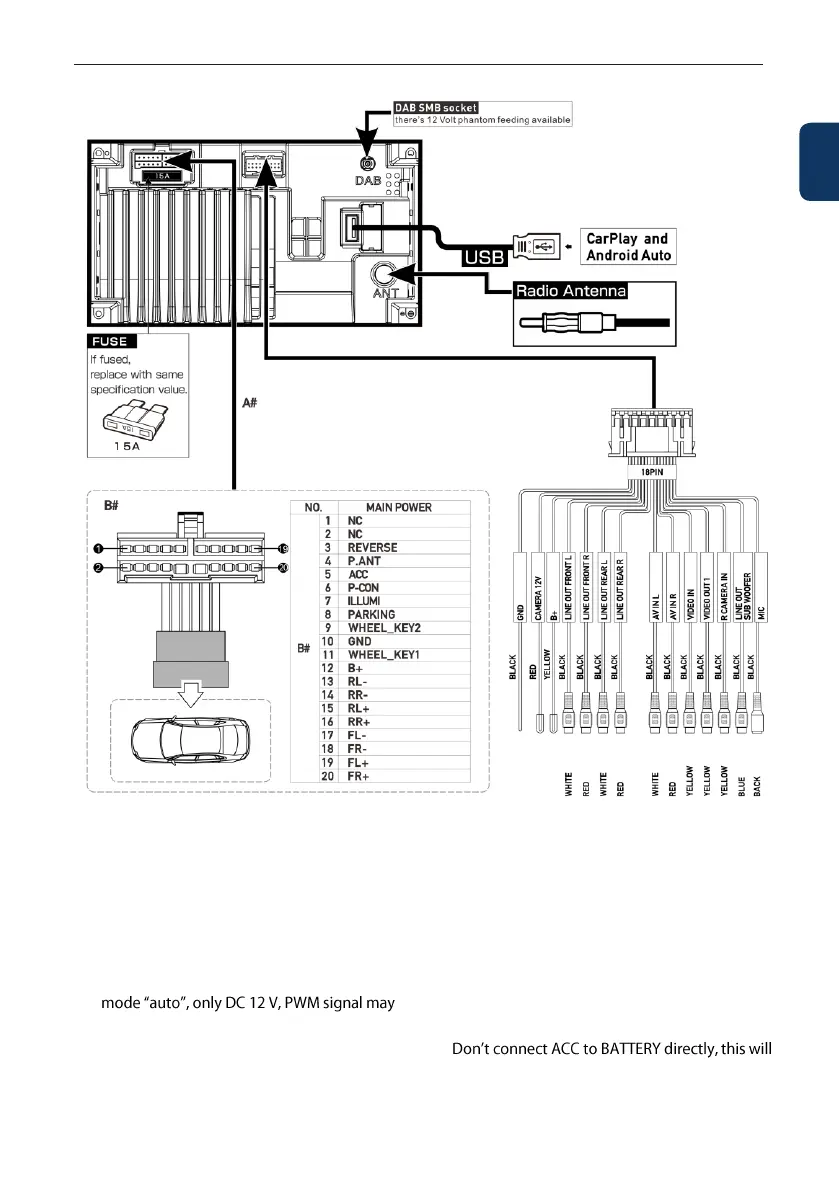

Connection Diagram
Connections:
• REVERSE: reverse signal from car, needed to
enable reverse camera
• P.ANT: Switched power supply for active
antenna (12V/ max. 200mA)
• ACC: Ignition signal
• P.CONT: Switched power supply for external
amplifier (12V/ max. 200mA)
• ILLUMI: car lights input, needed for dimmer
cause flickering display!
• PARKING: Connect to handbrake signal
• WHEEL KEY: SWC input (steering wheel control)
Connections:
• B+ : Power output (enabled if ACC is ON) (12V/
max. 500 mA)
• CAMERA 12V: Power supply for camera
(enabled if source camera active) (12V/ max.
200mA)
• DAB phantom feeding (12V/ max. 100mA)
Note:
For operation, ACC must be connected and switched
on. Device is not operable without ACC.
cause high battery drain.
To keep all settings and memory, BATTERY must be
connected permanently.
Connection Diagram
Connections:
• REVERSE: reverse signal from car, needed to
enable reverse camera
• P.ANT: Switched power supply for active
antenna (12V/ max. 200mA)
• ACC: Ignition signal
• P.CONT: Switched power supply for external
amplifier (12V/ max. 200mA)
• ILLUMI: car lights input, needed for dimmer
cause flickering display!
• PARKING: Connect to handbrake signal
• WHEEL KEY: SWC input (steering wheel control)
Connections:
• B+ : Power output (enabled if ACC is ON) (12V/
max. 500 mA)
• CAMERA 12V: Power supply for camera
(enabled if source camera active) (12V/ max.
200mA)
• DAB phantom feeding (12V/ max. 100mA)
Note:
For operation, ACC must be connected and switched
on. Device is not operable without ACC.
cause high battery drain.
To keep all settings and memory, BATTERY must be
connected permanently.
ENGLISH
45

Blaupunkt 600 Series Specifications

General

Resolution	800 x 480 pixels
Touchscreen	Yes
Bluetooth	Yes
USB	Yes
SD Card Reader	Yes
DVD Player	Yes
Rear Camera Input	Yes
Steering Wheel Control	Yes
AUX Input	Yes
Radio	Yes
Screen Size	6.2 inches
