l You can use a either or both of these two methods.
Connecting the Speaker Leads
.
To prevent short circuits or serious damage to the unit and/or speakers:
l Connect the speaker leads only as indicated in the wiring diagram. Disconnect the vehicle
battery’s negative terminal before making connections.
l Only use speakers that have impedance ratings of 4 ohms or higher and have power-handling
capabilities greater than the unit’s stated power level.
l The unit’s internal amplifier is designed to handle a
4-ohm
load on each pair of speaker leads.
. DON’T connect two speakers to a single pair of speaker leads (“in parallel”) unless both speakers
each have at least 8 ohms impedance.
l DON’T connect the left and right speaker leads to each other or to the same speakers.
l DON’T connect the front and rear speaker leads to each other or to the same speakers.
l DON’T connect the negative speaker leads to each other.
l DON’T connect the positive speaker leads to each other.
l DON’T connect any active speakers (with built-in amplifiers) to the speaker leads unless their
owner’s manuals specifically state that this is O.K.
l Cover the ends of any unused leads with electrical tape. This will prevent them from touching the
vehicle or each other and causing a short-circuit and damage to the receiver or vehicle.
Connecting the Pre-Amp Outputs to External Amplifier(s)
To prevent short circuits or serious damage to the receiver, amplifier, and/or speakers:
l Follow the amplifier’s instructions on how to connect the unit’s preamp outputs to the amplifier(s)
and connect the speaker(s) directly to the amplifier.

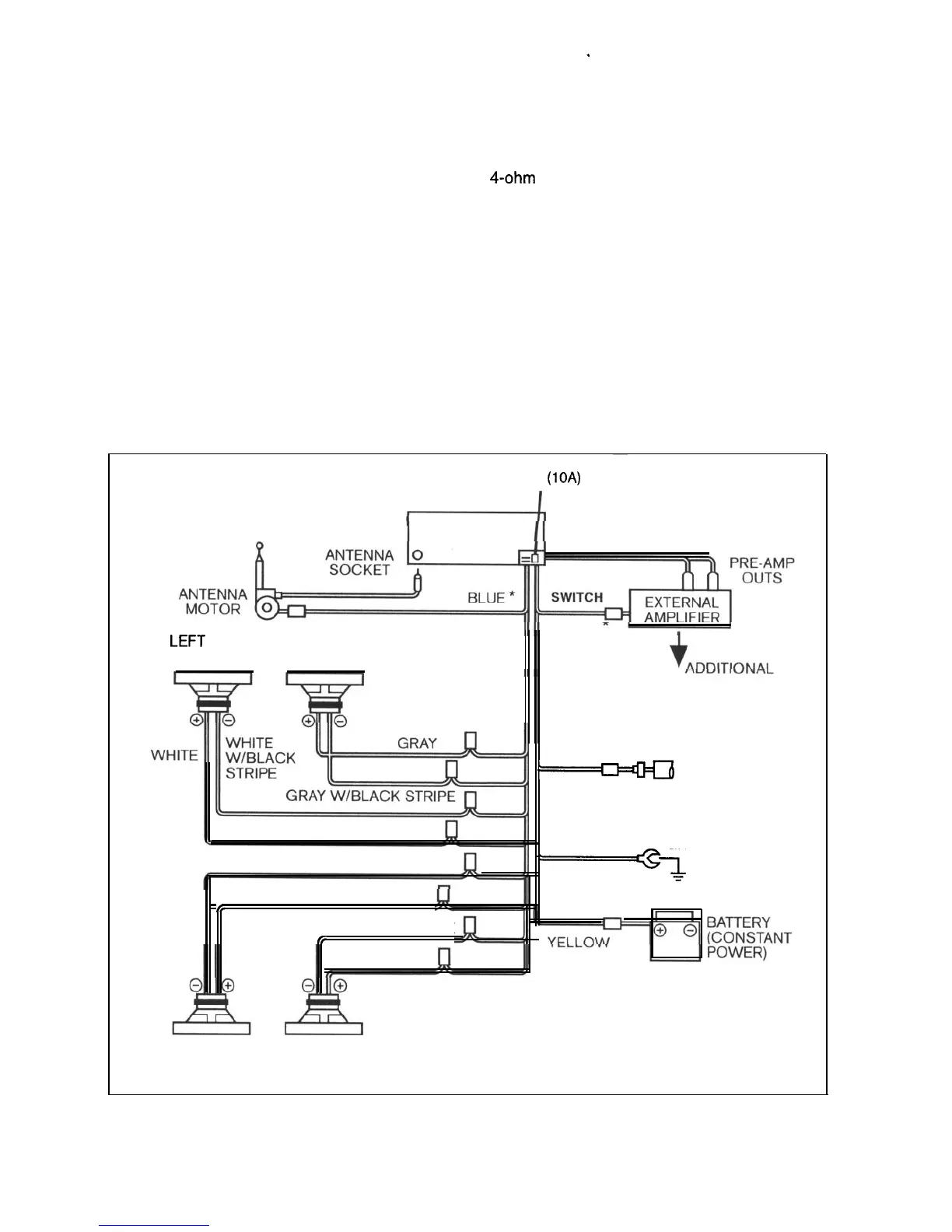

FUSE
(10A)
.
REAR OF UNIT
LEFT
FRONT RIGHT FRONT
SPEAKER
SPEAKER
GREEN fi
GREEN
W/BLACK
STRIPE
VIOLET W/BLACK STRIPE
CI
VIOLET
LEFT REAR
RIGHT REAR
SPEAKER
SPEAKER
BLUE
SPEAKERS
RED
1
IGNITION
BLACK
GROUND
dc
‘Harness has single blue lead that can
be used for either antenna motor or
amp trigger or spliced for use with
both. (See note 3.)
7
To Next Page
