Connection to radios without
+12V in compartment C3/*Pin 15
(see installation instructions for the car
radio)

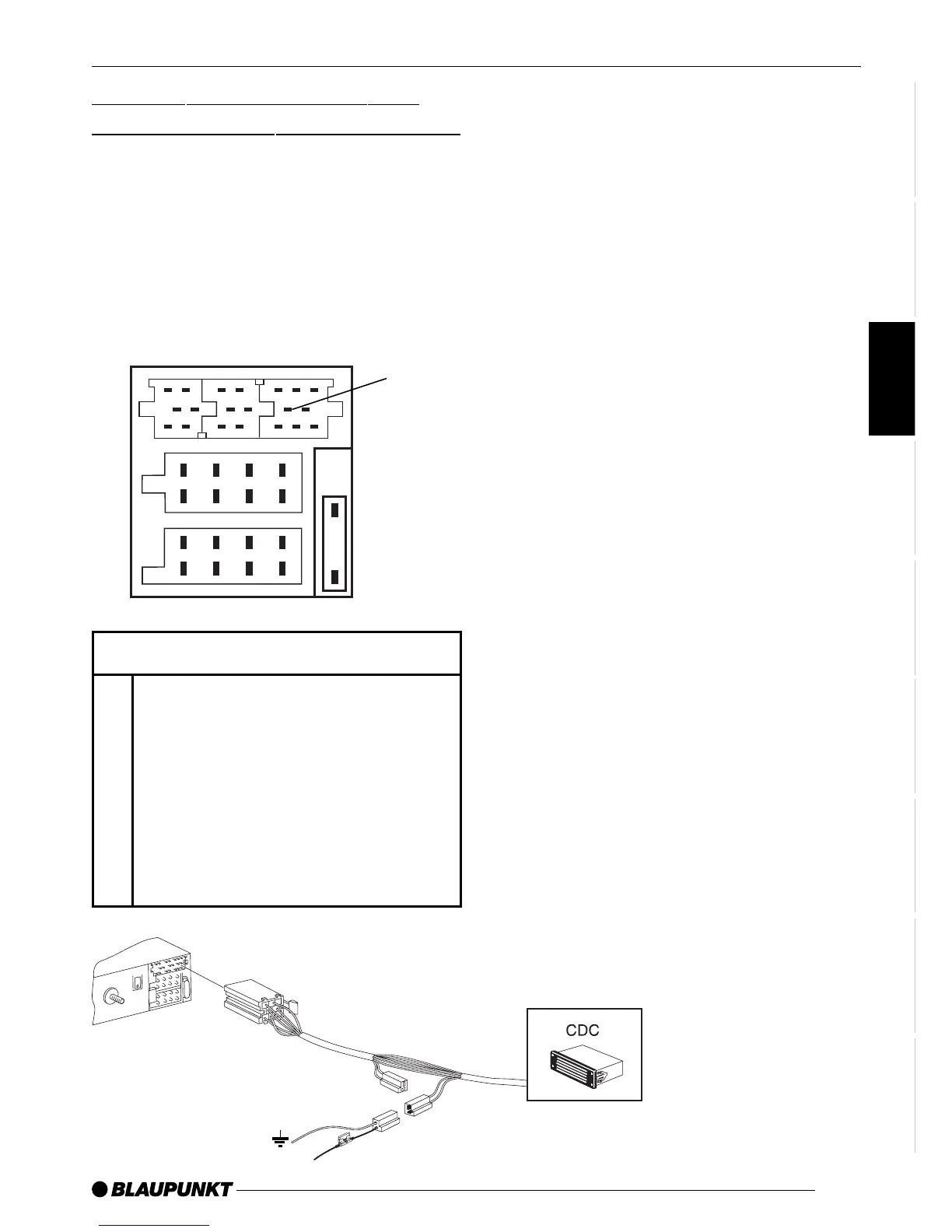

In this installation situation, the accom-
panying connection cable must be in-
stalled (see Fig. 1).
5A
C3
13 CDC Data-IN
14 CDC Data-OUT
15 +12V Permanent
16 +12V switch voltage (max. 300mA)
17 CDC Data-GND
18 CDC AF/AUX-GND
19 CDC AF/AUX-L
20 CDC AF/AUX-R
Fig. 1
INSTALLATION
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
14
7
10 13
16
19
3
6
9
12
15
18
2
58
11
14 17
20
C-1 C-2 C-3
* Pin 15
+12V (Perm.)
