BM20 MONOBLOCK DIRECTIONAL CONTROL VALVES / INSTRUCTIONS MANUAL
6
PARTS LIST:

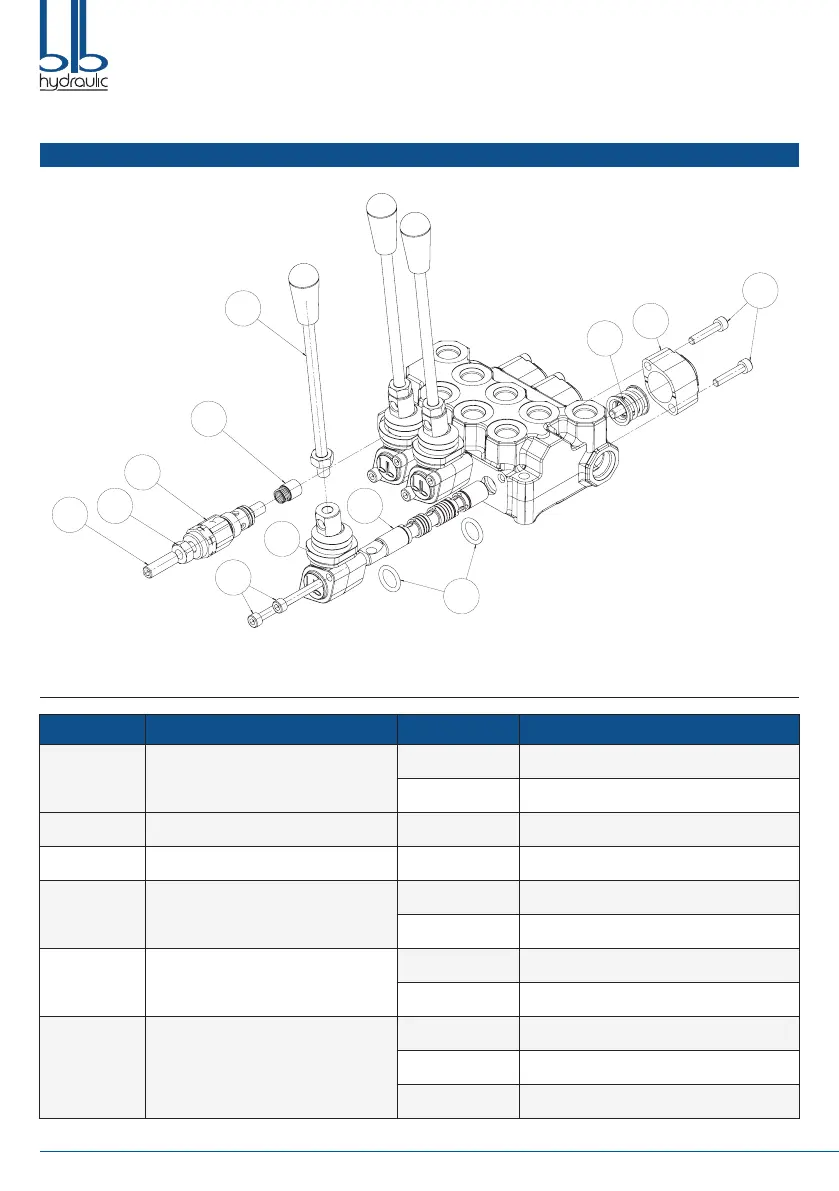

Drawing 1
BM20 SPARE PARTS
Nº Parts Parts Nº sub part Sub part
1 Relief Valve kit
1.1 Screw
1.2 Nut
2 Check valve
3 Kit handle
4 Handle cap kit
4 Handle cup
4.1 Screw
5 Spool kit
5.1 Seal
5 Spool
6 Positioner kit
6 Positioner cap
6.1 Positioner kit
6.2 Screw
1.1
1.2
1
2
3
4.1
4
5
5.1
6.1
6
6.2
