HydroLift
Construction and function
84 126746

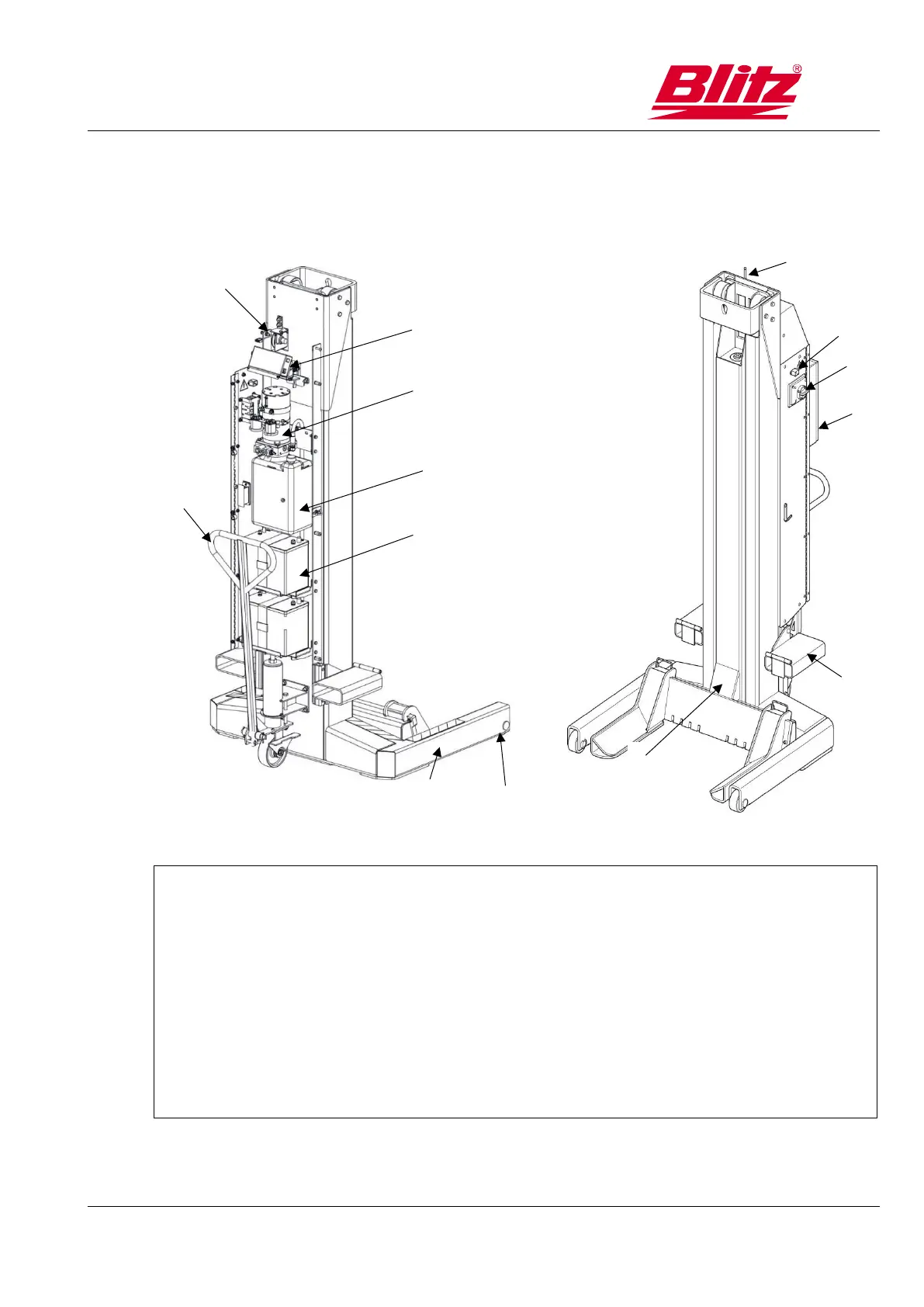

Construction lifting unit
1
Pedestal
9
Safety notch
2
Lifting carriage with wheel fork
10
Operator panel
3
Drawbar for driving the lifting unit
11
Main switch
4
Chassis
12
Transport shoes for forklifts
5
Hydraulic aggregate
13
Plug for charging the batteries
6
Oil reservoir
14
Aerial
7
Batteries
8
Height sensor
[2]
[1]
[3]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[4]
