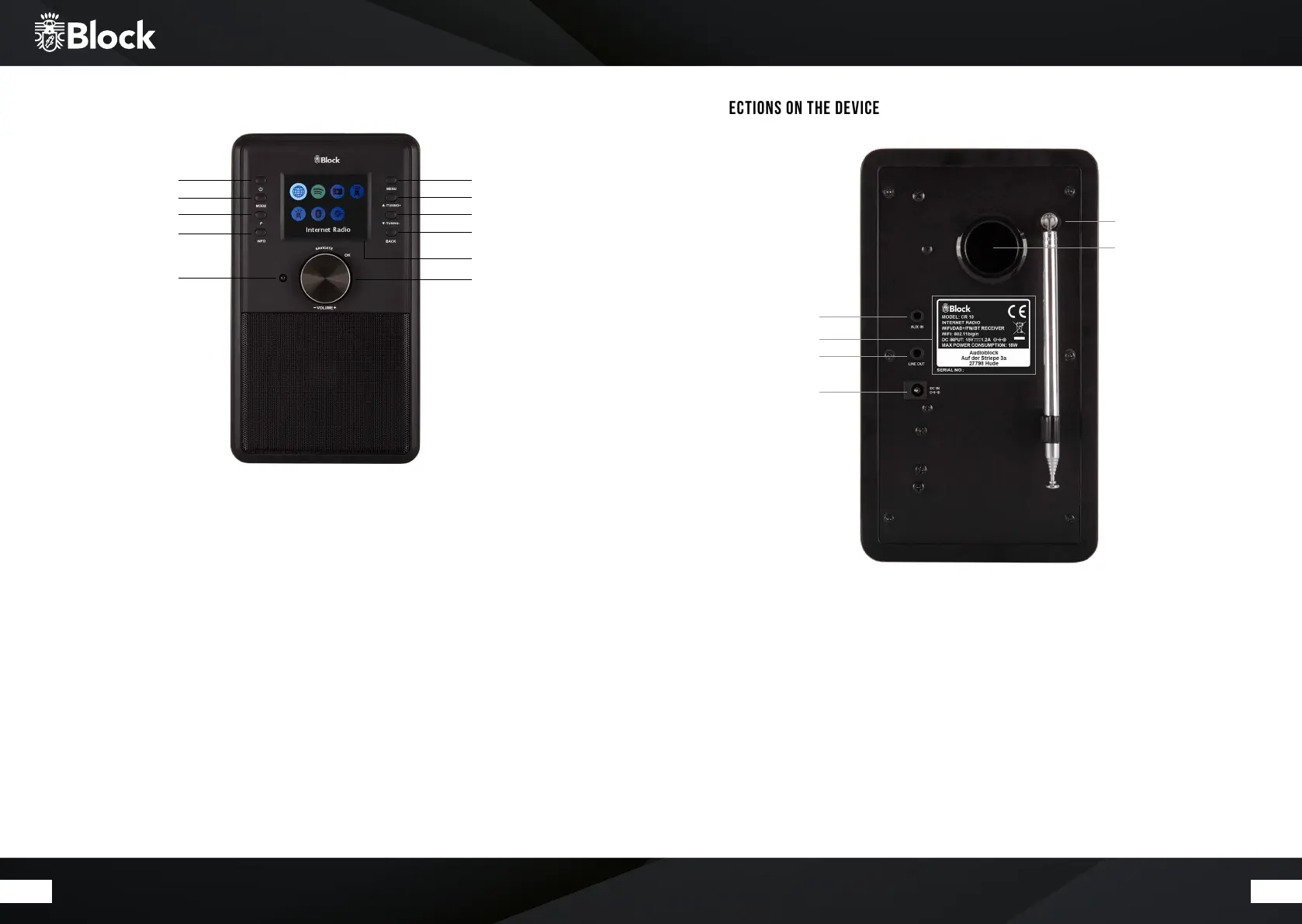

Operating elements on the unit
1. Infrared sensor for remote control.
2. Color display
3. Multifunction knob: Turn the knob to the le/right to increase / decrease the volume. In the menu mode,
the individual points are selected by turning and activated by pressing the multifunction rotary knob.
4. On|O button Press and hold the button to enter the network Standby mode. Or turn o the device
5. „INFO“ button: Pressing this key displays the data in the respective mode of the device.
6. „P“ button: short pressure to display the list of stored transmitters. Long pressure saves transmitter to
selected memory locations.
7. „Tuning-▼“ button: On the radio mode, the unit automatically searches for the
previous
station by pressing
the button.
8. Mode“ button: a short pressure switches the display to overview mode. You can now select the music sour-
ce using the multifunction knob or the arrow buttons on the remote control. Press and hold the button to
enter the network Standby mode.
9. „Menü“ button: Press and hold the button to show the menu.
10. „Back“ button: press this button to return to the previous menu item or to exit the menu.
11. Taste „Tuning+▲“: On the radio mode, the unit automatically searches for the next station by pressing the
button.
Connections on the device
1. Model designation, technical data, serial number, warnings and disposal instructions.
2. 3.5 mm AUX-IN input jack for external sources.
3. 3.5 mm headphone connection jack.
4. Power supply for the supplied external power adapter. The power supply cable must not show any damage
or defects, use only the supplied one.
5. FM and DAB + telescopic antenna (mounted).
6. Bass reflex ports for integrated speakers.
