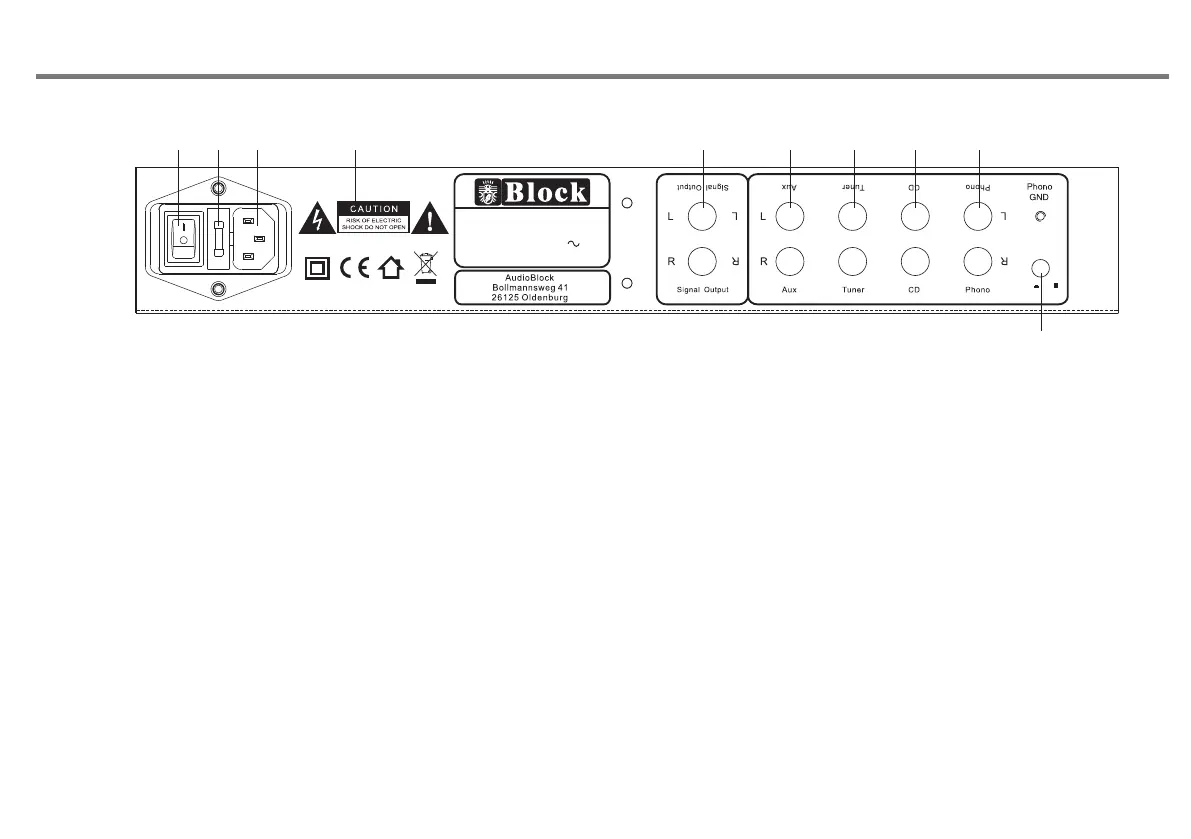

REAR PANEL CONNECTIONS
P16
1. POWER SWITCH: Switches mains power on/off to internal
components, however please note that mains power is still
applied to this unit even though this switch may be off.
2. FUSE HOLDER: fitted with 20mm T 4A fuse inside.
" IMPORTANT:"
Remove the mains plug from the mains socket before attempting
to check/ replace the fuse located on this fuse holder.
3. MAINS CABLE INLET JACK: Please ensure that the input cable strain relief
bush is intact and has not been damaged.
4. WARNING ICONS: Please be aware that this unit contains high voltages,
and should not be opened, please refer to page 2 of this manual.
5. SIGNAL OUTPUT JACK.
6. AUX INPUT JACK.
7. TUNER INPUT JACK.
8. CD INPUT JACK.
9. PHONO INPUT JACK.
10. MM/MC SELECTION SWITCH.
FUSE: T 500mA 25 0V
Model: P 100
Hi-Fi Stereo Preamplifier
Power Rating: AC 230V 50Hz
Max Power Consumption: 10W
MM
MC
1 2
3
4
5 6
7
8 9
10
