1. RIGHT LOUDSPEAKER OUTPUTS. Please ensure that +/- connections
are made properly between rear of the amplifier and loudspeakers.
Ensure wires are not frayed or touching.
2. LEFT LOUDSPEAKER OUTPUTS. Please ensure that +/- connections
are made properly between rear of the amplifier and loudspeakers.
Ensure wires are not frayed or touching.
3. LINE OUTPUT SOCKETS . This is for connection to external amplifier
or recording equipment.
4. MP3 INPUT SOCKET. 3.5mm input for MP3 player connection.
5. TUNER INPUT SOCKET. For the connection of a tuner.
6. DVD INPUT SOCKET. For the connection of DVD player
(2 channel stereo only).
7. CD INPUT SOCKET. For the connection of a CD player.
8. TAPE INPUT SOCKET. For the connection of a Tape player.
9. PHONO INPUT SOCKET. For the connection of a turntable.
10. WARNING LABELS. Please be aware that this unit contains high voltages,
and should not be opened, please refer to page 2 of this manual.
11. MAINS CABLE INLET POSITION. Please ensure that this cable strain
relief bush is intact and has not been damaged.

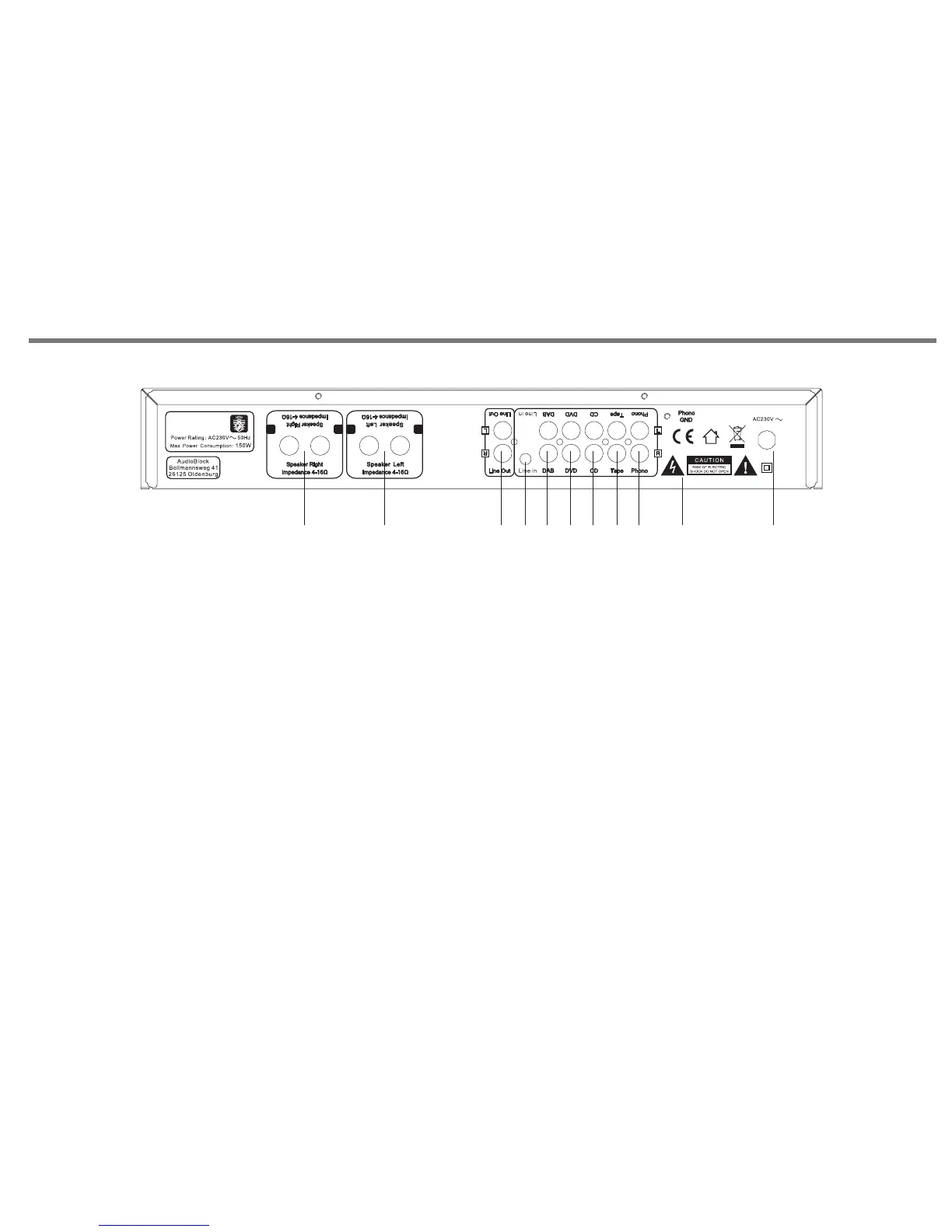

REAR PANEL CONNECTIONS
P19
1 2
3
4 5 6
7
8
9
11
10
-
+
-
+
Model：V 250
Hi-Fi Stereo Amplifier
