6 / 43

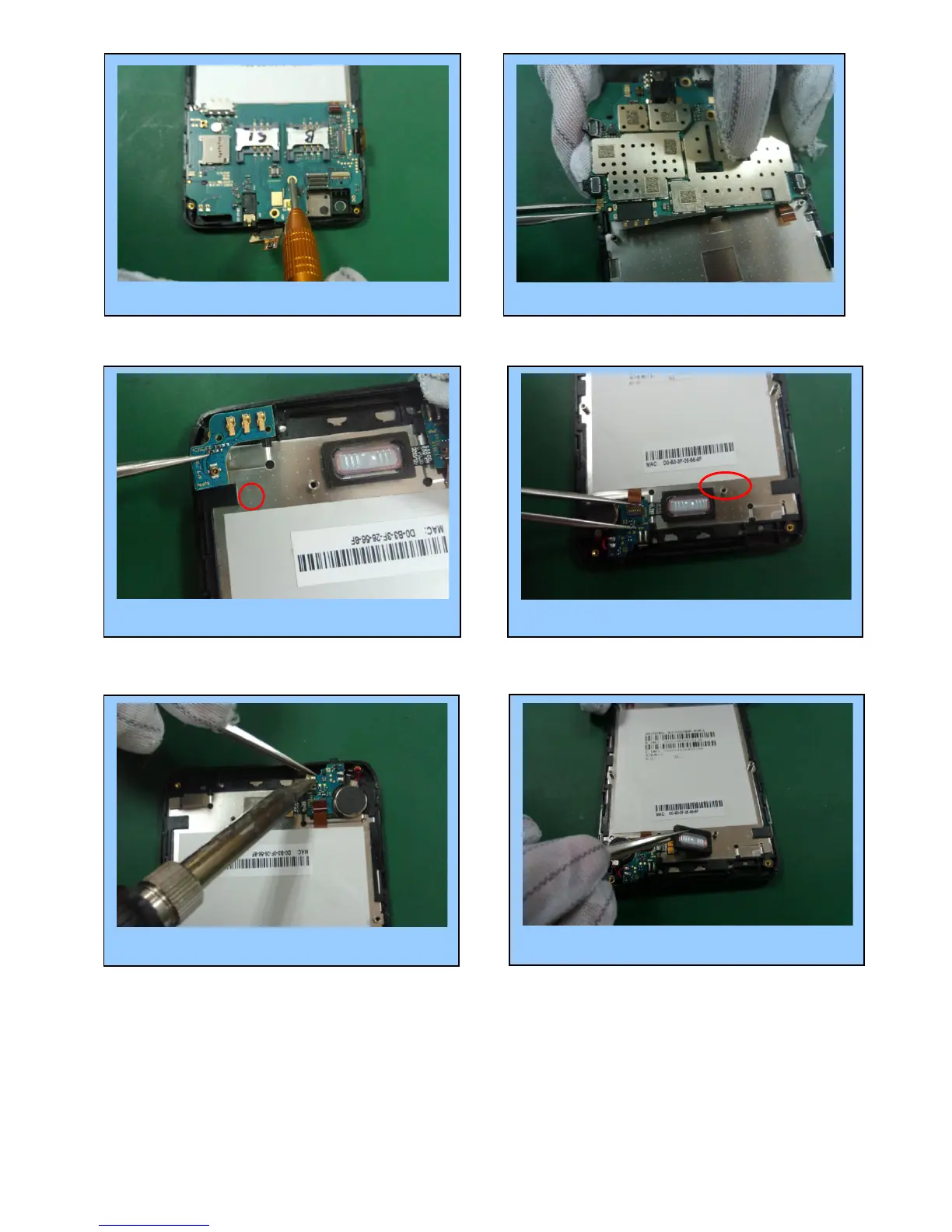

Unfasten the screws..…………...……7
Remove the FR coaxial line connector……...……..8
Remove the FPC connector………10
Remove the LED FPC……...…11
Remove the speaker…………….....12
Remove the antenna PCBA……………..……….9
