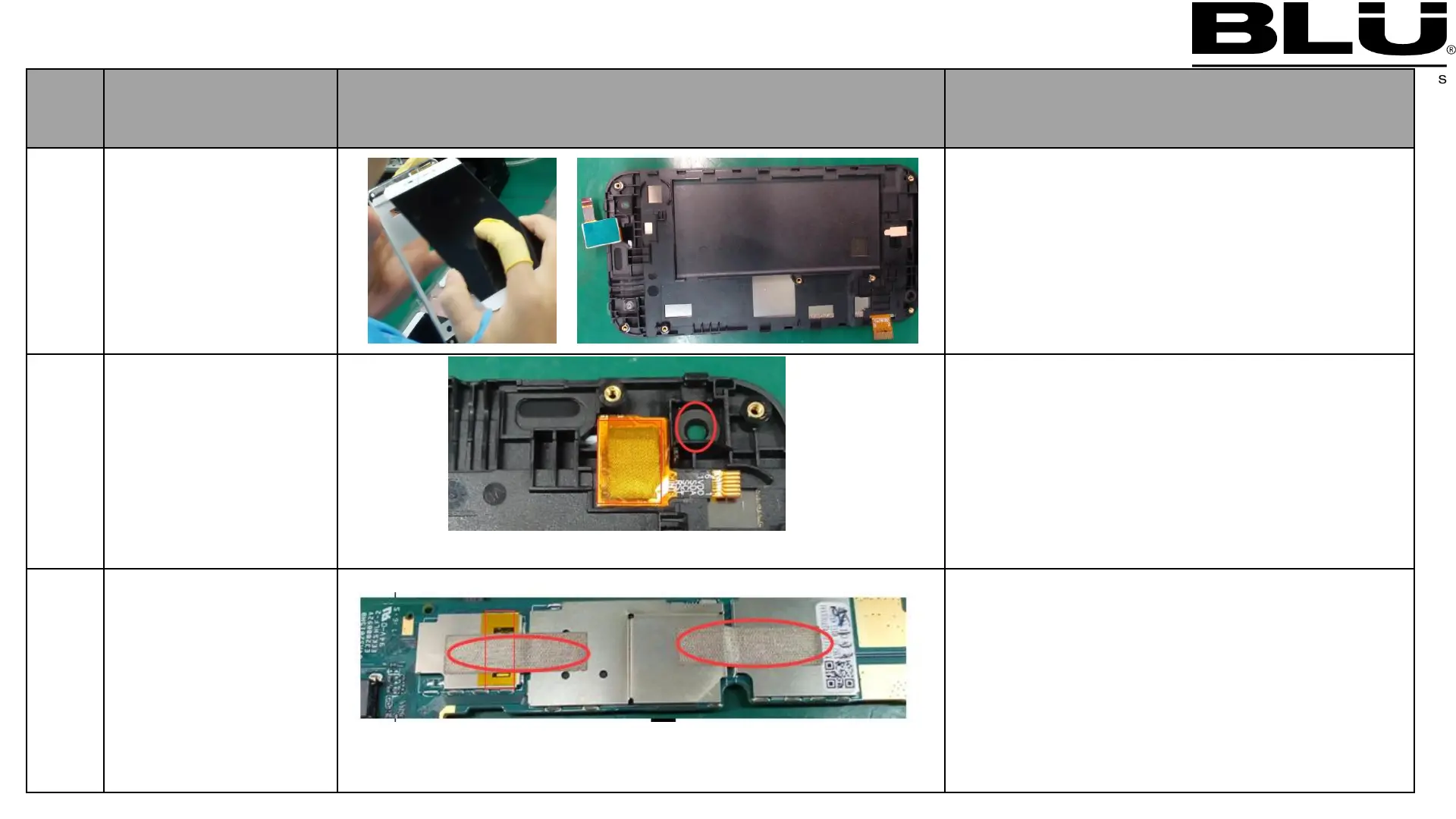

Blu Studio J1 - Assembling procedure

NO.
Operation name
Operation and note
1
Assemble
TP&LCD on A
shell
Insert the TP FPC into the A shell
2. Insert the LCD FPC into the A shell
3. complete as left second picture;
2
Assemble TP_IC
Conductive Fabric
and
Front Camera
Foam
1
：Assemble front camera seal Foam into
the A shell
2
：
Assemble TP_IC conductive Fabric into
the A shell
3
：Assemble TP_IC Insulation Mylar
into the A shell
3
Assemble PCBA
Conductive fabric
and
Insulation
Mylar
1
：Assemble 2pcs Conductive fabric into
the PCBA
2
：Assemble Insulation Mylar
into the PCBA
5.3 Assembling procedure
