Blu Studio J1 - Page 15

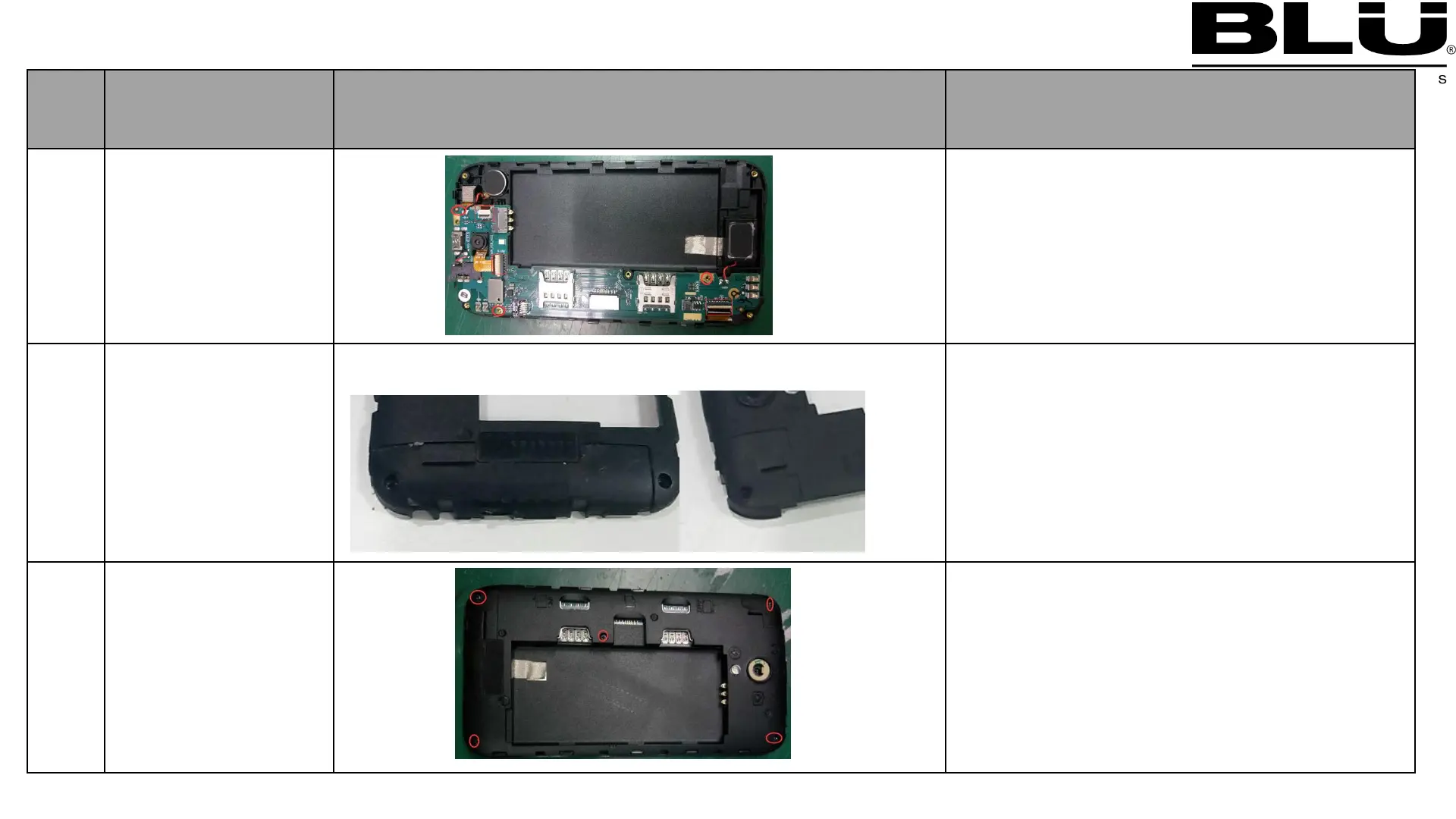

NO.
Operation name
Operation and note
7
Assemble PCBA
into A shell_
1
：Assemble Put TP_IC FPC in PCBA
2
：Assemble LCD_FPC into locker
mechanism completely, as left picture
shown
8
Assemble
BT_WIFI_ GPS
antenna
，main
antenna
1
：Assemble BT_WIFI_GPS antenna，
main antenna into the B shell
2
：Fixed column
9
Assemble B shell
component
1:Assemble B shell
component
2
：1.Fist assemble 5 screws at marked position;
