Blu Studio J1 - Page 9

NO.
Operation
name
Operation
and note

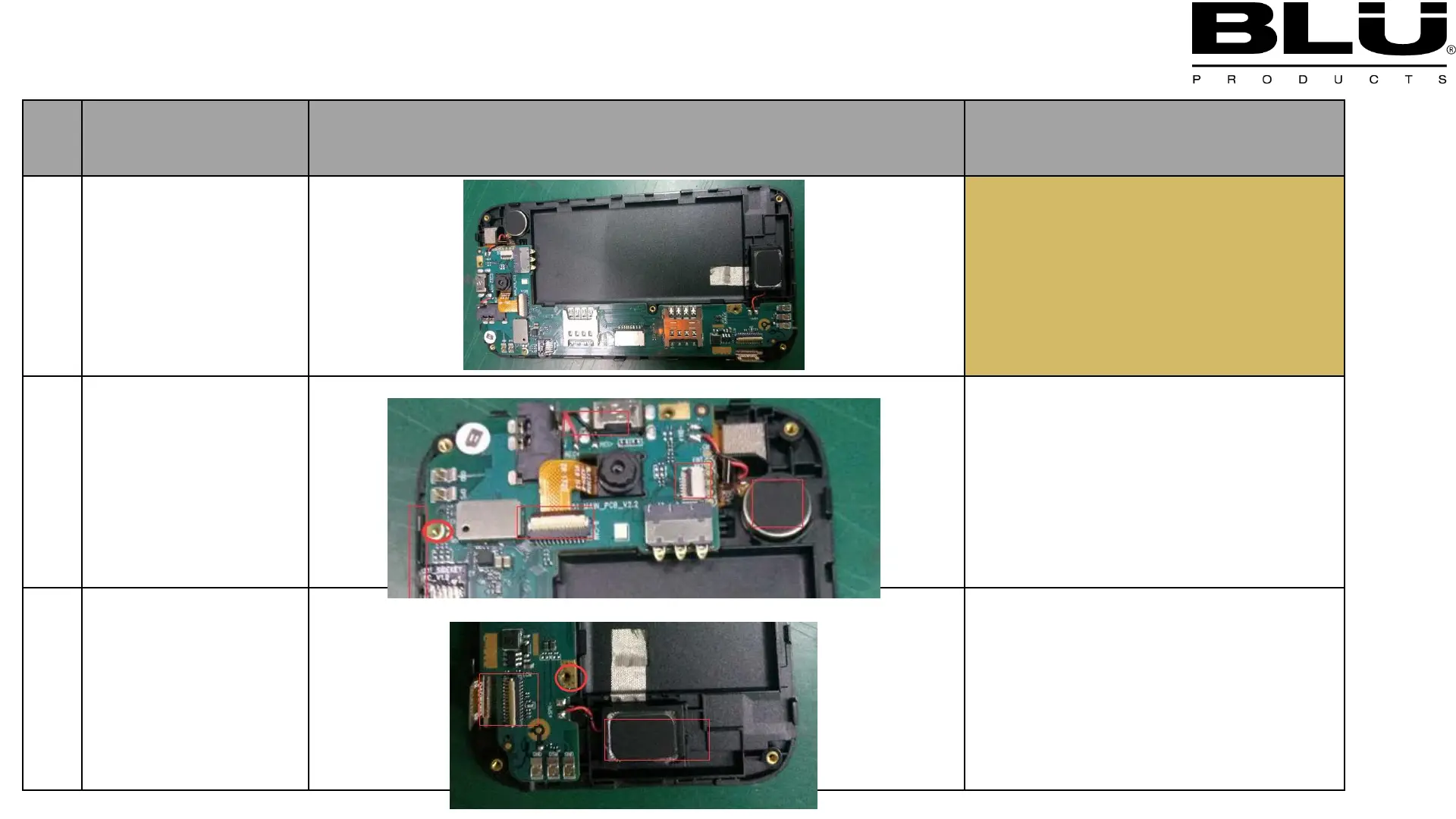

4
Remove
B cover
1.Using your fingernail insert into
gap between A cover and B
cover ,and sliding along the
around of A cover to release hook,
then B
-cover will be removed.
5
Remove
Main
PCBA_1
1:Remove 2 PCS screws
2:Remove side key reinforcement plate
3:Disconnect the TP connector
4:Remove Receiver
with tweezers
5:Remove Moto
with tweezers
6:Remove
main camera with tweezers
6
Remove
Main
PCBA_2
1:Remove 1 PCS screws
2:Disconnect the LCD
connector
3:Remove Receiver
with tweezers
