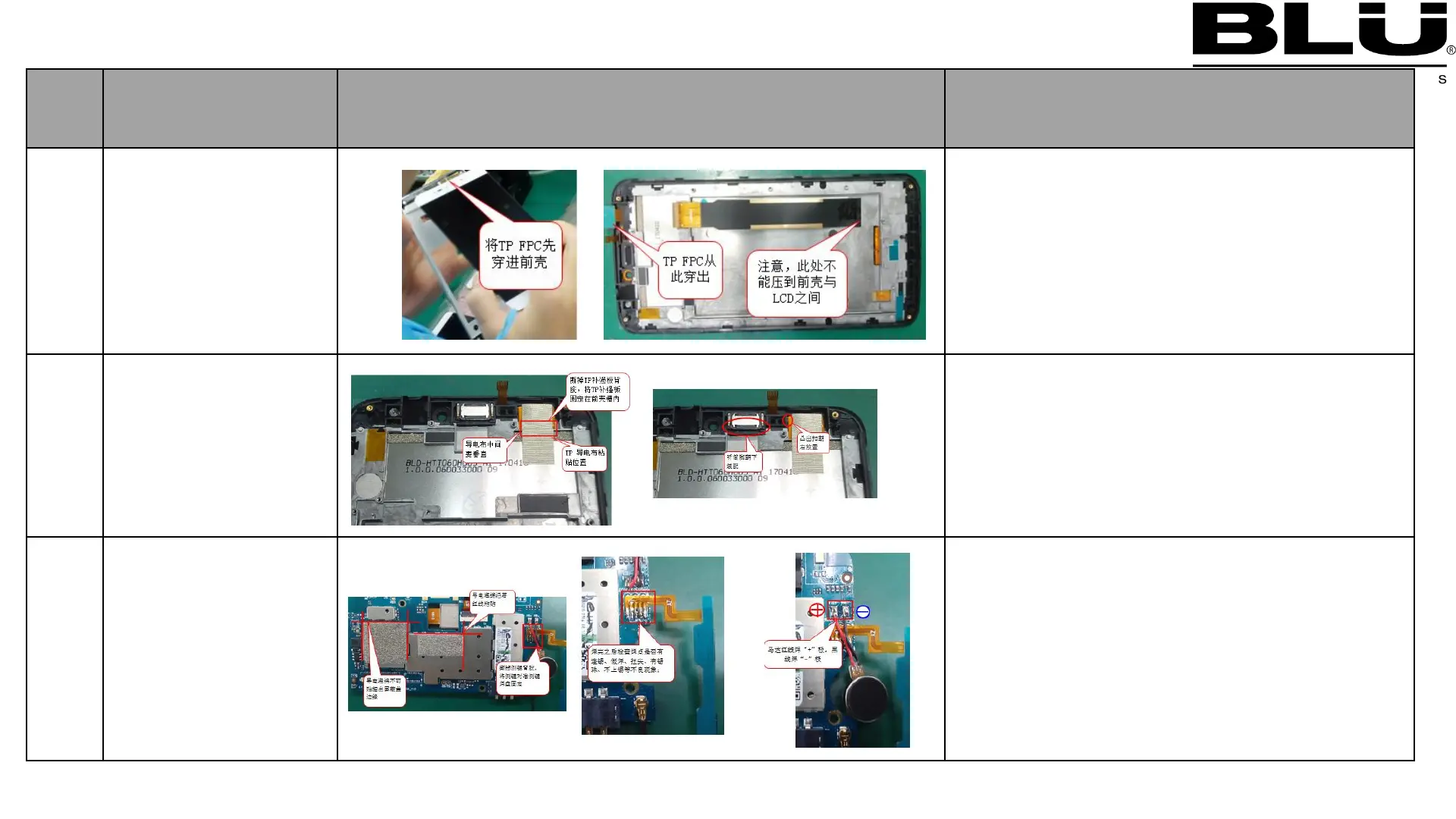

Blu Studio Mega - Assembling Procedure

NO.
Operation name
Operation and note
1
Assemble
TP&LCD on A
shell
Insert the TP FPC into the A shell
2. Insert the LCD FPC into the A shell
3. complete as left second picture;
2
Assemble TP_IC
Conductive Fabric，
Receiver
1
：
Assemble TP_IC conductive Fabric into
the A shell
2:Assemble
Receiver into the A shell
3
Assemble
Conductive
foam,
side key
component ,Motor
1
：Assemble side key component into the
PCBA
2
：Assemble conductive foam
3
：Assemble motor into the PCBA
5.3 Assembling procedure
