Blu Studio Mega - Page 15

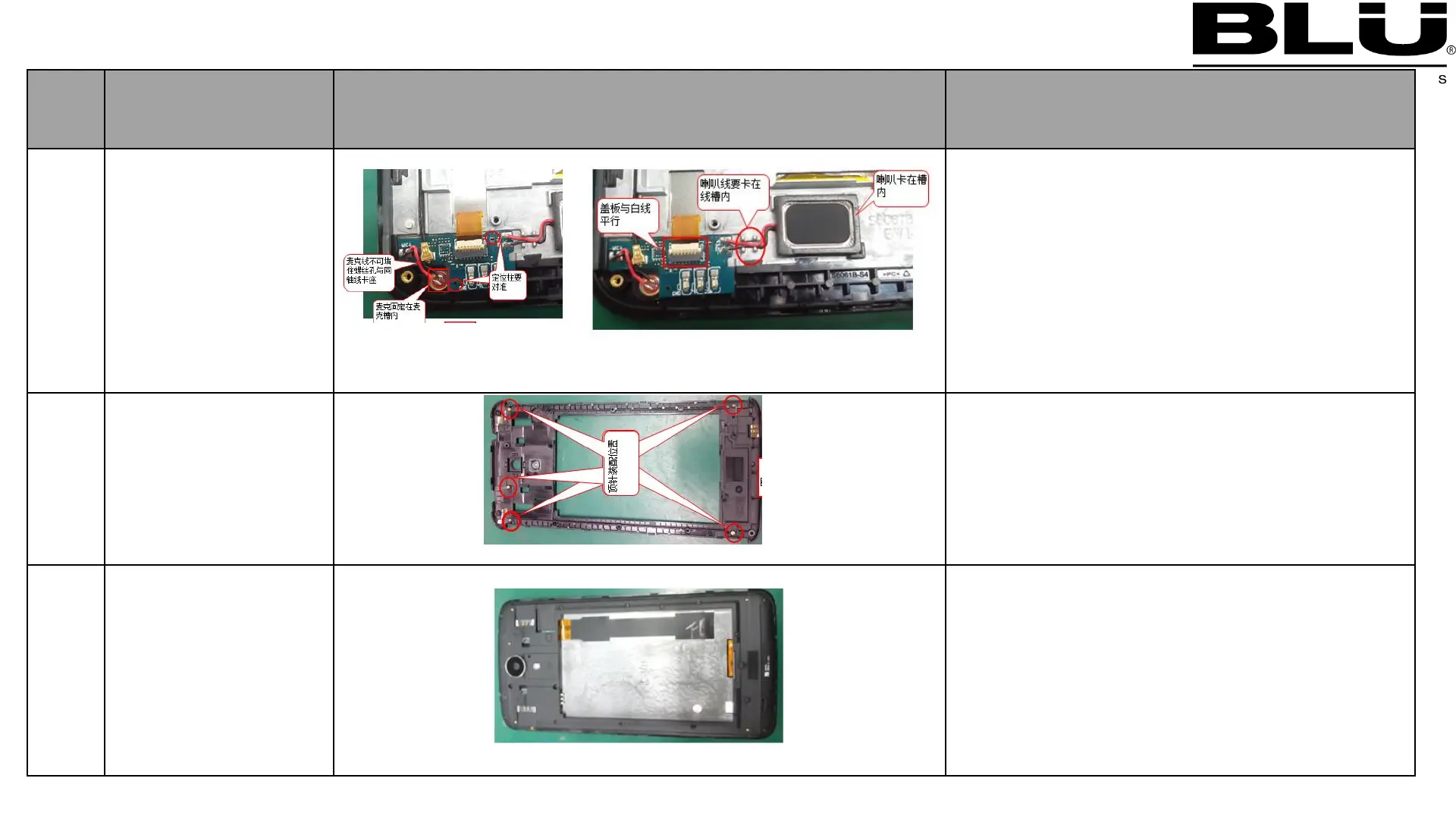

NO.
Operation name
Operation and note
7
Assemble
motor ,MIC ,SUB
-
PCBA
1
：Assemble SUB-PCBA onto the A shell
2
：Assemble MIC into the A shell
3
：Assemble LCD_FPC into locker
mechanism completely, as left picture
shown
4: Assemble Speaker line into the A shell
8
Assemble 5pcs
Pogo pin B shell
1
：Assemble 4PCS Pogo pin into the B
shell
9
Assemble B
shell
component
1
：Assemble B shell component
