Blu Studio XL2 - Page 15

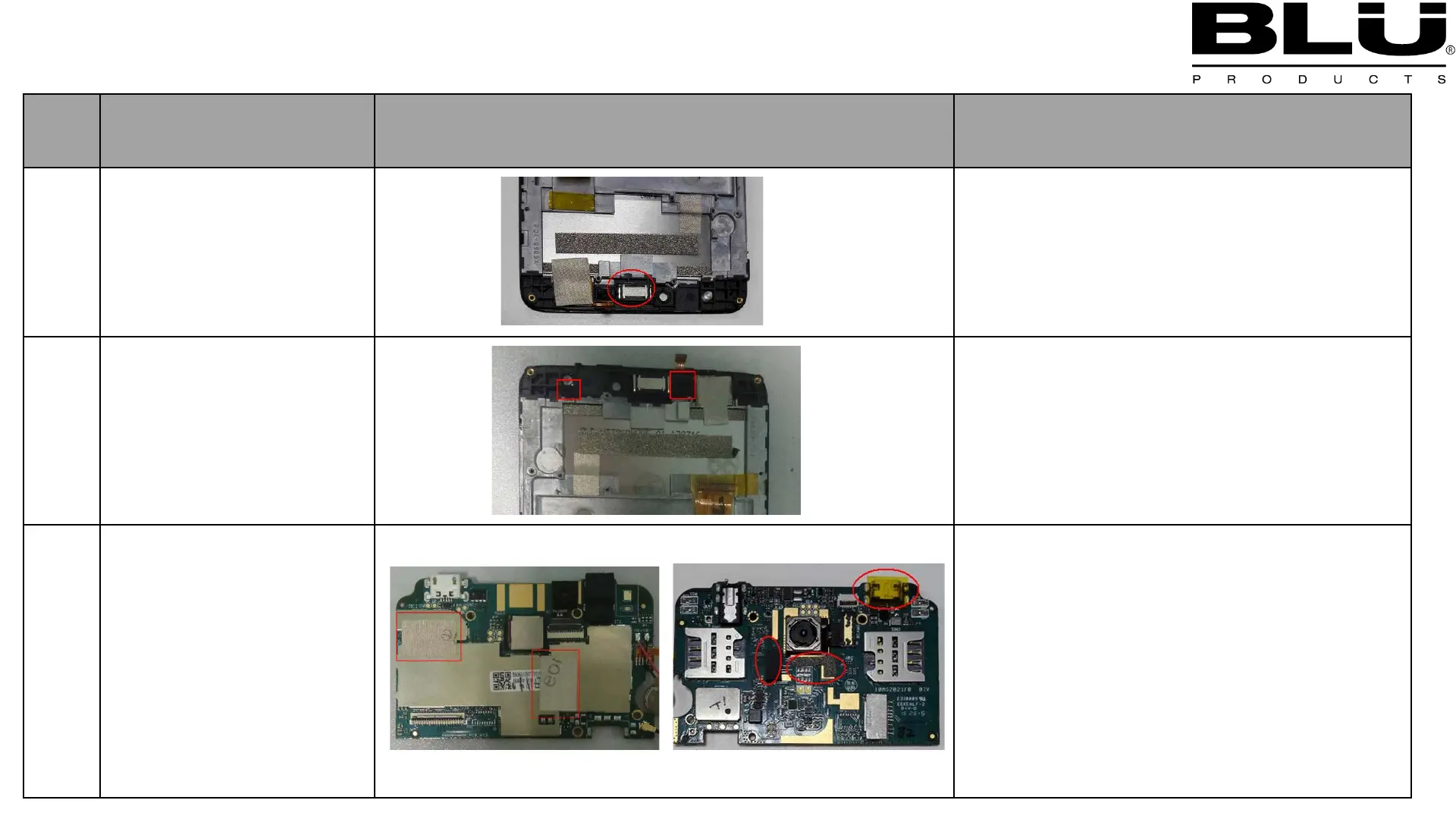

NO.
Operation name
Operation and note
4
Assemble receiver
1：Assemble receiver into the A shell
5
Assemble Sign Light
seal Rubber, DIS
sensor Rubber
1：Assemble Sign Light seal Rubber and DIS
sensor Rubber into the A shell
6
Assemble Conductive
Fabric, Conductive
Foam Support Foam,
seal Mylar
1：Assemble Conductive fabric into the
Main PCBA（2pcs）
2：Assemble Conductive foam into the
Main PCBA（1pcs）
3：Assemble support foam into the Main
PCBA（1pcs）
4：Assemble seal Mylar into the Main
PCBA（1pcs）
