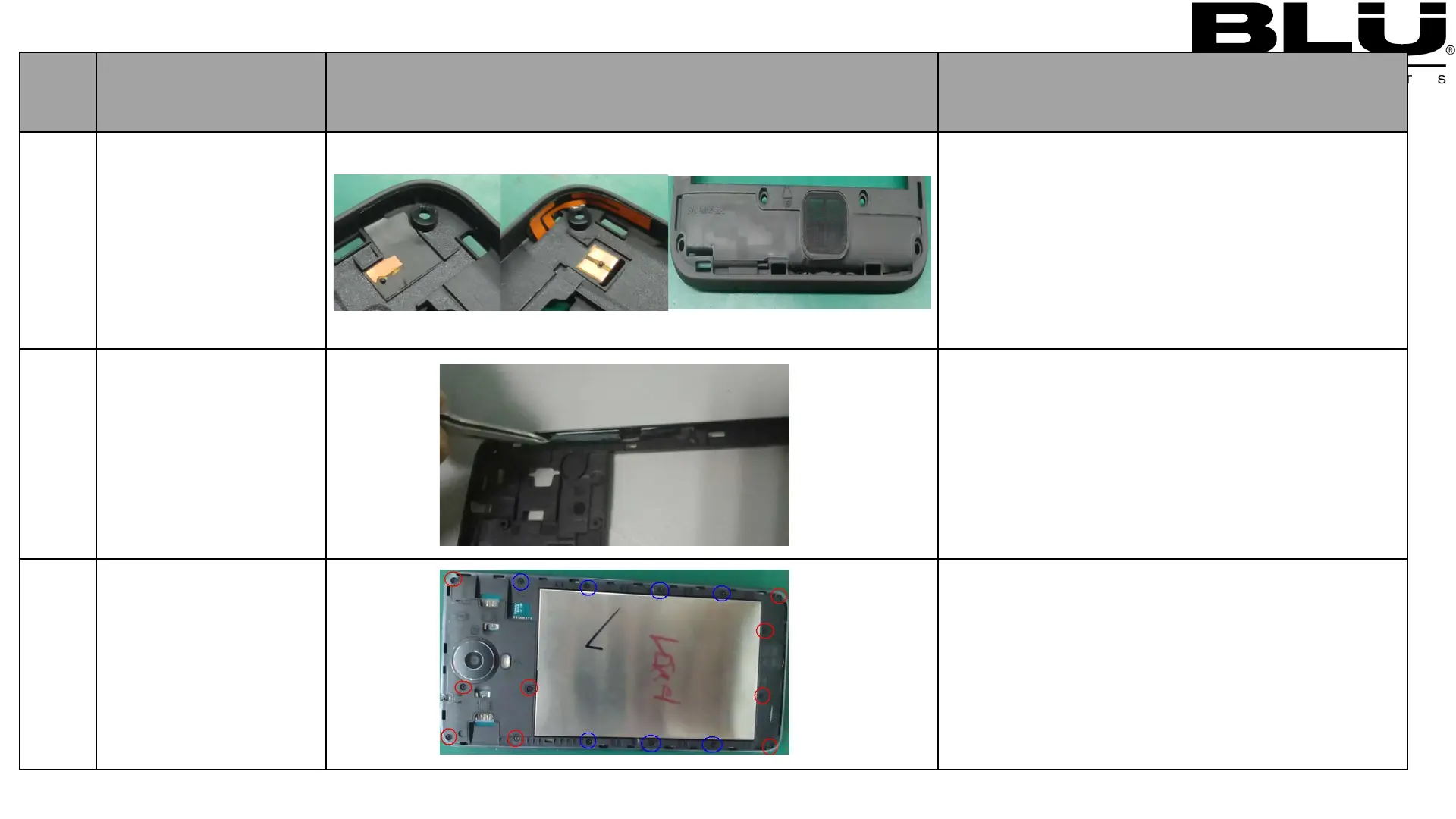

NO.
Operation name
Operation and note
19
Assemble
BT_WIFI_ GPS
antenna
，main
antenna
，and
div antenna
1：Assemble BT_WIFI_GPS antenna，
main antenna and div antenna into the B
shell
2：Fixed column
20
Assemble
side key
component
1：Assemble side key component into the
B shell
2：Both sides of the side button in the
back shell bone position
21
Assemble
B shell
component
1：Assemble B shell component
2：1.Fist assemble 16 screws at marked
position;
3：there are two kinds of screws that have
been marked with red and blue circle
separately
