PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly (not included): 11/16 in. Open Wrench or Adjustable Wrench.

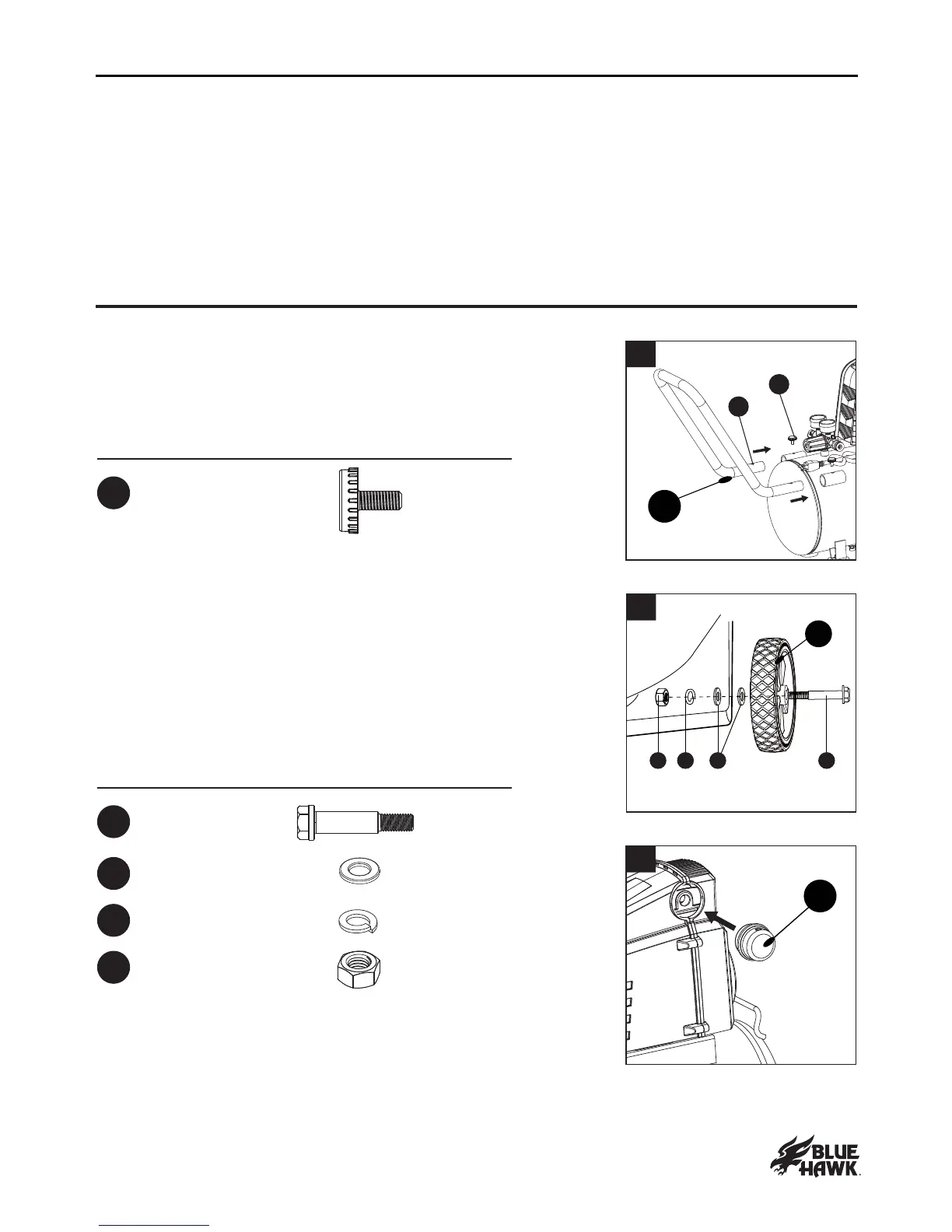

ASSEMBLY INSTRUCTIONS
Hardware Used
1. Removable handle assembly

holes (K1) with the holes on the sleeve.

1
M6 × 17 Screw
x 2
AA
AA
Hardware Used
2. Wheel assembly

slide on washer (CC).

tank assembly. Slide on washer (CC), spring washer (DD)
and tighten the nut (EE). Repeat this step for the second wheel.

of the wheels. Periodically check to ensure that wheel and the
hardware is secure.
3. Air filter assembly

M10 Bolt
x 2
BB
Ø10 Washer
x 4
CC
Ø10 Spring Washer
x 2
DD
M10 Nut
x 2
EE
