blue photon BlueCure Mini - Structure and Functions; Controller Front Panel; Controller Back Panel; UV LED Head

www.BluePhotonGrip.com • 855-777-2040
4
®
User Guide
1.3 UV LED Head

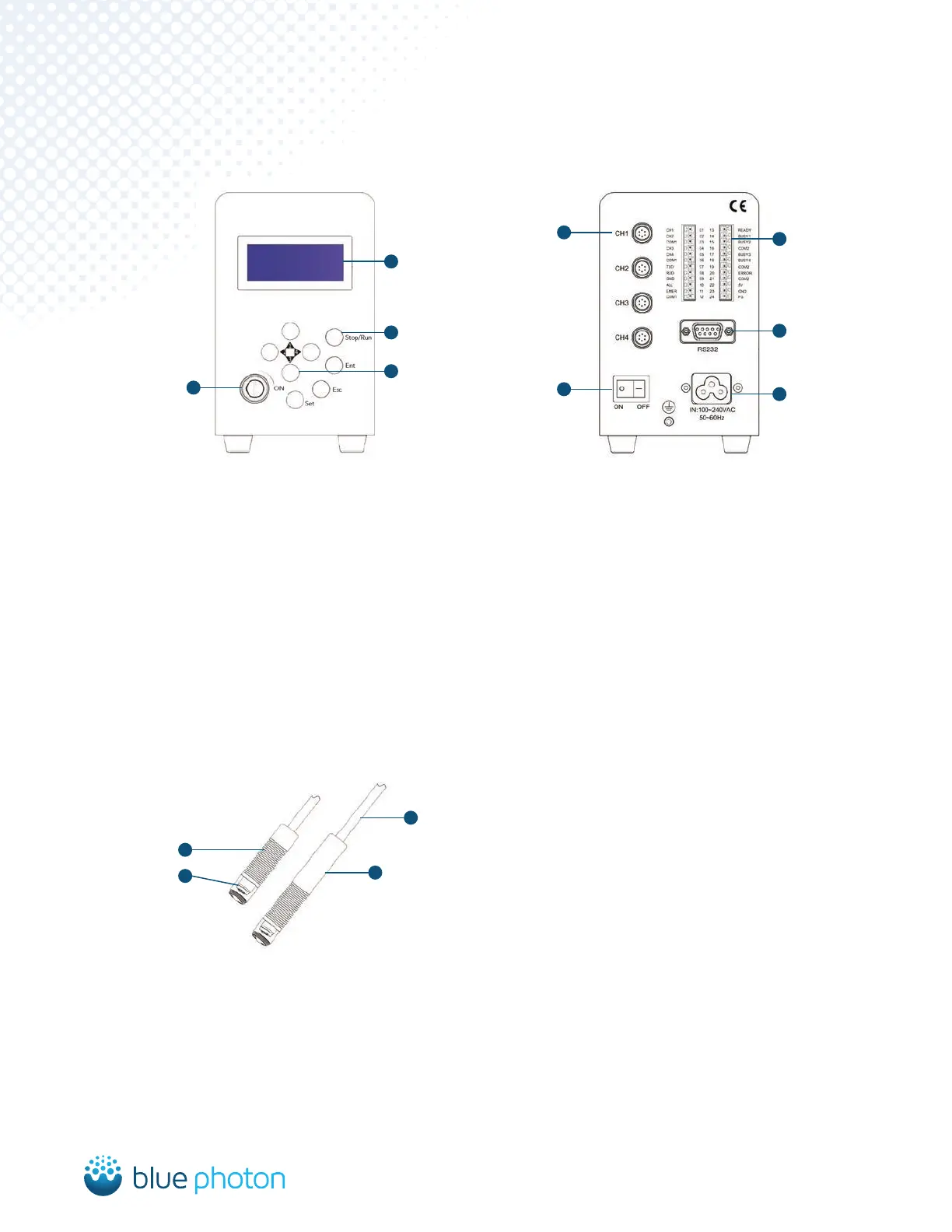

Structure and Functions
1.1 Controller Front Panel 1.2 Controller Back Panel
Front Panel
No. Modules Functions
1. LCD Display Running Parameters
2. Set / Esc / Ent /
Stop / Run
Setting Buttons
3. Arrow Buttons Setting Buttons and UV LED Head
Control Buttons
4. Key Switch Turn On the Switch Before Setting
Turn Off the Switch After Setting
No. Modules Functions
1. UV LED UV Light Source
2. UV LED Head Air Cooling Type
3. Extended Head Extension
4. Flexible Cable 2 M Cable Length
Back Panel
No. Modules Functions
5. UV Output
Channels
Connect the UV LED Heads
6. Power Switch Turn On / Off the Controller
7. Signal Ports Input and Output Signal
8. RS232 Input and Output Signal
9. A/C Input Socket Power Input: 100~240V AC
50~60Hz
1
7
8
9
2
3
4
3
4
2
1
6
5
