3.2 External Signal Connections

Output Specications:

• Output Capacity: 10mA.

• Rated Load Voltage: DC 5~24V.

• Maximum Load Current: 10mA (for each output).

• When using the internal 5V power, the maximum load current should be less than 100mA.

• Maximum Voltage Drop: below 0.9V at “ON” status.

3.3 RS232 Ports

DSUB Connector 9 Pin

Pin No. Signal Port Abbreviation

1. Not Connected —

2. Send Data SD

3. Receive Data RD

4. Not Connected —

5. Signal Grounded SG

6. Not Connected —

7. Not Connected —

8. Not Connected —

9. Not Connected —

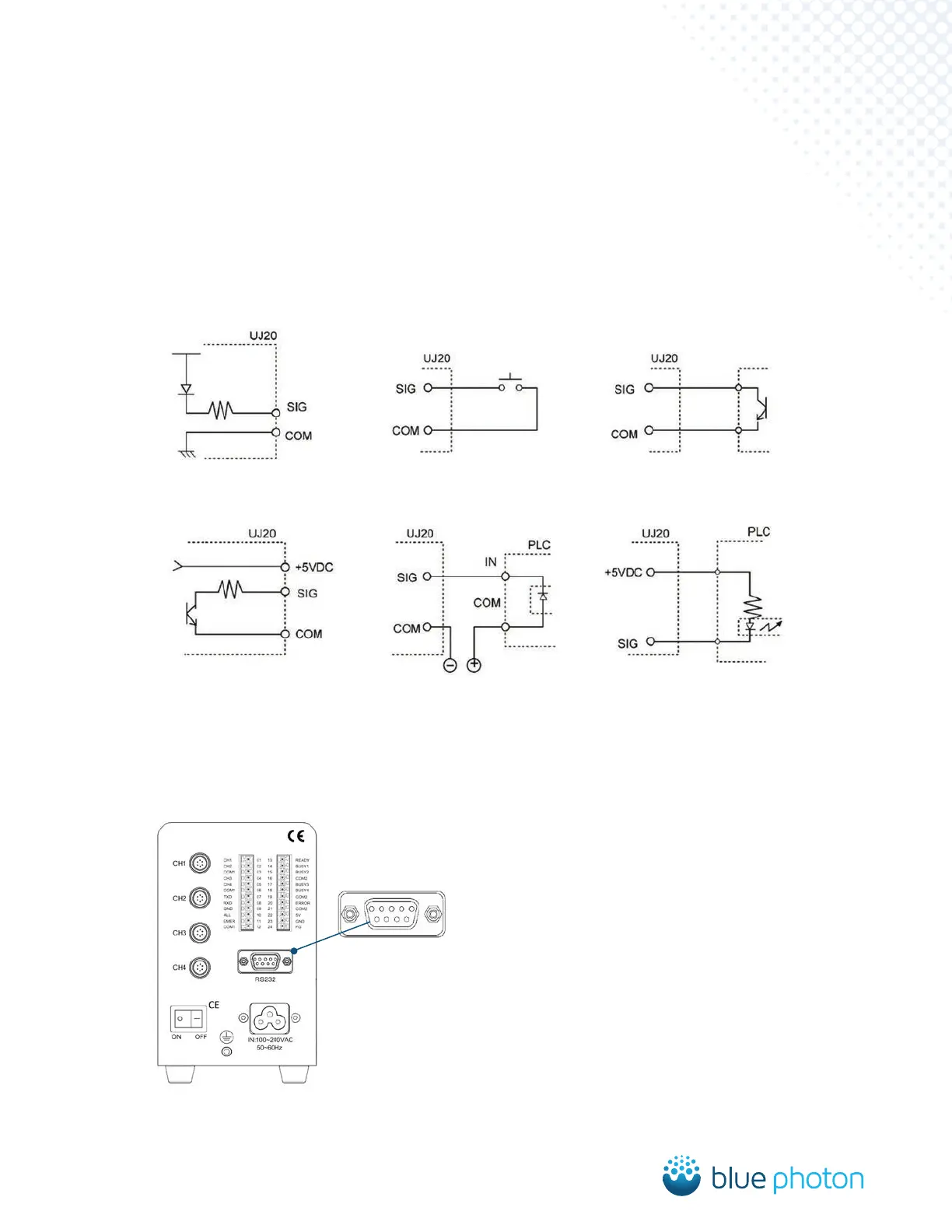

INPUT

No-voltage input from

open collectors or relays.

Rated Voltage: 5~24VDC

Output Capacity: 100mA (max)

Foot Pedal

5~24VDC

PLC Trigger Signal

OUTPUT

CONTACT INPUT

EXTERNAL POWER SUPPLY

NO CONTACT INPUT

INTERNAL POWER SUPPLY

RS232
