5/20/2019 BlueROV2 Heavy Configuration Retrofit Kit Installation - Blue Robotics
https://www.bluerobotics.com/learn/bluerov2-heavy-configuration-retrofit-kit-installation/ 16/28
(/wp-content/uploads/2019/03/heavy-tutorial-15.jpg?x62571)

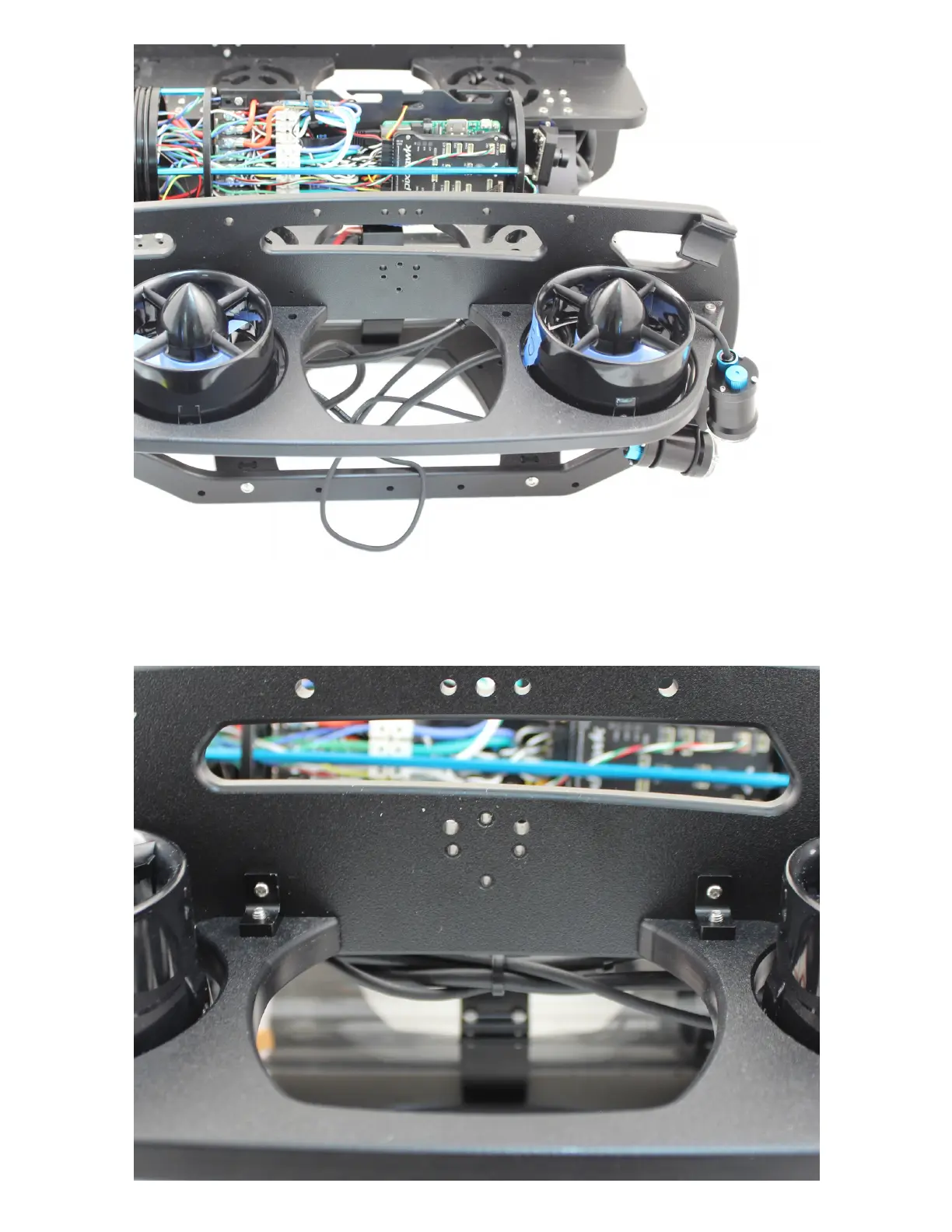

4. Install four more thruster guard mounting brackets (two on each side) in the holes near the middle of the ROV
using one M4x16 screw and one #4×0.5” thread forming screw per bracket.
