Blue Seal Evolution Series Gas Griddles
8.1 GP514 600mm Griddle

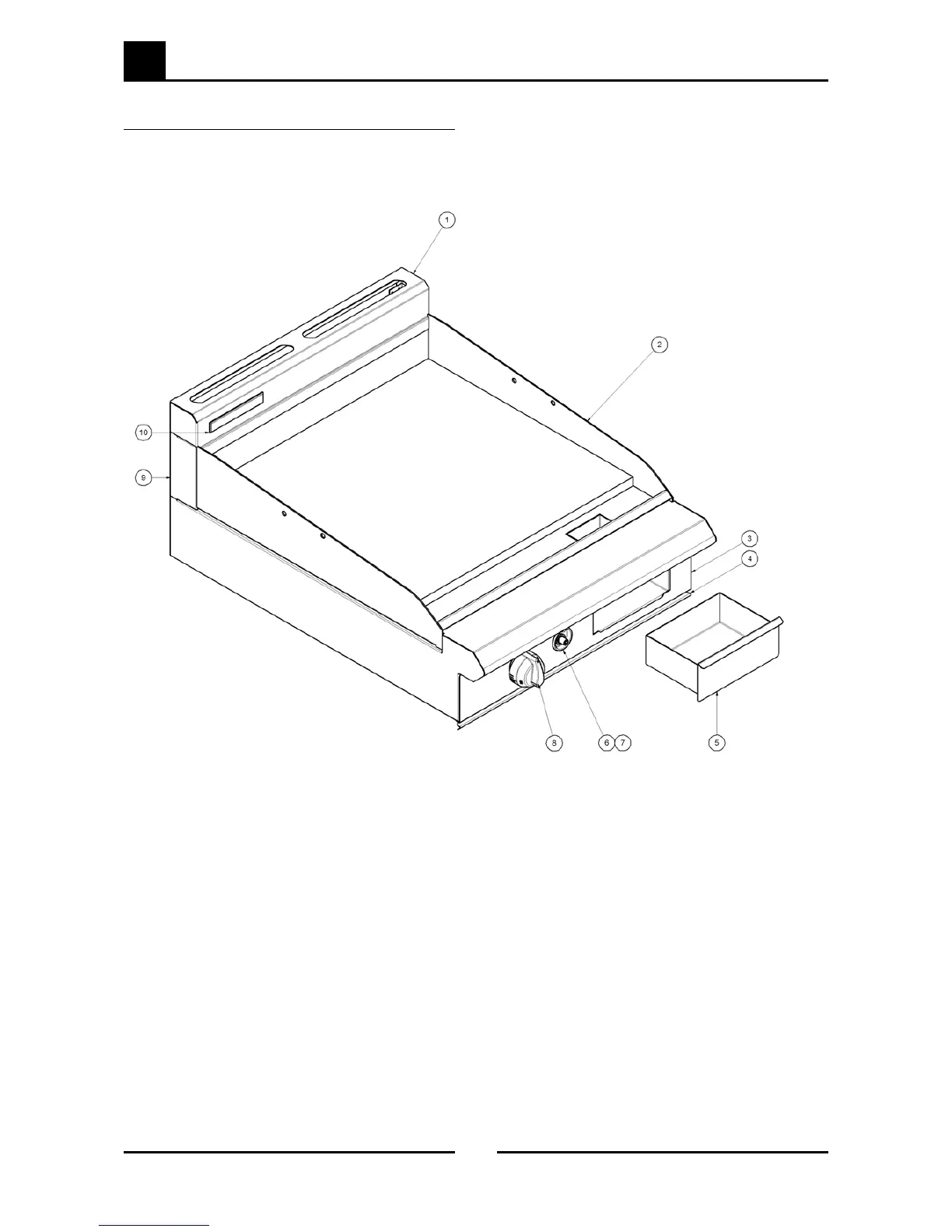

8.1.1 GP514 Main Assembly
Item Part No Description
1 228653 SPLASHBACK BLUE SEAL
2 PGH620 GRIDDLE G 600x20
3 227550 CONTROL PANEL
4 227584 FRONT TRIM BLUE SEAL
5 228400 GREASE DRAWER WA
6 228010 PIEZO HOUSING
7 227508 PIEZO - SIT
8 227380 KNOB BSEAL 8MM 90-300°C
9 228173 SPLASHBACK ENDS
10 227960 BLUE SEAL BADGE
PGH620R3 GRIDDLE G 600x20 RIB300RH
PGH620R6 GRIDDLE G 600x20 RIB600
PGH620C GRIDDLE G 600x20 CHROMED
PGH620R3C GRIDDLE G 600x20 RIB300RH CHROMED
227656 GRIDDLE G 600x20 RIB600 CHROMED
