Blue Seal Evolution GP51 - 8 Exploded Parts Diagrams

8
Exploded Parts Diagrams
25
© Moffat Ltd, January 2007
Revision 1/
Blue Seal Evolution Series Gas Griddles
Item Part No Description
11 227444 GRIDDLE BURNER
12 228625 SUPPLY PIPE
13 228522 EUROSIT MANIFOLD PIPE LH
14 032360 INJECTOR 3.60mm (NAT GAS)
032340 INJECTOR 3.40mm (UK NAT GAS)
032210 INJECTOR 2.10mm (LPG/PROPANE)
15 228393 EUROSIT KNOB ADAPTOR
16 230132 EUROSIT GAS THERMOSTAT 80-320°
17 024156 FLEXTUBE DORMONT T6X12
18 019624 ELECTRODE
19 019464K PILOT BURNER KIT
20 228047 HT LEAD 250mm
21 229407 GRIDDLE OVERTEMP 365°
22 018097 PILOT SIT 100 SERIES OLIVE NUT 16mm
23 230319 FLEXTUBE 12"x1/4 OD ST/ST
24 019593 PILOT SPUD 0.41mm (NAT GAS)
25 019218 THERMOCOUPLE 450MM
019594 PILOT SPUD 0.25mm (LPG / PROPANE)

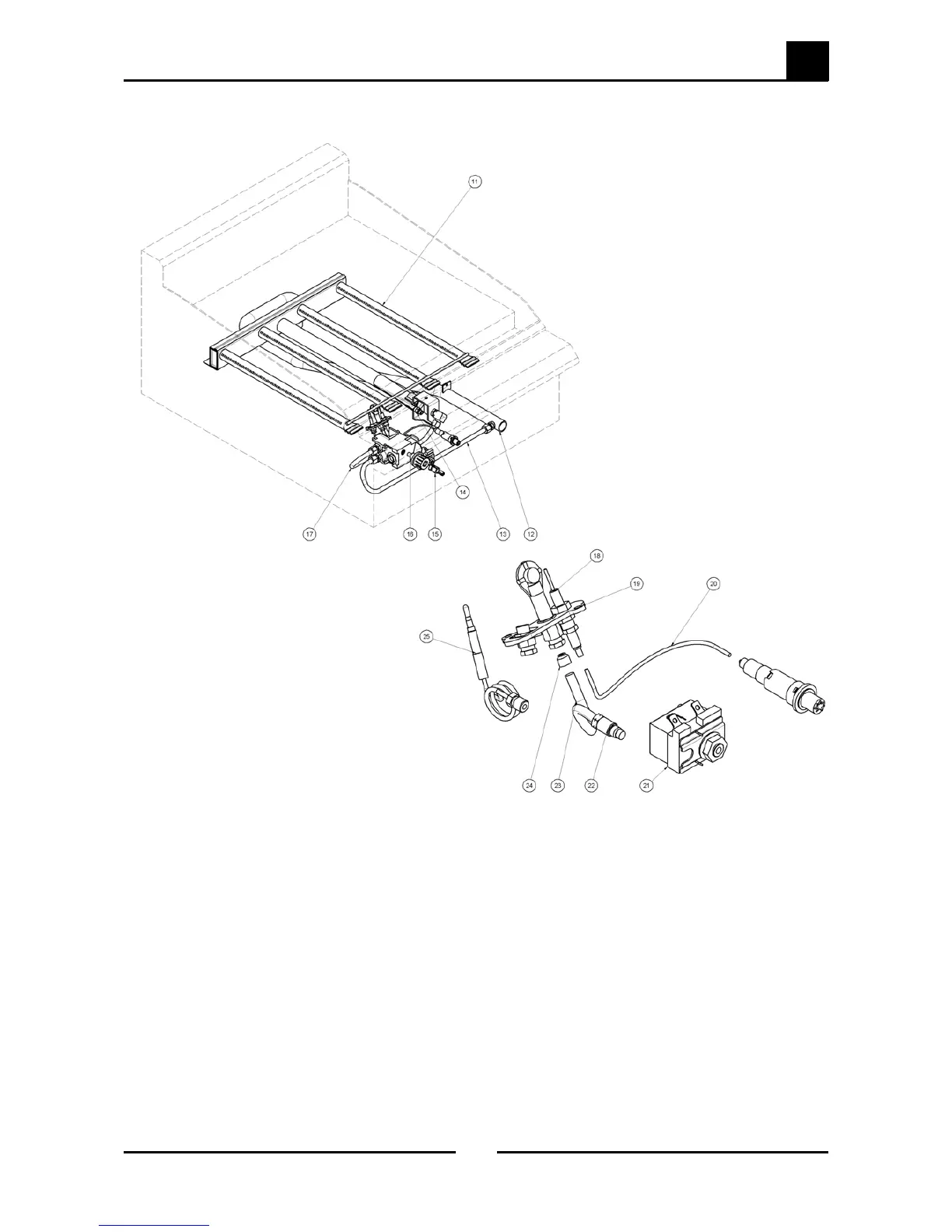

8.1.2 GP514 Gas Assembly
