Blue Seal Evolution Series Gas Griddles
8.2 GP516 900mm Griddle

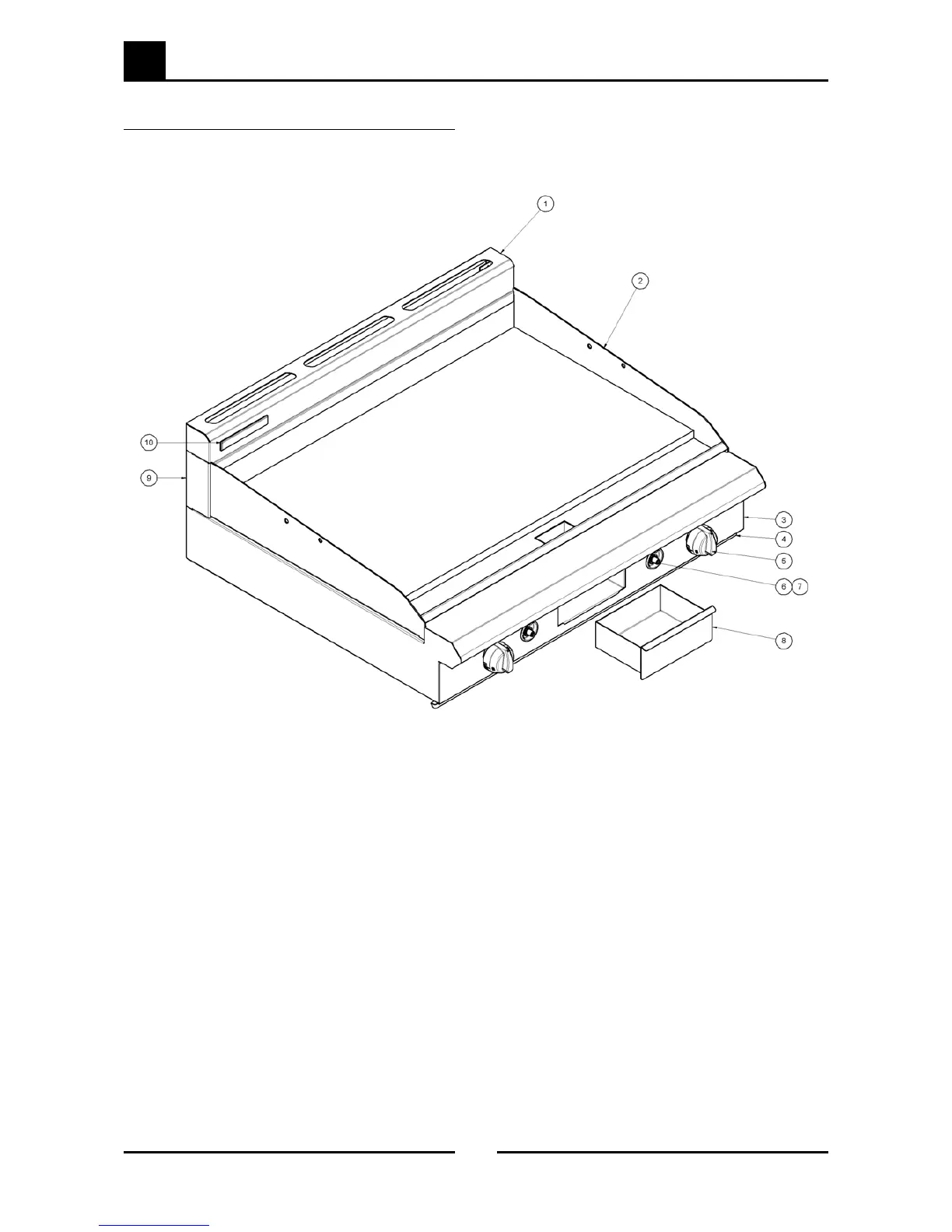

8.2.1 GP516 Main Assembly
Item Part No Description
1 228656 SPLASHBACK BLUE SEAL
2 PGH920 GRIDDLE G 900X20
PGH920R3 GRIDDLE G 900x20 RIB300RH
PGH920R5 GRIDDLE G 900x20 RIB450RH
PGH920R9 GRIDDLE G 900x20 RIB900
PGH920C GRIDDLE G 900X20 CHROMED
PGH920R3C GRIDDLE G 900x20 RIB300RH CHROMED
PGH920R9C GRIDDLE G 900x20 RIB900 CHROMED
3 227549 CONTROL PANEL
4 227580 FRONT TRIM BLUE SEAL
5 227380 KNOB BSEAL 8MM 90-300°C
6 227508 PIEZO - SIT
7 228010 PIEZO HOUSING
8 228400 GREASE DRAWER WA
9 228173 SPLASHBACK ENDS
10 227960 BLUE SEAL BADGE
