8
Exploded Parts Diagrams
28
© Moffat Ltd, January 2007
Revision 1/
Blue Seal Evolution Series Gas Griddles
8.3 GP518 1200mm Griddle

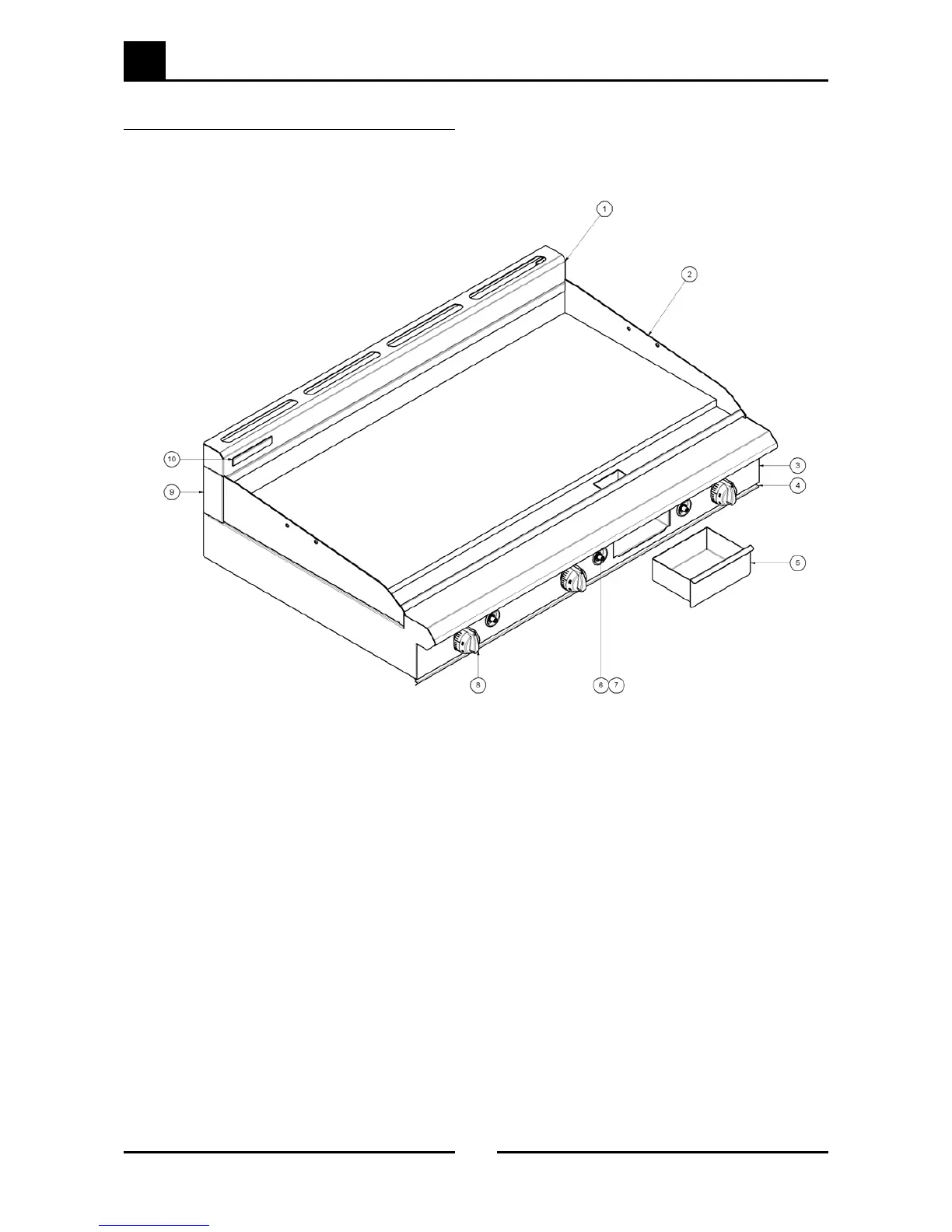

8.3.1 GP518 Main Assembly
Item Part No Description
1 228925 SPLASHBACK 1200 BLUE SEAL WA
2 PGH1220 GRIDDLE G 1200X20
PGH1220R4 GRIDDLE G 1200x20 RIB400RH
PGH1220R6 GRIDDLE G 1200x20 RIB600RH
PGH1220R12 GRIDDLE G 1200x20 RIB1200
PGH1220C GRIDDLE G 1200X20 CHROMED
PGH1220R4C GRIDDLE G 1200x20 RIB400RH CHROMED
3 227548 CONTROL PANEL
4 227581 FRONT TRIM BLUE SEAL
5 228400 GREASE DRAWER WA
6 227508 PIEZO - SIT
7 228010 PIEZO HOUSING
8 227381 KNOB BSEAL 8MM 100-290°C
9 228173 SPLASHBACK ENDS
10 227960 BLUE SEAL BADGE
