Blue Wave FlowXtreme NE4487 - Page 13

Page 13
Key Part Name Qty Manf. No. B.W. No. For Model#
1 W
Transparent Hair & Lint Strainer
ater Pump/ Motor 1 SPS1A250, 450,550
NE4523,
NEP4268-
NEP4269
NE4523, NEP4268- NEP4269
2
P00131
NEP4245
All
3 1 1/4"- 1 1/2" Hose Connector 2 P00132 NEP4246 All
4 O-ring "A"- 2 1/4" 1 P00182 NEP4265 All
5 O-ring "B"- 3" 1 P00183 NEP4266 All
6 O-ring "C"- 1.5" 1 P00184 NEP4267 All
7 Strainer Collar 1 P00133 NEP4247 All
8 Strainer Basket 1 P00134 NEP4248 All
9 Pump Drain Cap 1 P00135 NEP4249 All
10 Drain Valve O-ring 1 P00136 NEP4250 All
11 Motor Pump Seal 1 P00137 NEP4251 NE4523
11 Motor Pump Seal 1 P00138 NEP4252 NEP4268
11 Motor Pump Seal 1
P00138 NEP4252 NEP4269
12 Impeller Assembly 1 P00139 NEP4253 NE4523
12 Impeller Assembly 1 P00140 NEP4254 NEP4268
12 Impeller Assembly 1 P00140 NEP4254 NEP4269
13 Shaft Seal & Spring Assbly 1 P
00141 NEP4255 NE4523
13 Shaft Seal & Spring Assbly 1 P00142 NEP4256 NEP4268
13 Shaft Seal & Spring Assbly 1 P00142 NEP4257 NEP4269

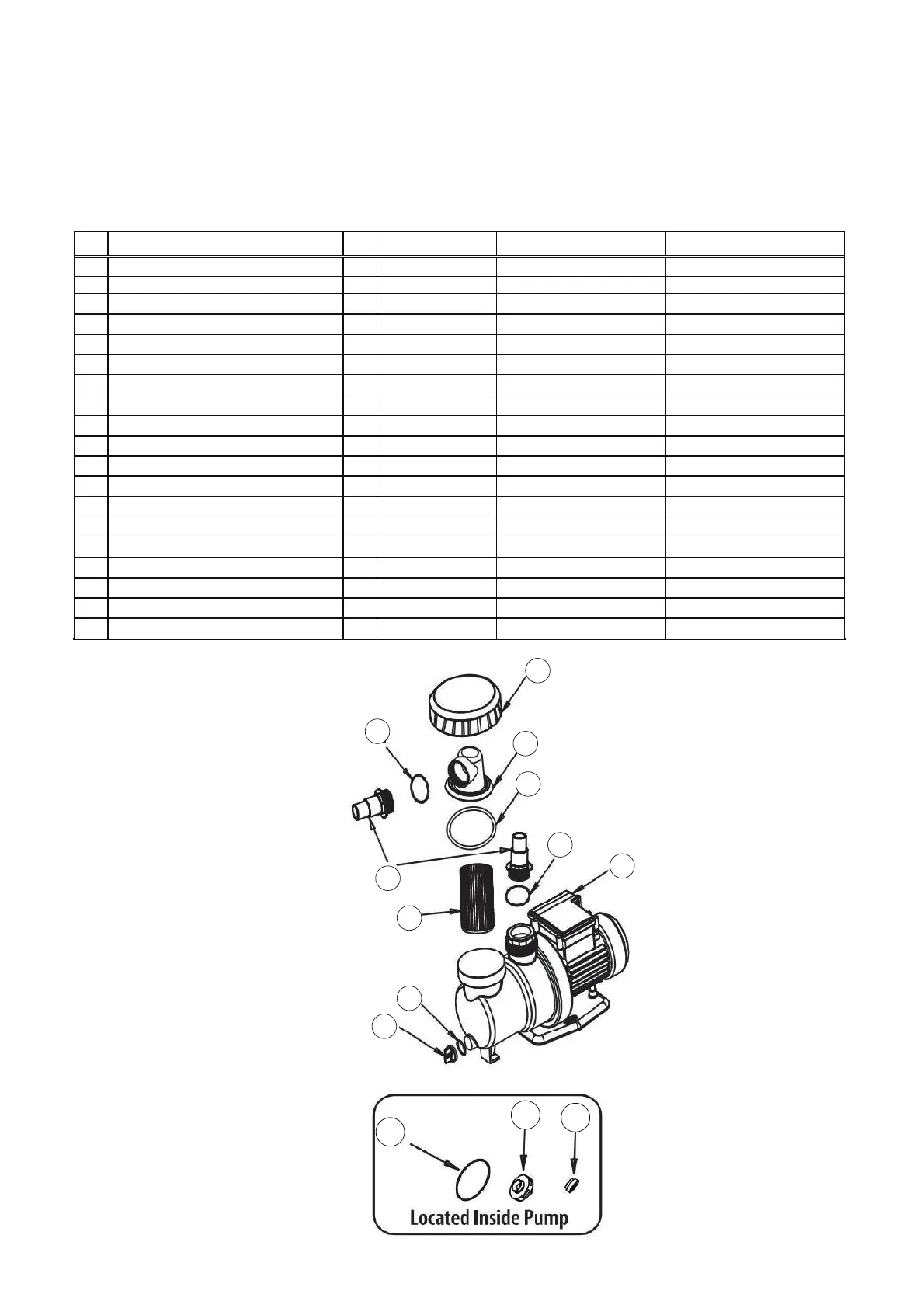

FX PRIME SINGLE SPEED NE4523, NEP4268, NEP4269
PUMP SERIES PARTS BREAKDOWN
1
10
9
7
8
6
5
4
2
3
13
12
11
U.
