Blue Wave FlowXtreme NE4487 - Page 16

Page 16
Key Key Part Name Qty M anf. No. B.W. No.
1 WATER PUMP 1 SPS31600 NEP4272
2
VALUE BODY
1
3029S3
NEP4128
3
CONNECTOR O-RING
1
3030S3
NEP4129
4
PUMP CONNECTOR
3031S3
NEP4130
5
PUMP CONNECTOR NUT
2
2
3032S3
NEP4131
6
STRAINER BASKET
1
3033S3
NEP4132
7
-SEALING RING
1
3034S3
NEP4133
8
TRANSPARENT COVER
1
3035S3
NEP4134
9
CIRCUMGYRATE COVER
1
3036S3
NEP4135
10
DRAIN VALVE O-RING
2
3037S3
NEP4136
11
PUMP DRAIN VALVE
2
3038S3
NEP4137
12
TRANSPARENT COVER CLOSING
TOOL
1
3039S3
2
1
2
7
8
9
10
11
12
3
6
4
5

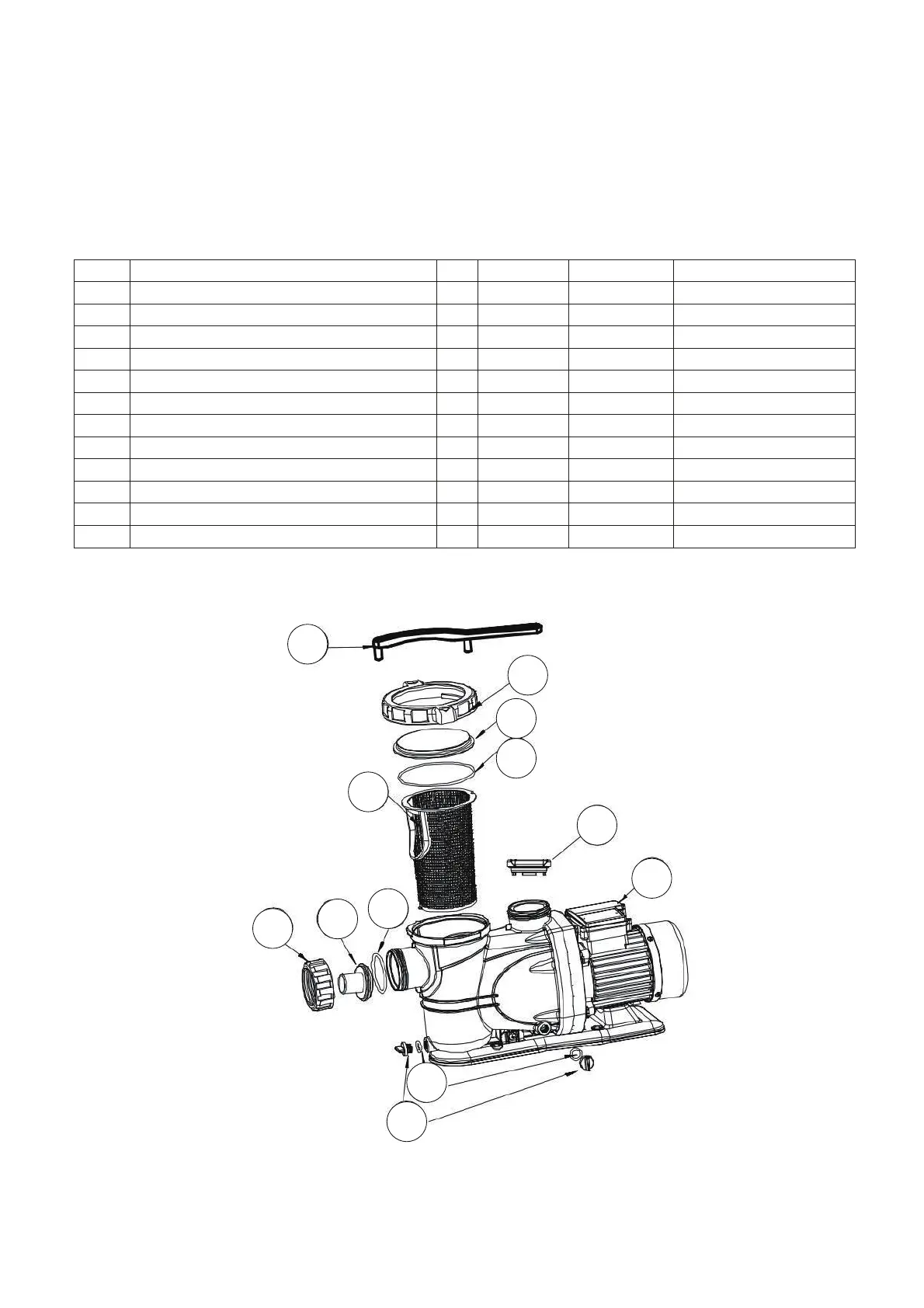

W. FX PRIME SINGLE SPEED NE4524, NEP4271 PUMP
SERIES PARTS BREAKDOWN
For Model#
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
NE4524 & NEP4271
O
