Blue Wave NE145 - Parts List; NE145 Base Kit Components; NE146 Base Kit Components; NE147 Base Kit Components

ASSEMBLY INSTRUCTIONS
5/20
3
For replacement parts please call 800-759-0977.
ABOVE GROUND POOL FENCE - NE145 / NE146 / NE147

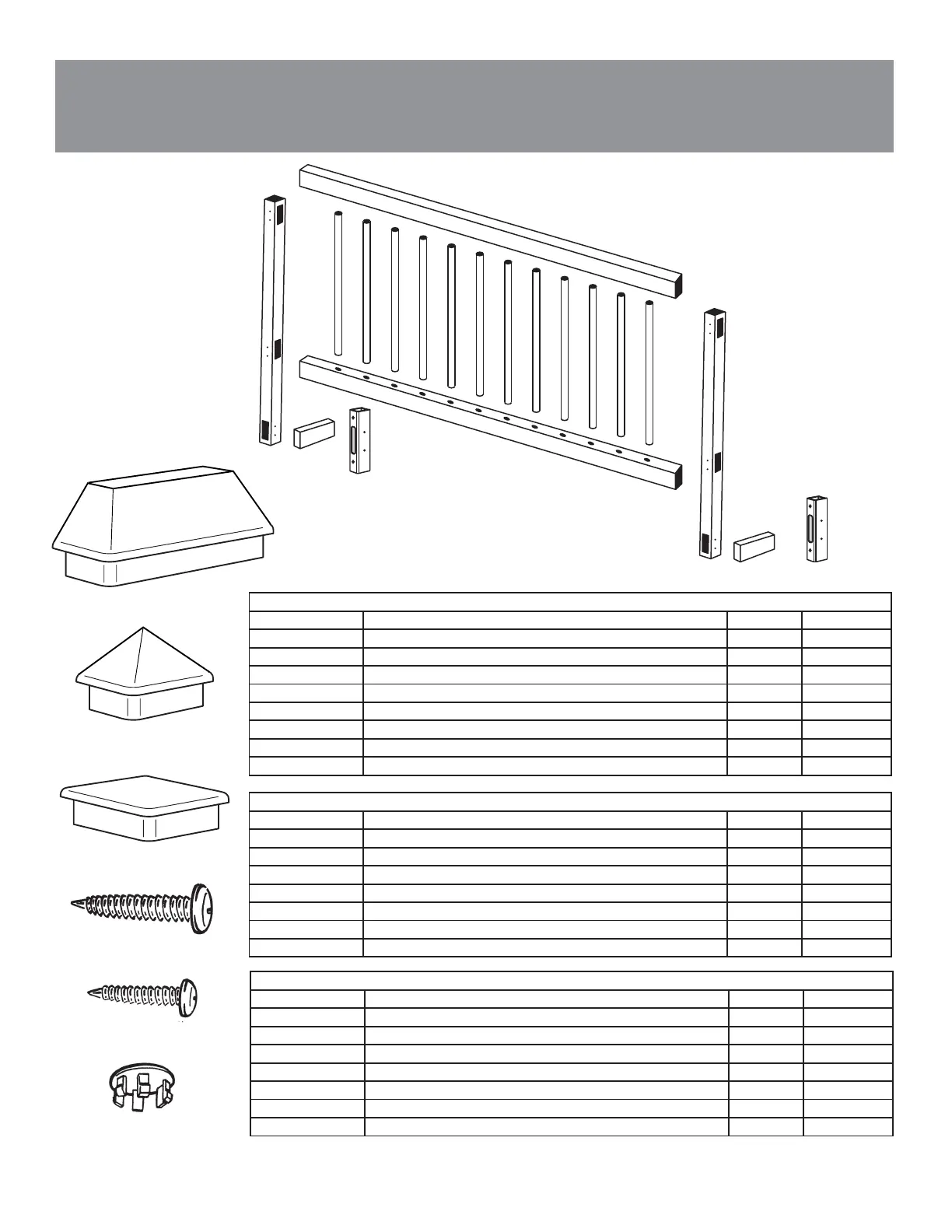

Parts List
D
E
B
A
C
NE145 BASE KIT “A” - 8 SECTIONS:
ITEM DESCRIPTION QUANTITY
End-Posts 2
A Support Assembly - Base 9
B Support Assembly - Support 9
C Posts 7
D Rail 16
E Spindles 96
Trim Kit (1) Post Cap, (1) Base Support Cap, (1) Support Cap, (2) Hole Plugs 9 bags
Hardware Kit (18) #12 X 1” Screws, (136) #8 X 3/4” Screws 1 bag
NE146 BASE KIT “B” - 3 SECTIONS:
ITEM DESCRIPTION QUANTITY
A Support Assembly - Base 3
B Support Assembly - Support 3
C Posts 3
D Rail 6
E Spindles 36
Trim Kit (1) Post Cap, (1) Base Support Cap, (1) Support Cap, (2) Hole Plugs 3 bags
Add-on Hardware Kit (2) #12 X 1” Screws, (16) #8 X 3/4” Screws 3 bags
NE147 BASE KIT “C” - 2 SECTIONS:
ITEM
DESCRIPTION QUANTITY
A Support Assembly - Base 2
B Support Assembly - Support 2
C Posts 2
D Rail 4
E Spindles 24
Trim Kit (1) Post Cap, (1) Base Support Cap, (1) Support Cap, (2) Hole Plugs 2 bags
Add-on Hardware Kit (2) #12 X 1” Screws, (16) #8 X 3/4” Screws 2 bags
PART NO.
PART NO.
PART NO.
NEP2700
NEP2701
NEP2702
NEP2703
NEP2704
NEP2705
NEP2706
NEP2709
NEP2701
NEP2702
NEP2703
NEP2704
NEP2705
NEP2706
NEP2710
NEP2701
NEP2702
NEP2703
NEP2704
NEP2705
NEP2706
NEP2710
SUPPORT CAP
BASE SUPPORT CAP
POST CAP
#12 X 1” SCREW
#8 X 3/4” SCREW
HOLE PLUG
