blueberry PLUS R2 Installation Manual 3.0 26

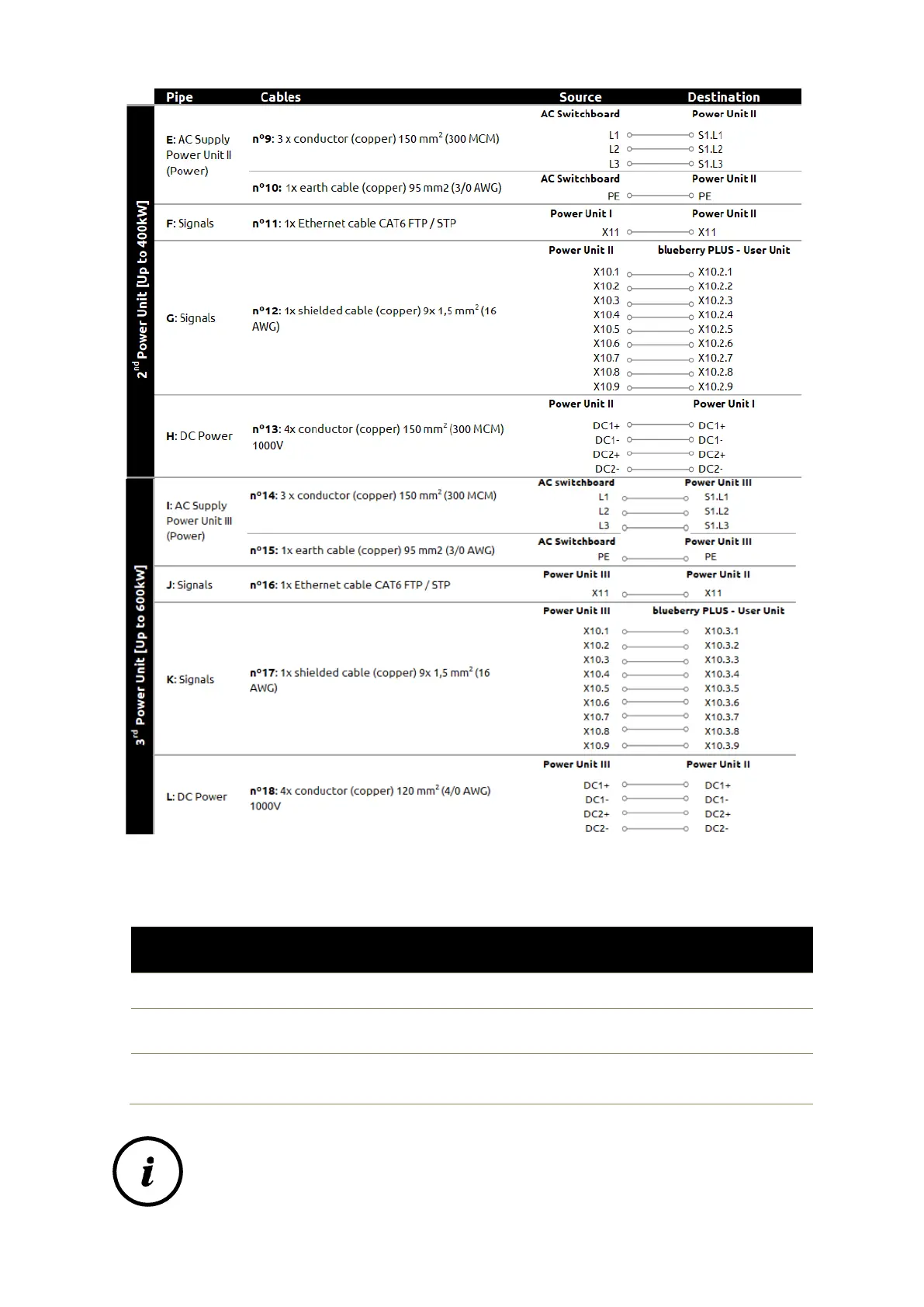

If the equipment has outputs with currents below 300A and it is not relevant for the customer a
future proof installation, then consult the table below with the minimum cross section per output:
ID configuration
Output current
Minimum cross section per output
Positive + Negative
1
125A
50mm
2
(1/0 AWG) + 50mm
2
(1/0 AWG)
2
250A
70mm
2
(4/0 AWG) + 70mm
2
(4/0 AWG)
3
300A up to 500A
Future proof solution
150mm
2
(300 MCM) + 150mm
2
(300 MCM)
PLEASE NOTE!
The cable needs above are per output.
Depending on the cable characteristics, the nominal current may differ for the same cross
section. Please make sure that the chosen cable complies with the output current
specified on the table above.
